Disassembly And Assembly: Axle: Notes
WARNING: This page is about a different car, the 2006 Ford Pickup, 2006 Ford F550 Super Duty, 2006 Ford F450 Super Duty, and 2006 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL(S)
| C-Frame and Screw 211-023 (T74P-3044-A1) |
|
| Dial Indicator Gauge with Holding Fixture 100-002 (TOOL-4201-C) or equivalent |
|
| Dial Indicator Gauge with Holding Fixture 100-D002 (D78P-4201-B) or equivalent |
|
| Depth Gauge, Drive Pinion 205-S156 (T80T-4020-A) |
|
| Drawbar, Rear Axle 205-098 (T75T-1176-A) |
|
| Gauge, Clutch Housing 308-021 (T75L-4201-A) |
|
| Gauge Tube 205-D033 (D80T-4020-F48) or equivalent |
|
| Handle 205-D055 (D81L-4000-A) or equivalent |
|
| Holding Fixture, Drive Pinion Flange 205-012 (T57T-4851-B) |
|
| Installer, Differential Carrier Bearing 205-D044 (D81T-4221-A) or equivalent |
|
| Installer, Drive Pinion Bearing Cup 205-006 (T56T-4616-B) (Bl for use on outer pinion bearing cup, B2 for use on inner pinion bearing cup) |
|
| Installer, LH Differential Carrier Oil Seal 205-427 |
|
| Installer, Rear Axle Bearing/Oil Seal 205-092 (T75L-1165-DA) |
|
| Installer, RH Differential Carrier Oil Seal 205-426 |
|
| Puller, Drive Pinion/Differential Carrier 205-D036 (D81L-4220-A) or equivalent |
|
| Remover, Bushing 307-001 (TOOL-1175-AC) or equivalent |
|
| Remover, Drive Pinion Flange 205-018 (T65L-4851-B) |
|
| Remover/Installer, Bearing Cup 205-D051 (D81T-4628-A) or equivalent (inner pinion bearing cup remover) |
|
| Remover/Installer, Bearing Cup 205-D054 (D81T-4628-D) or equivalent (outer pinion bearing cup remover) |
|
| Set, Dummy Bearing 205-D047 (D81T-4222-DR) or equivalent |
|
| Slide Hammer 100-001 (T50T-100-A) |
|
| Spreader Bar, Oil Seal 205-428 |
|
| Step Plate 205-D012 (D80L-630-7) or equivalent |
MATERIAL
| Item | Specification |
|---|---|
| Clear Silicone Rubber TA-32 | ESB-M4G92-A |
| High-Temperature 4x4 Front Axle and Wheel Bearing Grease E8TZ-19590-A | ESA-M1C198-A |
| Motorcraft 80W-90 Premium Rear Axle Lubricant XY-80W90-QL (US); CXY-80W90-1L (Canada) (Model 60/70 axles) | WSP-M2C197-A |
| Motorcraft High Contrast Hypoid Gear Marking Compound XG-14 | - |

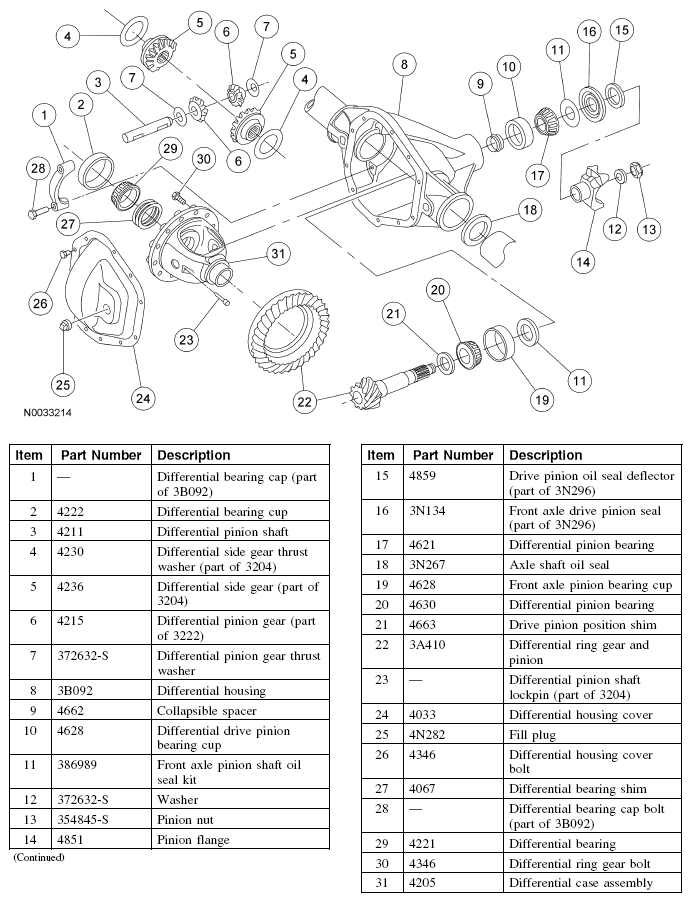

Front Drive Axle, Disassembled View
