Drive Pinion Flange and Drive Pinion Seal: Notes

WARNING: This page is about a different car, the 2006 Ford Pickup and 2006 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL CHART

G04643404
 Holding Fixture, Drive Pinion Flange
205-126 (T78P-4851-A)
G04643405
 Installer, Drive Pinion Flange
205-285 (T88T-4851-A)
G04643406
 Remover, Bushing
307-001 (TOOL-1175-AC)
G04643407
 Slide Hammer
100-001 (T50T-100-A)
G04643408
 2-Jaw Puller
205-D072 (D97T-4221-A) or equivalent
MATERIAL SPECIFICATION

Item Specification
SAE 75W-90 Premium Synthetic Transaxle Lubricant XT-75W90-QGT GL-5

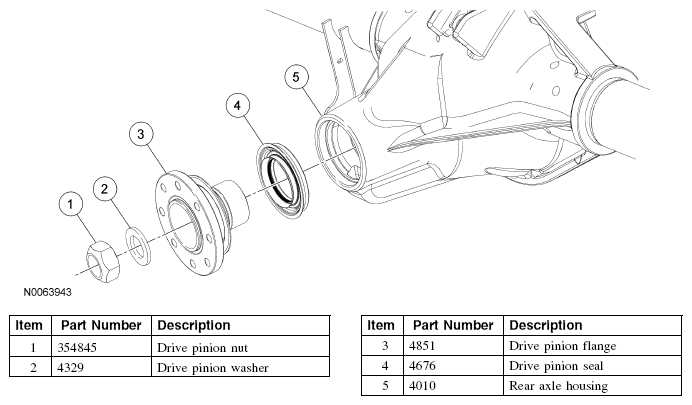

Fig 1: Identifying Drive Pinion Flange And Drive Pinion Seal
G04643409Courtesy of FORD MOTOR CO.
