Rear Disc Brake: Notes

WARNING: This page is about a different car, the 2006 Ford Pickup, 2006 Ford F550 Super Duty, 2006 Ford F450 Super Duty, and 2006 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Single rear wheel brake disc shown, dual rear wheel brake disc similar.

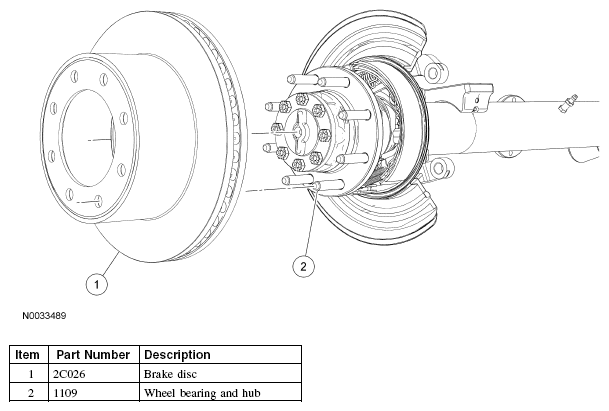

Fig 1: Identifying Brake Disc Components
G04644519Courtesy of FORD MOTOR CO.
