Front Disc Brake: Notes
WARNING: This page is about a different car, the 2006 Ford Pickup, 2006 Ford F550 Super Duty, 2006 Ford F450 Super Duty, and 2006 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATIONS
| Item |
Specification |
| High Temperature Nickel Anti-Seize Lubricant XL-2 |
ESE-M12A4-A |
| Penetrating and Lock Lubricant XL-1 (Canada CXC-51-A) |
- |
| Metal Brake Parts Cleaner PM-4 (Canada CPM-4) |
- |
NOTE:

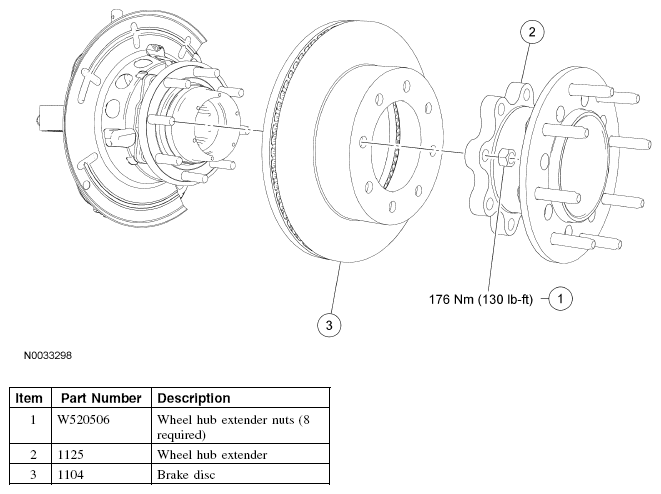

Drivers side shown, passenger side similar.
Courtesy of FORD MOTOR CO.
