Front Disc Brake Shield: Notes

WARNING: This page is about a different car, the 2006 Ford Pickup, 2006 Ford F550 Super Duty, 2006 Ford F450 Super Duty, and 2006 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Rear wheel drive (RWD) vehicle shown, four wheel drive (4WD) vehicle similar.
NOTE: Driver side shown, passenger side similar.

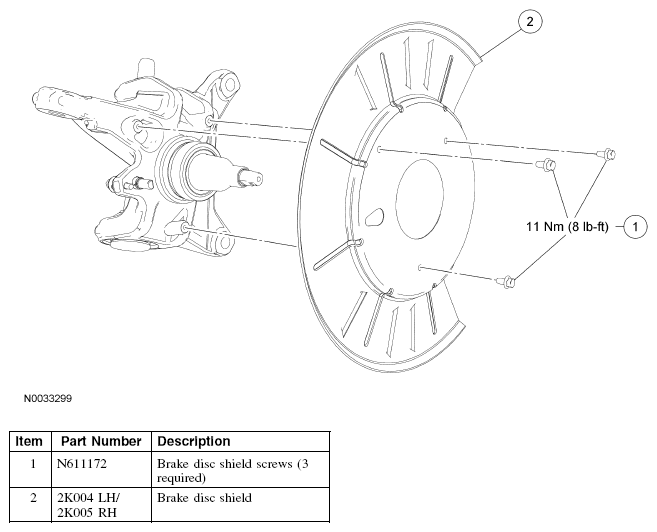

Fig 1: Identifying Brake Disc Shield Components
G04644516Courtesy of FORD MOTOR CO.
