Safety Belt Shoulder Height Adjuster: Notes

WARNING: This page is about a different car, the 2006 Mercury Mariner and 2006 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Passenger side safety belt shoulder height adjuster shown, driver side similar.

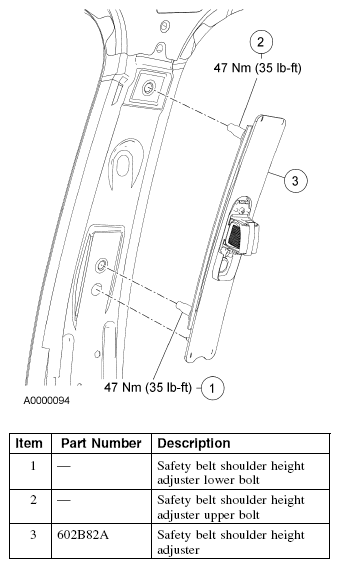

Fig 1: Safety Belt Shoulder Height Adjuster With Torque Specifications
G04622541Courtesy of FORD MOTOR CO.
