Safety Belt Retractor - Rear: Notes

WARNING: This page is about a different car, the 2006 Mercury Mariner and 2006 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL(S) SPECIFICATIONS

G04622535
Torx Bit, Safety Belt Bolt
501-010 (T77L-2100-A)

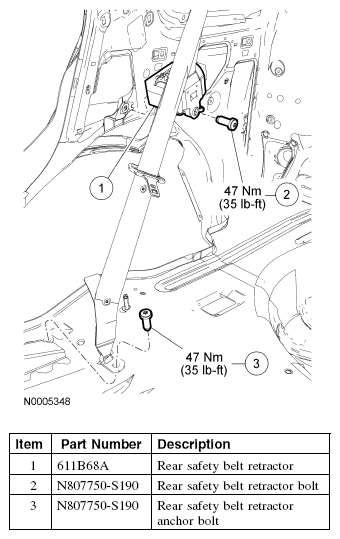

Fig 1: Safety Belt Retractor -- Rear With Torque Specifications
G04622536Courtesy of FORD MOTOR CO.
