Safety Belt Retractor - Front: Notes

WARNING: This page is about a different car, the 2006 Mercury Mariner and 2006 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL(S) SPECIFICATIONS

G04622524
Torx Bit, Safety Belt Bolt
501-010 (T77L-2100-A)
NOTE: Passenger side safety belt retractor shown, driver side similar.

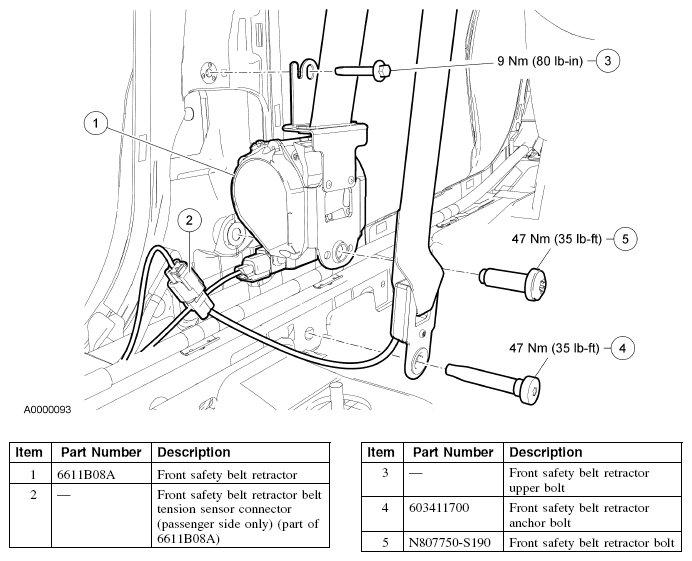

Fig 1: Safety Belt Retractor -- Front With Torque Specifications
G04622525Courtesy of FORD MOTOR CO.
