Fuel Lines: Notes

WARNING: This page is about a different car, the 2006 Mercury Mariner and 2006 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

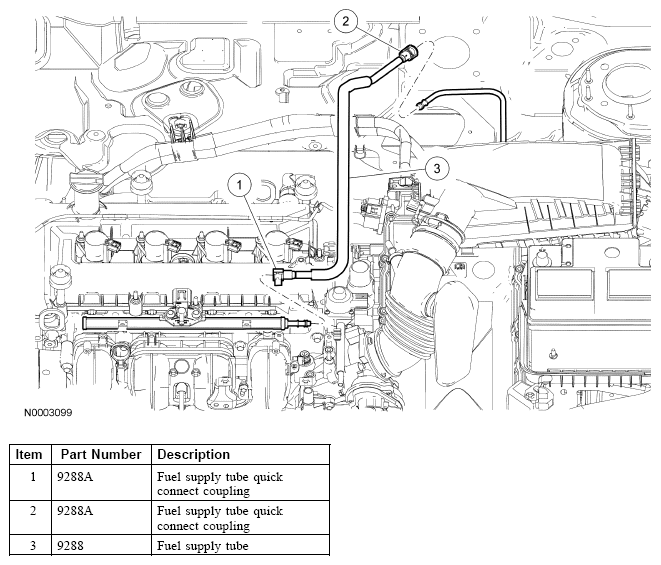

Fig 1: Identifying Fuel Supply Tube Quick Connect Coupling And Fuel Supply Tube

Courtesy of FORD MOTOR CO.

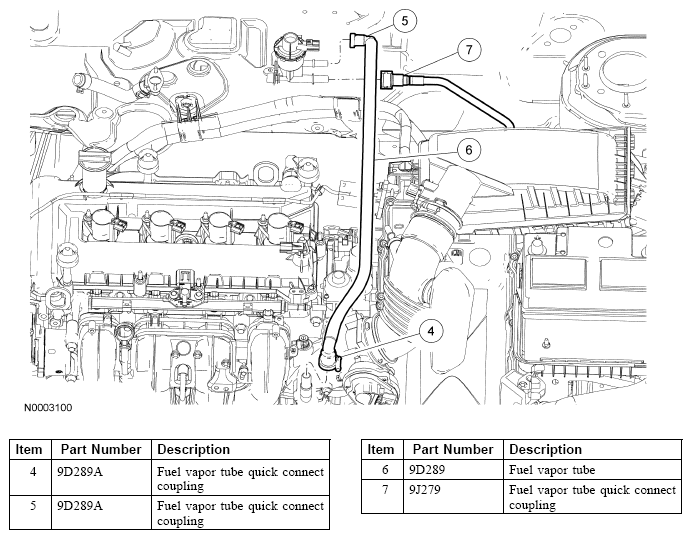

Fig 2: Identifying Fuel Vapor Tube Quick Connect Coupling And Fuel Vapor Tube

Courtesy of FORD MOTOR CO.

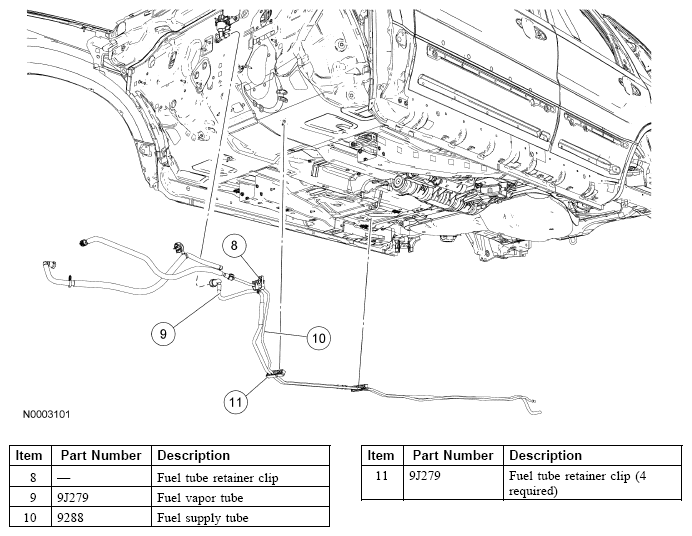

Fig 3: Identifying Fuel Vapor, Supply Tube And Retainer Clip

Courtesy of FORD MOTOR CO.

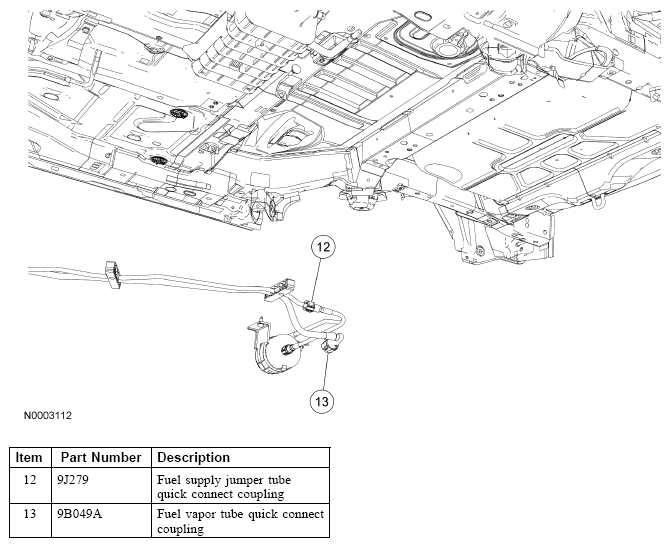

Fig 4: Identifying Fuel Vapor Tube And Fuel Supply Jumper Tube Quick Connect Coupling

Courtesy of FORD MOTOR CO.
