Timing Drive Components: Installation

WARNING: This page is about a different car, the 2006 Mercury Mariner and 2006 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

Install the camshaft sprockets and the bolts. Do not tighten the bolts at this time.

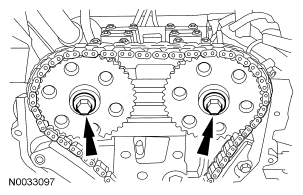

Fig 1: Locating Camshaft Sprocket Bolts
Courtesy of FORD MOTOR CO.
Install the LH timing chain guide and the bolts.
- Tighten to 10 N.m (89 lb-in).

  Fig 2: Identifying Bolts And LH Timing Chain Guide
  Courtesy of FORD MOTOR CO.
Install the timing chain.

Fig 3: View Of Timing Chain
Courtesy of FORD MOTOR CO.
Install the RH timing chain guide.

Fig 4: Locating RH Timing Chain Guide
Courtesy of FORD MOTOR CO.
Install the timing chain tensioner and the bolts. Remove the paper clip to release the piston.
- Tighten to 10 N.m (89 lb-in).

  Fig 5: Locating Timing Chain Tensioner & Bolts
  Courtesy of FORD MOTOR CO.

CAUTION: The special tool 303-465 is for camshaft alignment only. Using this tool to prevent engine rotation can result in engine damage.

Using the flats on the camshafts to prevent camshaft rotation, tighten the bolts.
- Tighten to 72 N.m (53 lb-ft).

  Fig 6: Locating Camshaft Sprockets
  Courtesy of FORD MOTOR CO.
Install the engine front cover. For additional information, refer to ENGINE FRONT COVER .
