Lower End Components - Exploded View

WARNING: This page is about a different car, the 2006 Mercury Mariner and 2006 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

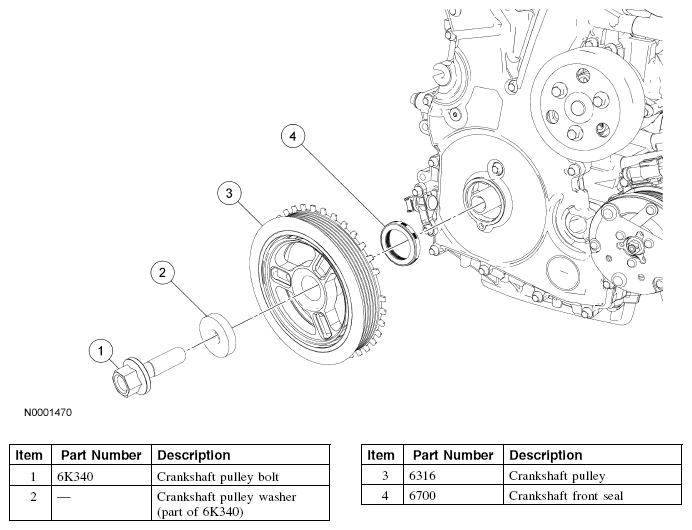

Crankshaft Pulley and Crankshaft Front Oil Seal

Fig 1: Identifying Crankshaft Pulley & Crankshaft Front Oil Seal Components
G04618892Courtesy of FORD MOTOR CO.

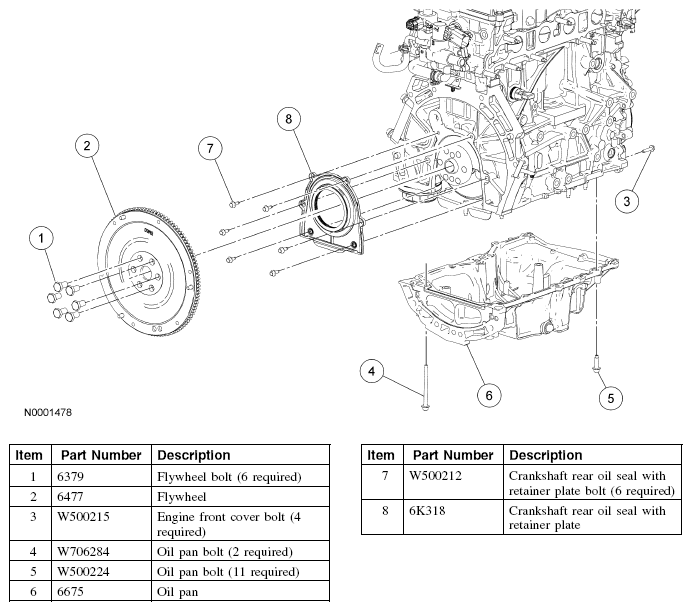

Flywheel and Crankshaft Rear Oil Seal

Fig 2: Identifying Flywheel & Crankshaft Rear Oil Seal Components
G04618893Courtesy of FORD MOTOR CO.
  1. For additional information, refer to the appropriate procedure.
