Removal and Installation

WARNING: This page is about a different car, the 2006 Mercury Mariner and 2006 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
  2. Remove the engine coolant degas bottle. For additional information, refer to REMOVAL AND INSTALLATION .
  3. Remove the DC-to-DC converter. For additional information, refer to REMOVAL AND INSTALLATION .
  4. Install the special tool.
    Fig 1: Installing Special Tool (303-F072)
    G04619016Courtesy of FORD MOTOR CO.
  5. Remove the engine mount bracket bolt.
    • To install, tighten to 90 N.m (66 lb-ft).
  6. Use the special tool to raise the engine 25 mm (0.98 in.).

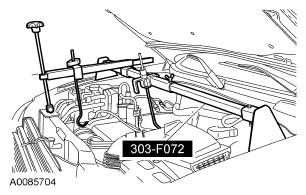

    Fig 2: Using Special Tool (303-F072) To Raise Engine
    G04619017Courtesy of FORD MOTOR CO.
  7. Remove the 3 nuts and the engine mount bracket.
    • To install, tighten to 90 N.m (66 lb-ft).
  8. Remove the A/C tube bracket nut.
    • To install, tighten to 10 N.m (89 lb-in).
  9. Rotate the A/C tube brackets off of the studs.
    • Reposition the A/C tubes to access the engine mount bolt.
  10. Remove the 3 bolts and the engine mount.
    • To install, tighten to 48 N.m (35 lb-ft).
  11. To install, reverse the removal procedure.
