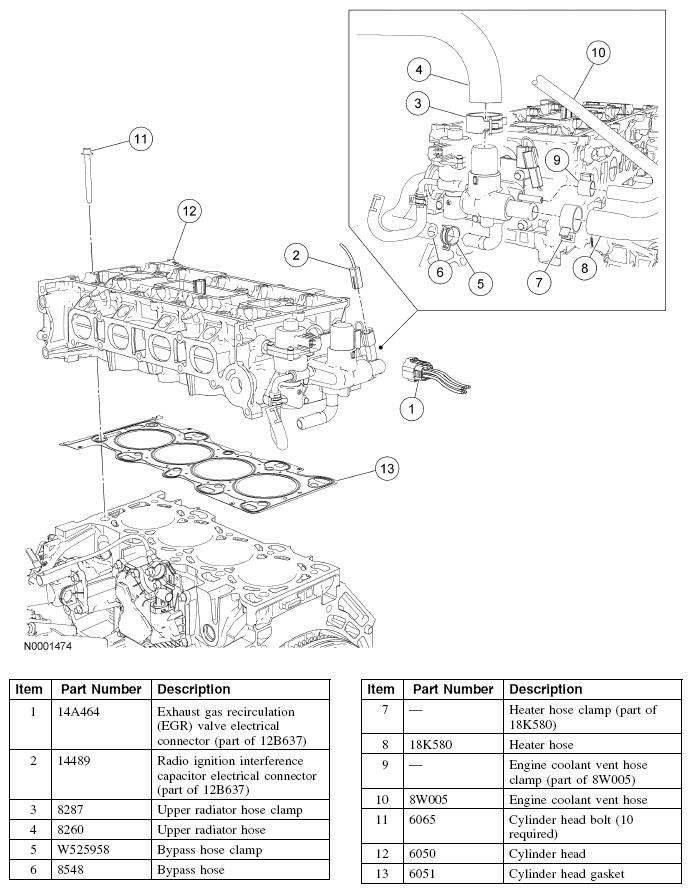

Cylinder Head: Notes
WARNING: This page is about a different car, the 2006 Mercury Mariner and 2006 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL(S)
| Alignment Plate, Camshaft 303-465 (T94P-6256-CH) |
MATERIALS
| Item | Specification |
|---|---|
| Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (US); Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 (Canada); or equivalent |
WSS-M2C930-A |
| Silicone Gasket Remover ZC-30 |
- |
| Motorcraft Metal Surface Prep ZC-31 |
- |
| Silicone Gasket and Sealant TA-30 |
WSE-M4G323-A4 |
