Removal and Installation

WARNING: This page is about a different car, the 2006 Mercury Mariner and 2006 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  2. Lower the glove compartment.
    • Press the glove compartment release tabs inward while pulling downward on the glove compartment.
    Fig 1: Locating Glove Compartment Release Tabs
    G04622366Courtesy of FORD MOTOR CO.
  3. Disconnect the temperature control cable from the blend door shaft.
    • Using the special tool, align the locator holes.
    • Release the locking tab.
    • Disconnect the temperature control cable.

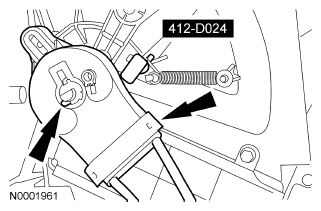

    Fig 2: Disconnecting Temperature Control Cable From Blend Door Shaft
    G04622367Courtesy of FORD MOTOR CO.
  4. Remove the instrument panel center finish panel.
    • Disconnect the electrical connectors.
    Fig 3: Locating Instrument Panel Center Finish Panel
    G04622368Courtesy of FORD MOTOR CO.
  5. To install, reverse the removal procedure.
