Halfshaft Seal: Notes

WARNING: This page is about a different car, the 2006 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL

G04620945Courtesy of FORD MOTOR CO.
Bearing Cup Remover
308-047 (T77F-1102-A)
G04620946Courtesy of FORD MOTOR CO.
Installer, Output Shaft Seal
308-579 or equivalent
G04620947Courtesy of FORD MOTOR CO.
Slide Hammer
100-001 (T50T-100-A)

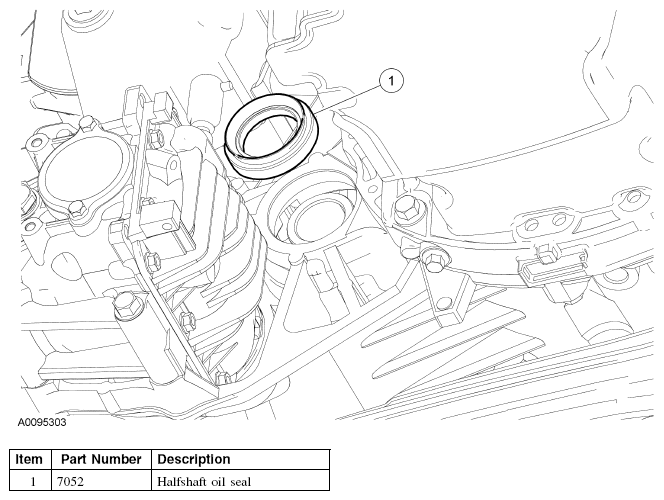

Fig 1: Identifying Halfshaft Seal Components
G04620948Courtesy of FORD MOTOR CO.
