Clutch Disc and Pressure Plate: Notes

WARNING: This page is about a different car, the 2006 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL

G04620922
Clutch Aligner
308-020 (T74P-7137-K)
G04620923
Flywheel Holding Tool
303-103 (T74P-6375-A)

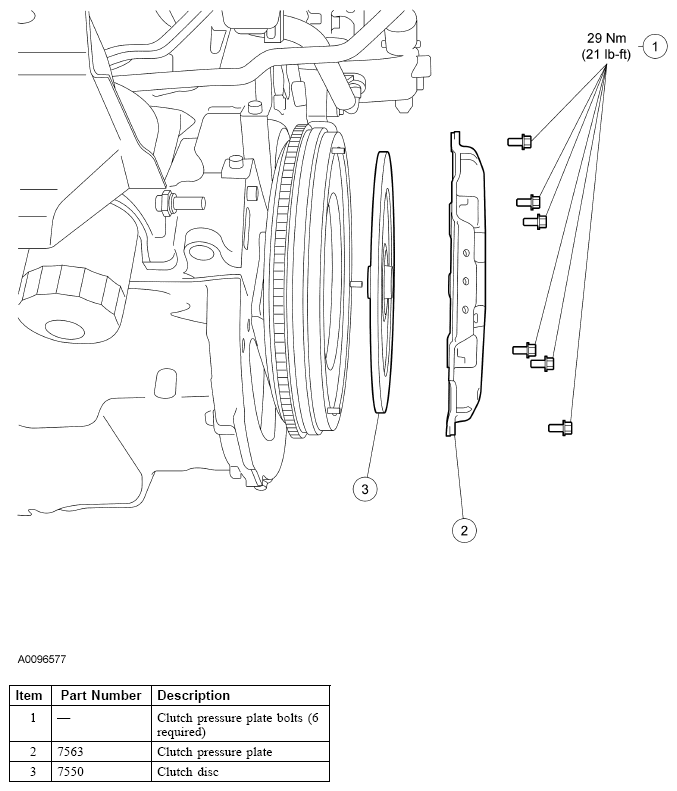

Fig 1: Clutch Disc And Pressure Plate Replacement Components With Torque Specifications & Part Numbers
G04620924Courtesy of FORD MOTOR CO.
