Clutch Disc and Pressure Plate: Installation

WARNING: This page is about a different car, the 2006 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

Using the clutch alignment special tool, position the clutch disc on the flywheel.

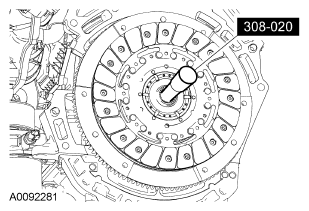

Fig 1: Identifying Clutch Alignment Tool
Courtesy of FORD MOTOR CO.
Position the clutch pressure plate on the flywheel and install the clutch pressure plate bolts.
- Tighten to 29 Nm (21 lb-ft) in sequence.

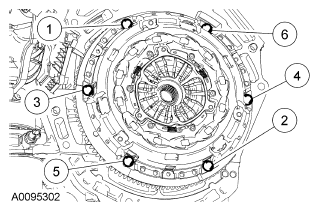

  Fig 2: Identifying Pressure Plate Tightening Sequence
  Courtesy of FORD MOTOR CO.
Install the transaxle. For additional information, refer to MANUAL TRANSAXLE-TRANSMISSION .
