WARNING: This page is about a different car, the 2006 Mercury Mariner and 2006 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
2.3L Engine

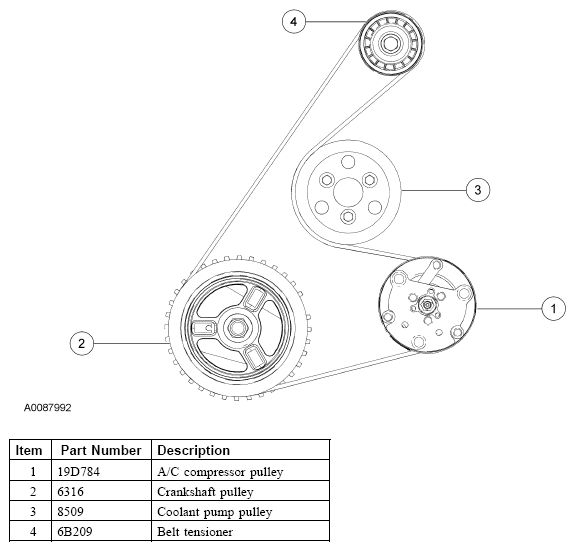

Fig 1: Identifying Accessory Drive Belt Routing - 2.3L Engine
