Accessory Drive

WARNING: This page is about a different car, the 2006 Mercury Mariner and 2006 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

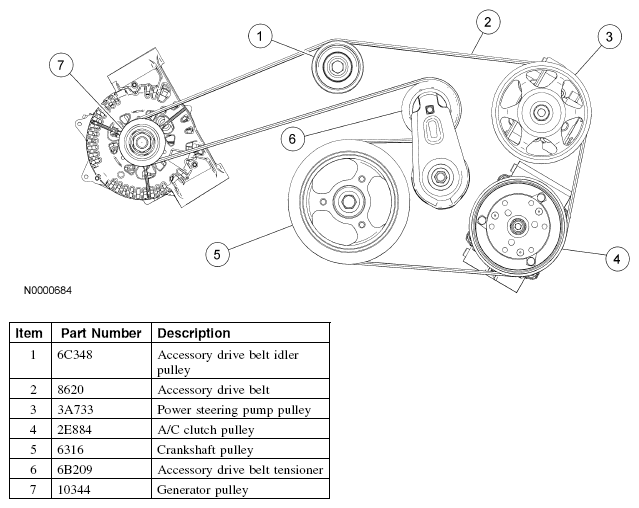

Fig 1: Identifying Accessory Drive Belt Routing

Courtesy of FORD MOTOR CO.

Fig 2: Identifying Coolant Pump Drive Belt Routing

Courtesy of FORD MOTOR CO.

This vehicle is equipped with:

a V-ribbed serpentine accessory drive belt.
an automatic drive belt tensioner.
a V-ribbed coolant pump belt.

New drive belts must be of the same type as originally installed.

Check the drive belt condition at 160,000 km (100,000 miles) then after every 24,000 km (15,000 miles).
