WARNING: This page is about a different car, the 2006 Mercury Mariner and 2006 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

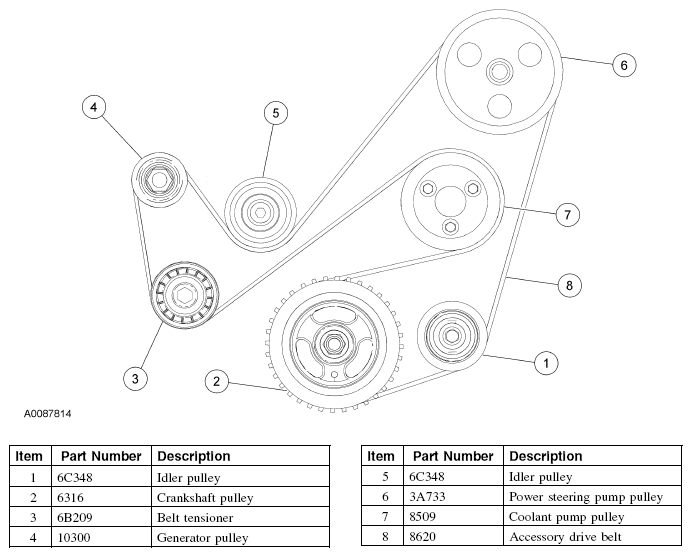

Fig 1: Accessory Drive Belt Routing & Components - 2.3L Without A/C
Courtesy of FORD MOTOR CO.

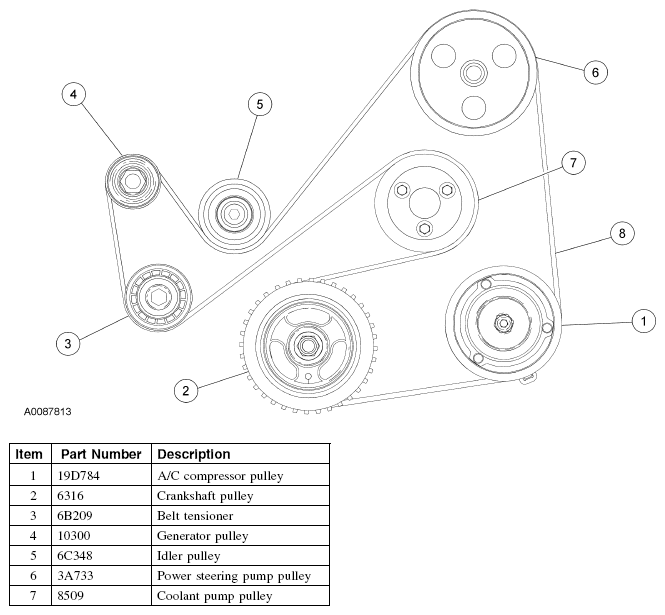

Fig 2: Accessory Drive Belt Routing & Components - 2.3L With A/C
