Engine Ignition Components - Exploded View

WARNING: This page is about a different car, the 2006 Mercury Mariner and 2006 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

Engine Ignition - RH

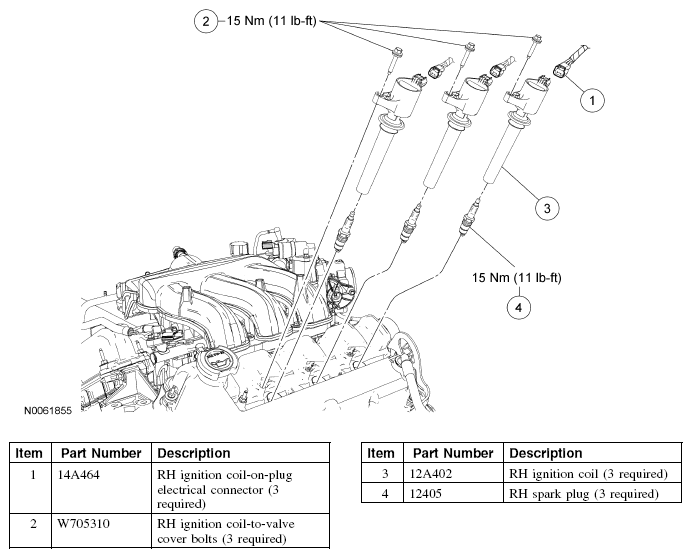

Fig 1: Engine Ignition Components With Torque Specifications - Exploded View (Engine Ignition - RH)

Courtesy of FORD MOTOR CO.

Engine Ignition - LH

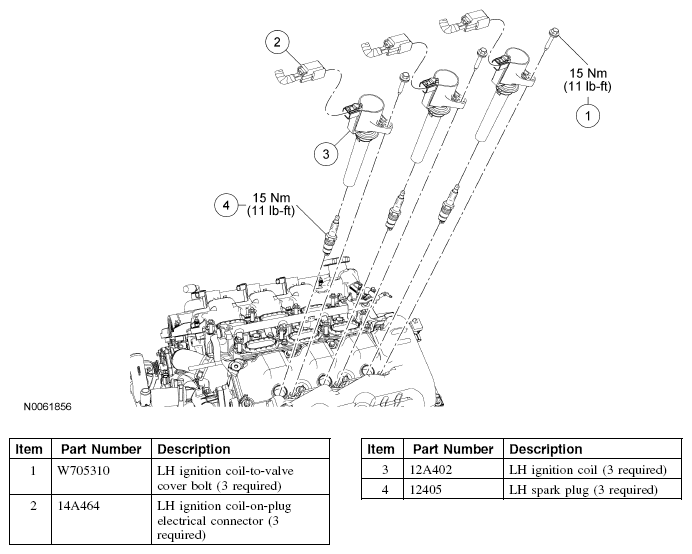

Fig 2: Engine Ignition Components With Torque Specifications - Exploded View (Engine Ignition - LH)

Courtesy of FORD MOTOR CO.
