Transmission Insulator and Retainer - Exploded View

WARNING: This page is about a different car, the 2006 Mercury Mariner and 2006 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

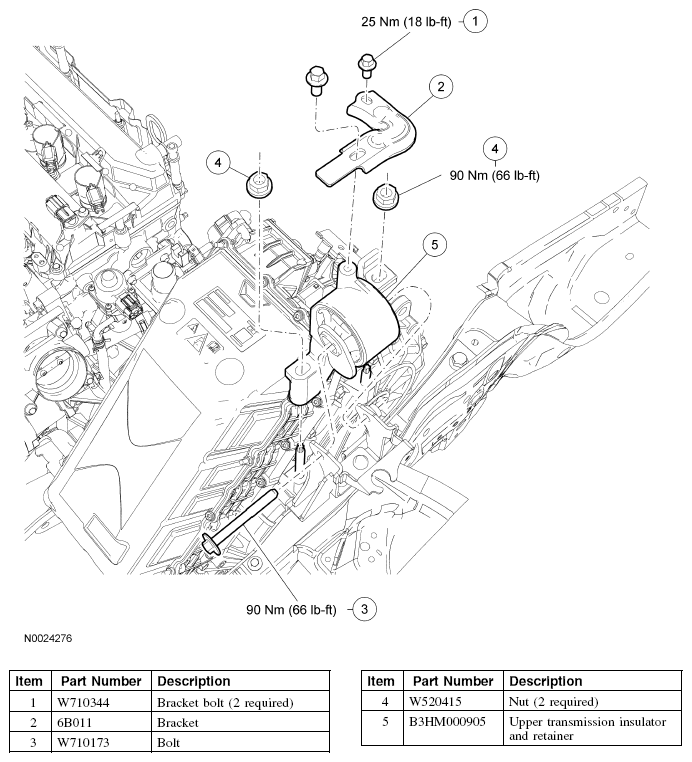

Transmission Insulator and Retainer - Upper

Fig 1: Exploded View Of Transmission Insulator And Retainer - Upper With Torque Specifications

Courtesy of FORD MOTOR CO.

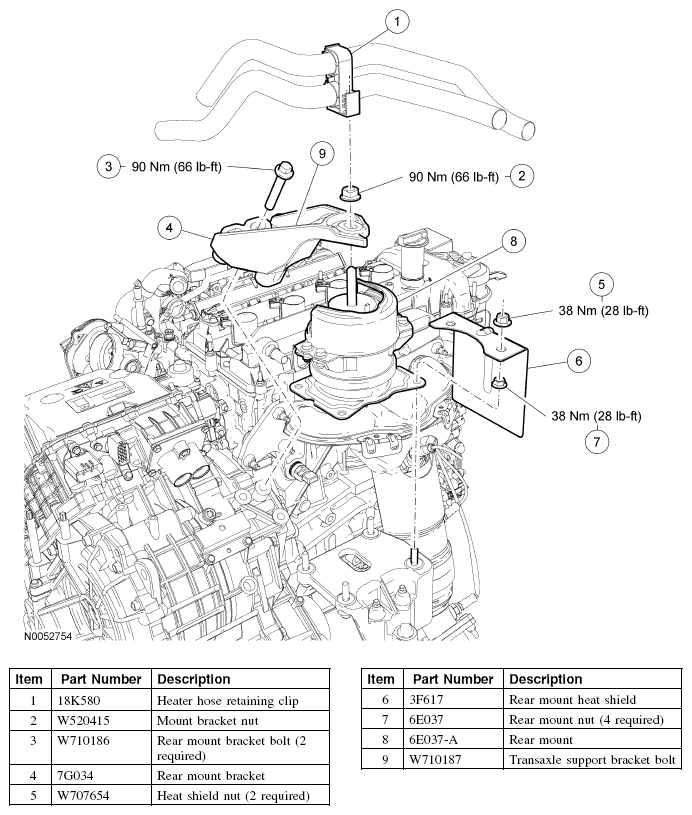

Transmission Insulator and Retainer - Rear

Fig 2: Exploded View Of Transmission Insulator And Retainer - Rear With Torque Specifications

Courtesy of FORD MOTOR CO.

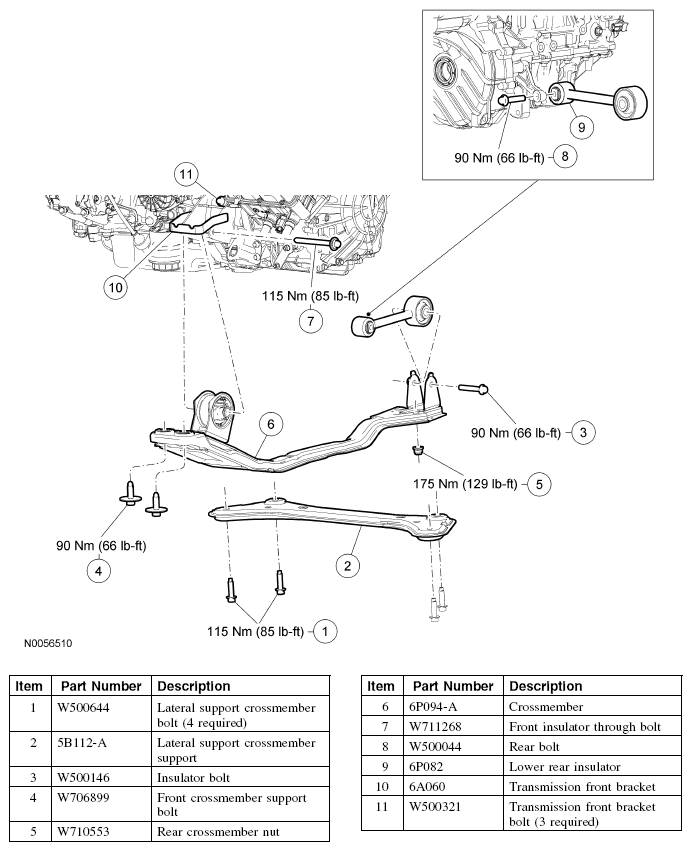

Transmission Insulator and Retainer - Lower

Fig 3: Exploded View Of Transmission Insulator And Retainer - Lower With Torque Specifications

Courtesy of FORD MOTOR CO.

For additional information, refer to the procedures in this article.
