Motor Electronics Cooling System
WARNING: This page is about a different car, the 2006 Mercury Mariner and 2006 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
The vehicle uses a pump driven cooling system (referred to as the motor electronics cooling system) to transfer heat generated by the CVT and the hybrid electric vehicle (HEV) battery pack to the atmosphere. The system uses a coolant-to-air radiator design.

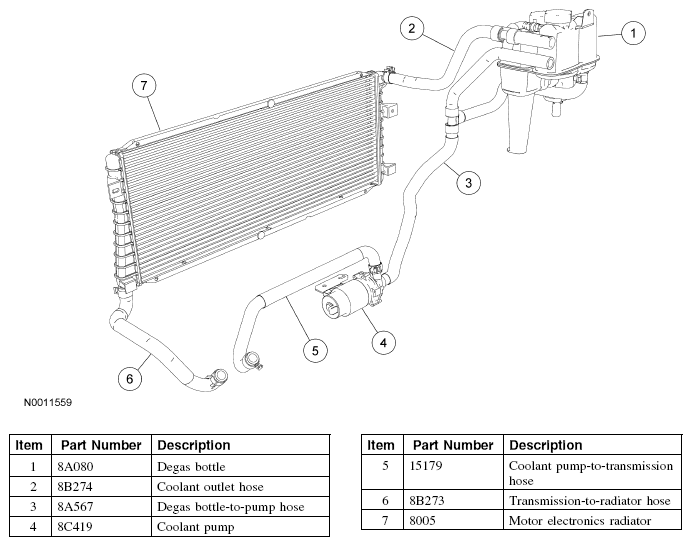

The motor/electronics cooling system has the following components:
