Thermostat Housing - 2.3L: Notes

WARNING: This page is about a different car, the 2006 Mercury Mariner and 2006 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The thermostat and thermostat housing are serviced as an assembly.

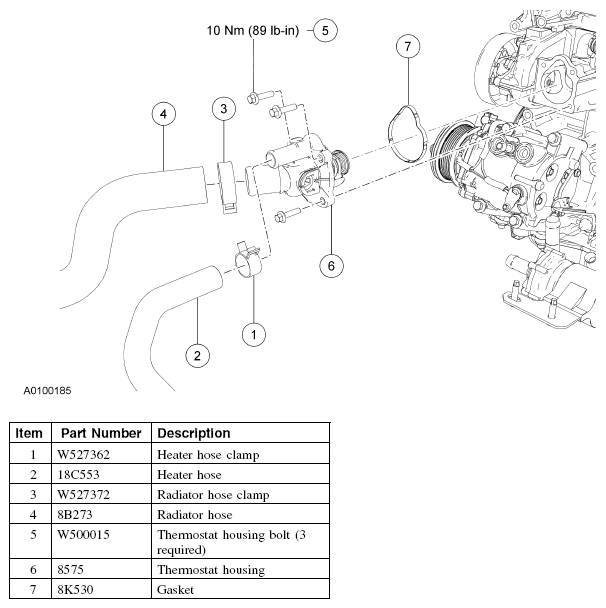

Fig 1: Identifying Thermostat Housing - 2.3L Components with Torque specifications

Courtesy of FORD MOTOR CO.
