WARNING: This page is about a different car, the 2006 Mercury Mariner and 2006 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

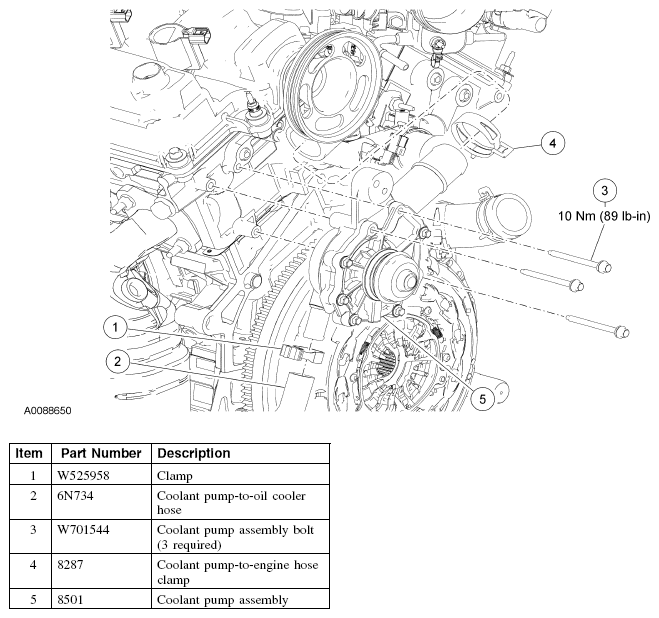

Fig 1: Identifying Coolant Pump - 3.0L (4V) Early Build Components with Torque specifications
