Section 1440 (Engine - 3.0L (4V)): Installation: Engine

WARNING: This page is about a different car, the 2006 Mercury Mariner and 2006 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

Special Tool(s)

Courtesy of FORD MOTOR COMPANY	Lifting Bracket, Engine 303-050 (T70P-6000)
Courtesy of FORD MOTOR COMPANY	Powertrain Lift with Tilting Plate 014-00765
Courtesy of FORD MOTOR COMPANY	Spreader Bar 303-D089 (D93P-6001-A3) or equivalent
Courtesy of FORD MOTOR COMPANY	Universal Adapter Brackets 014-0001

Material

Item	Specification
Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (US); Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 (Canada); or equivalent	WSS-M2C930-A
Silicone Gasket and Sealant TA-30	WSE-M4G323-A4

Installation

NOTE: If the oil pan was removed during engine disassembly, it must be installed after the engine and transaxle are assembled and the transaxle-to-engine bolts are installed. Failure to follow this assembly sequence can result in engine oil leaks.

All vehicles

1.

Using the special tools, align the engine with the transaxle.

Courtesy of FORD MOTOR COMPANY

2.

Install the 7 transaxle bolts.
- Tighten to 40 Nm (30 lb-ft).

Courtesy of FORD MOTOR COMPANY

3.

Using the special tools, secure the engine to the powertrain lift.

Courtesy of FORD MOTOR COMPANY

All wheel drive (AWD) vehicles

4.

Install 6 new RH exhaust manifold studs.
- Tighten to 12 Nm (9 lb-ft).

Courtesy of FORD MOTOR COMPANY

5.

Install a new gasket and the RH exhaust manifold and new nuts.
- Tighten in the sequence shown below to 20 Nm (15 lb-ft).

Fig 1: RH Exhaust Manifold Nuts Tightening Sequence

Courtesy of FORD MOTOR CO.

All vehicles

6.

Connect the turbine speed sensor (TSS) electrical connector.

Courtesy of FORD MOTOR COMPANY

7.

Attach the transaxle control harness to the brackets.

Courtesy of FORD MOTOR COMPANY

8.

Connect the transaxle wiring harness electronic control switch electrical connector.

Courtesy of FORD MOTOR COMPANY

9.

Connect the transmission range (TR) sensor electrical connector.

Courtesy of FORD MOTOR COMPANY

10.

Attach the pin-type retainers to the transaxle support bracket and connect the heated oxygen sensor (HO2S) and catalyst monitor sensor electrical connectors.

Courtesy of FORD MOTOR COMPANY

11.

Position the powertrain into the vehicle.

Courtesy of FORD MOTOR COMPANY

12.

Install the front engine support nuts.
- Tighten to 55 Nm (41 lb-ft).

Courtesy of FORD MOTOR COMPANY

13.

Install the rear transaxle support bolt.
- Tighten to 103 Nm (76 lb-ft).

Courtesy of FORD MOTOR COMPANY

14.

Position the RH transaxle support insulator and install the bolt and nuts.
- Tighten to 80 Nm (59 lb-ft).

Courtesy of FORD MOTOR COMPANY

15.

Install the RH transaxle support insulator bolt.
- Tighten to 115 Nm (85 lb-ft).

Courtesy of FORD MOTOR COMPANY

NOTE: The oil pan must be installed and the bolts tightened within 4 minutes of the sealant application.

NOTE: Clean and degrease all sealing surfaces with metal surface cleaner.

16.
Apply a 10 mm (0.39 in) dot of silicone gasket and sealant to the front cover-to-cylinder block sealing surface.

Courtesy of FORD MOTOR COMPANY

NOTE: Install a new oil pan gasket.

17.
Position the oil pan and gasket and loosely install the bolts and stud bolts.

Courtesy of FORD MOTOR COMPANY

18.

Install the 2 oil pan-to-transaxle bolts.
- Tighten to 40 Nm (30 lb-ft).

Courtesy of FORD MOTOR COMPANY

19.

Tighten the oil pan bolts in the sequence shown below to 25 Nm (18 lb-ft).

Fig 2: Oil Pan Bolts Tightening Sequence

Courtesy of FORD MOTOR CO.

20.

Install the 4 torque converter nuts.
- Tighten to 40 Nm (30 lb-ft).

Courtesy of FORD MOTOR COMPANY

21.

Install the torque converter inspection cover.

Courtesy of FORD MOTOR COMPANY

22.

Install the output shaft speed (OSS) sensor and the bolt and connect the electrical connector.
- Tighten to 13 Nm (10 lb-ft).

Courtesy of FORD MOTOR COMPANY

23.

Attach the HO2S wiring retainer to the radiator center support.

Courtesy of FORD MOTOR COMPANY

24.

If equipped, connect the engine block heater electrical connector.

Courtesy of FORD MOTOR COMPANY

25.

Attach the wiring harness retainers from the battery tray bracket.

Courtesy of FORD MOTOR COMPANY

26.

Position the ground strap and the electrical connector and install the bolts.
- Tighten to 10 Nm (89 lb-in).

Courtesy of FORD MOTOR COMPANY

27.

Install the cables and the nuts.
- Tighten to 12 Nm (9 lb-ft).

Courtesy of FORD MOTOR COMPANY

28.

Install the power distribution box cover.

Courtesy of FORD MOTOR COMPANY

29.

Attach the ground wire and install the bolt.
- Tighten to 10 Nm (89 lb-in).

Courtesy of FORD MOTOR COMPANY

30.

Position the wiring and install the nut. Connect the powertrain control module (PCM) electrical connectors.
- Tighten to 8 Nm (71 lb-in).

Courtesy of FORD MOTOR COMPANY

31.

Connect the manifold absolute pressure (MAP) sensor electrical connector and vacuum tube.

Courtesy of FORD MOTOR COMPANY

32.

Connect the brake booster vacuum tube and the vacuum reservoir tube.

Courtesy of FORD MOTOR COMPANY

33.

Connect the evaporative emissions purge valve vacuum tube to the intake manifold.
- Attach the vacuum tube retainer to the transmission fill tube.

Courtesy of FORD MOTOR COMPANY

34.

Position the exhaust gas recirculation (EGR) tube and loosely install the fittings.
- Tighten the EGR tube-to-EGR valve fitting to 40 Nm (30 lb-ft).

Courtesy of FORD MOTOR COMPANY

35.

Connect the differential pressure feedback EGR sensor electrical connector and attach the pin-type retainer.

Courtesy of FORD MOTOR COMPANY

36.

Position the gearshift cable bracket and install the bolts.
- Tighten to 19 Nm (14 lb-ft).

Courtesy of FORD MOTOR COMPANY

37.

Attach the wiring harness pin-type retainer to the gearshift cable bracket.

Courtesy of FORD MOTOR COMPANY

38.

Connect the fuel supply tube quick connect coupling at the fuel rail. For additional information, refer to FUEL SYSTEM - GENERAL INFORMATION .

39.

Connect the heater hoses and the throttle body coolant hose.

Courtesy of FORD MOTOR COMPANY

40.

Connect the hoses.

Courtesy of FORD MOTOR COMPANY

41.

Position the accelerator and speed control cables and bracket. Install the nut.
- Tighten to 10 Nm (89 lb-in).

Courtesy of FORD MOTOR COMPANY

42.

Position the bracket and install the bolts.
- Tighten to 10 Nm (89 lb-in).
- Connect the accelerator cable and the speed control actuator cable.

Courtesy of FORD MOTOR COMPANY

43.

Position the accelerator cable snow shield and install the bolts.
- Tighten to 10 Nm (89 lb-in).

Courtesy of FORD MOTOR COMPANY

44.

Tighten the EGR tube-to-RH catalytic converter fitting to 40 Nm (30 lb-ft).

Courtesy of FORD MOTOR COMPANY

45.

Connect the 2 transmission cooler tubes.

Courtesy of FORD MOTOR COMPANY

46.

Install the crossbrace and the new nut.
- Tighten to 175 Nm (129 lb-ft).

Courtesy of FORD MOTOR COMPANY

47.

Install the bolt for the transaxle mount and install the 2 bolts for the crossbrace.
- Tighten the transaxle mount bolt to 115 Nm (85 lb-ft).
- Tighten the crossbrace bolts to 90 Nm (66 lb-ft).

Courtesy of FORD MOTOR COMPANY

Front wheel drive (FWD) vehicles

48.

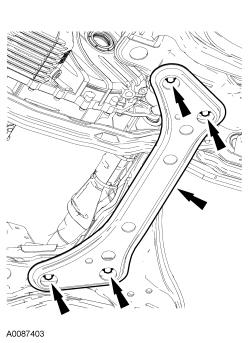

Install the lateral support crossmember and the 4 bolts.
- Tighten to 115 Nm (85 lb-ft).

Courtesy of FORD MOTOR COMPANY

All vehicles

49.

Position the power steering pump and install the bolts.
- Tighten to 25 Nm (18 lb-ft).

Courtesy of FORD MOTOR COMPANY

50.

Install the power steering pump pulley and the nut.
- Tighten to 49 Nm (36 lb-ft).

Courtesy of FORD MOTOR COMPANY

51.

Install the A/C compressor and the bolts.
- Tighten to 25 Nm (18 lb-ft).

Courtesy of FORD MOTOR COMPANY

52.

Connect the A/C clutch field coil electrical connector.

Courtesy of FORD MOTOR COMPANY

53.

Install the LH halfshaft. For additional information, refer to FRONT DRIVE HALFSHAFTS .

54.

Position the accessory drive belt on all pulleys except the generator pulley.

55.

Install the generator. For additional information, refer to CHARGING SYSTEM - GENERATORS AND REGULATORS .

56.

Install the exhaust system flexpipe. For additional information, refer to EXHAUST SYSTEM .

57.

Install the lower radiator air deflectors.

Courtesy of FORD MOTOR COMPANY

58.

Position the power steering hose bracket and install the nut.
- Tighten to 25 Nm (18 lb-ft).
- Connect the power steering pressure (PSP) switch electrical connector.

Courtesy of FORD MOTOR COMPANY

59.

Install the air cleaner outlet pipe and air cleaner. For additional information, refer to INTAKE AIR DISTRIBUTION SYSTEM & FILTERING SYSTEM - 3.0L (4V) .

60.

Install the battery tray. For additional information, refer to BATTERY, MOUNTING AND CABLES .

61.

Fill and bleed the cooling system. For additional information refer to ENGINE COOLING - (EXCEPT HYBRID) .

62.

Fill the engine with clean engine oil.
