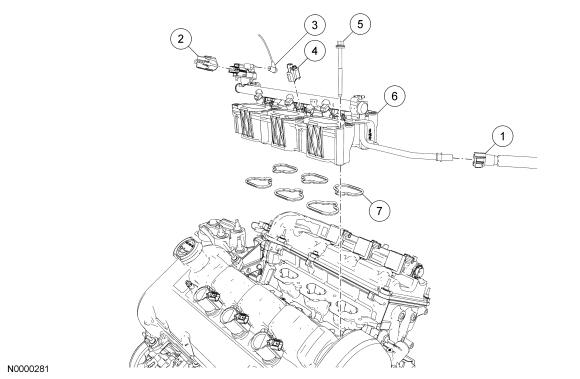

Lower Intake Manifold: Notes
WARNING: This page is about a different car, the 2006 Mercury Mariner and 2006 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 9288 | Fuel tube |
| 2 | 14A464 | Fuel rail pressure and temperature sensor electrical connector (part of 9H589) |
| 3 | - | Fuel rail pressure and temperature sensor vacuum tube fitting (part of 9E498) |
| 4 | 14A464 | Fuel injector electrical connector (6 required) (part of 9H589) |
| 5 | W708187 | Lower intake manifold bolt (8 required) |
| 6 | 9K461 | Lower intake manifold |
| 7 | 9439 | Lower intake manifold gasket (6 required) |
