Lower End Components Exploded View
WARNING: This page is about a different car, the 2006 Mercury Mariner and 2006 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

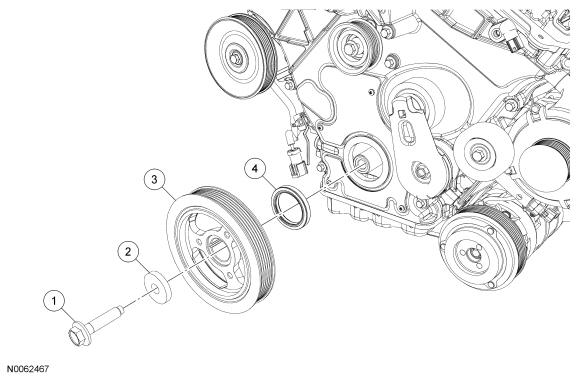

Crankshaft Pulley and Front Seal
| Item | Part Number | Description |
|---|---|---|
| 1 | W701512 | Crankshaft pulley bolt |
| 2 | W701511 | Washer |
| 3 | 6316 | Crankshaft pulley |
| 4 | 6700 | Crankshaft front seal |

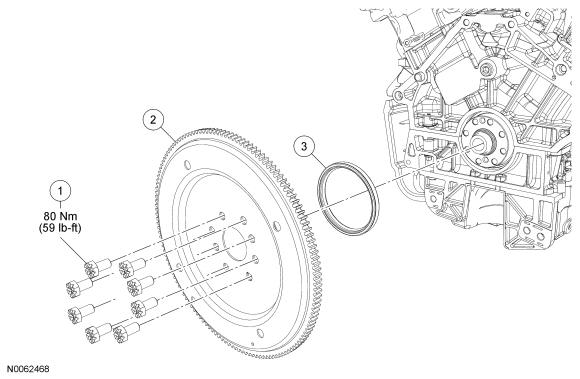

Flexplate and Rear Seal
| Item | Part Number | Description |
|---|---|---|
| 1 | W701559 | Flexplate bolt (8 required) |
| 2 | 6375 | Flexplate |
| 3 | 6701 | Crankshaft rear oil seal |
