Cylinder Head: Disassembly
WARNING: This page is about a different car, the 2006 Mercury Mariner and 2006 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
If the components are to be reinstalled, they must be installed in the same positions. Mark the components removed for locations.
- 1.
Remove the hydraulic lash adjusters.
- 2.

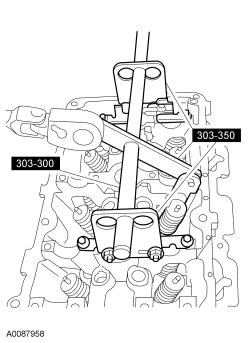

Using the special tool, remove the keys, retainer and spring.
 Courtesy of FORD MOTOR COMPANY
|
- 3.
Remove the valve from the cylinder head.
- 4.
Remove the valve stem seal.
