Power Transfer Unit (PTU) - Manual Transaxle

WARNING: This page is about a different car, the 2006 Mercury Mariner and 2006 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

MATERIAL SPECIFICATION

Item	Specification
Motorcraft SAE 80W-90 Premium Rear Axle Lubricant XY-80W90-QL (US); CXY-80W90-1L (Canada)	WSP-M2C197-A

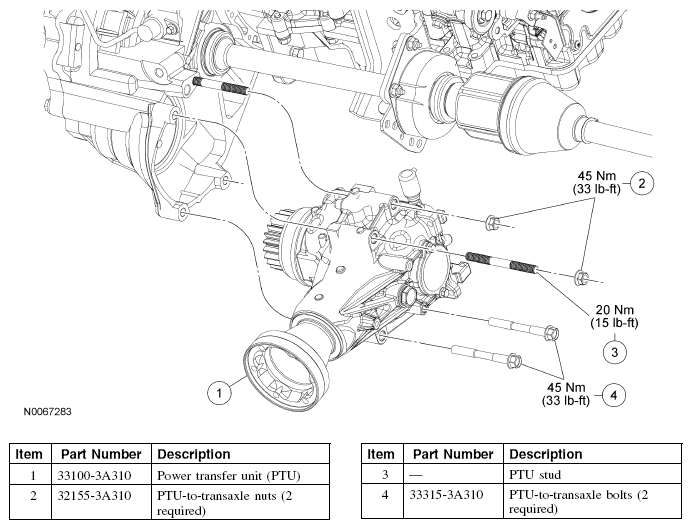

Fig 1: Power Transfer Unit (PTU) Replacement Components - Manual Transaxle With Torque Specifications

Courtesy of FORD MOTOR CO.

CAUTION: The O-ring must be correctly installed before mating the power transfer unit (PTU) to the manual transaxle. Failure to correctly install the O-ring may cause the O-ring to be damaged, resulting in a transaxle fluid leak.

Fig 2: Locating O-Ring Seal

Courtesy of FORD MOTOR CO.

Install a new O-ring seal.
Position the power transfer unit (PTU) to the transaxle.
Install the front stud.

Fig 3: Locating Front Stud
Courtesy of FORD MOTOR CO.
Install the 2 PTU-to-transaxle nuts.

Fig 4: Locating 2 PTU-To-Transaxle Nuts
Courtesy of FORD MOTOR CO.
Install the 2 PTU-to-transaxle bolts.

Fig 5: Locating 2 PTU-To-Transaxle Bolts
Courtesy of FORD MOTOR CO.
Install the crossmember brace and the 4 bolts.
- Tighten to 40 Nm (30 lb-ft).

  Fig 6: Locating Bolts On Crossmember Brace
  Courtesy of FORD MOTOR CO.
Install the driveshaft. For additional information, refer to DRIVESHAFT .
Fill the transaxle. For additional information, refer to TRANSAXLE DRAINING AND FILLING in Section 308-03.
