Stub Shaft Pilot Bearing And Seal: Installation

WARNING: This page is about a different car, the 2006 Mercury Mariner and 2006 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: Lubricate the new stub shaft pilot bearing with rear axle lubricant.
    Fig 1: Identifying Special Tool (205-195, 205-153)
    G04617597Courtesy of FORD MOTOR CO.
  1. To install the bearing, use the special tools and install the stub shaft pilot bearing.
    2. NOTE: Lubricate the new stub shaft pilot bearing housing seal with grease.

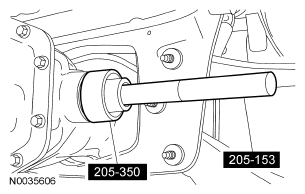

    Fig 2: Installing Stub Shaft Pilot Bearing Housing Seal
    G04617598Courtesy of FORD MOTOR CO.
  2. Using the special tools, install the stub shaft pilot bearing housing seal.
    3. CAUTION: Inspect the inboard cv joint seal journal for rust or nicks/scratches prior to installing the halfshaft. if necessary, polish the seal journal with fine crocus cloth.
  3. Install the halfshaft assembly. for additional information, refer to REAR DRIVE HALFSHAFTS .
