Glass, Frames and Mechanisms - Exploded View, Rear Door
WARNING: This page is about a different car, the 2006 Mercury Mariner and 2006 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

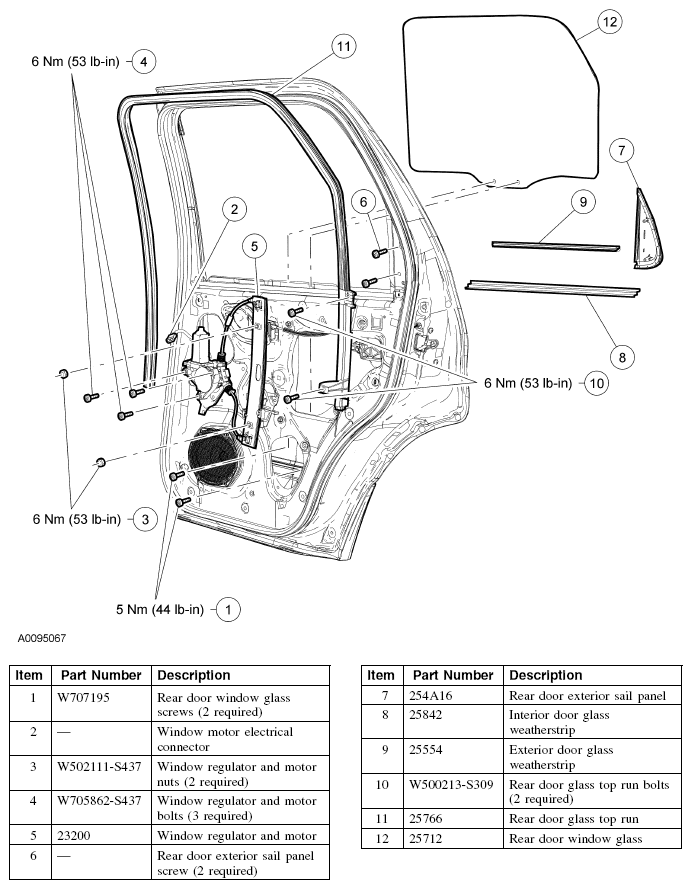

Fig 1: Exploded View Of Glass, Frames And Mechanisms - (Rear Door) With Torque Specifications
Courtesy of FORD MOTOR CO.
For additional information, refer to the procedures in this article.
