Crossmember - Number 2: Notes

WARNING: This page is about a different car, the 2006 Mercury Grand Marquis and 2006 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL(S)

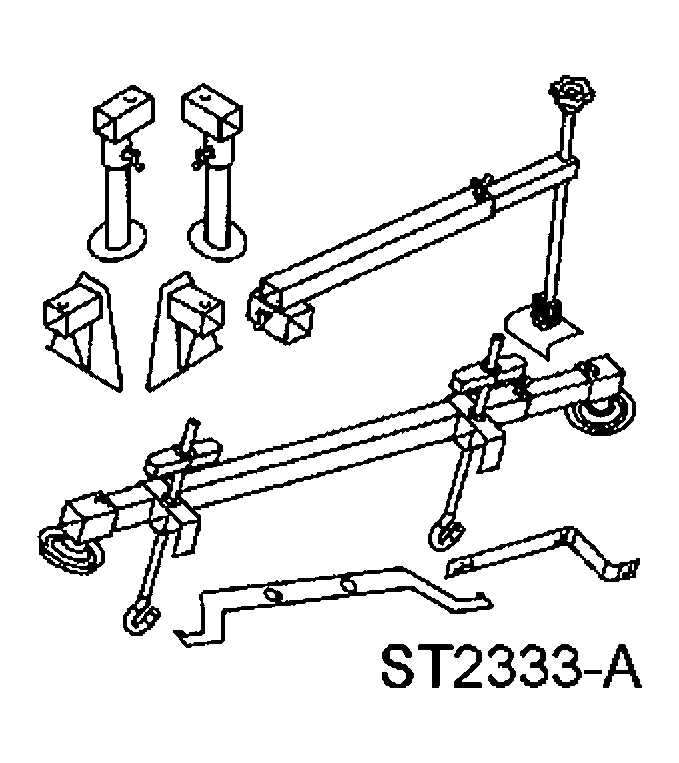

G04586642
Support Bar, Engine
303-F072
G04586643
Support Bar, Engine
303-639

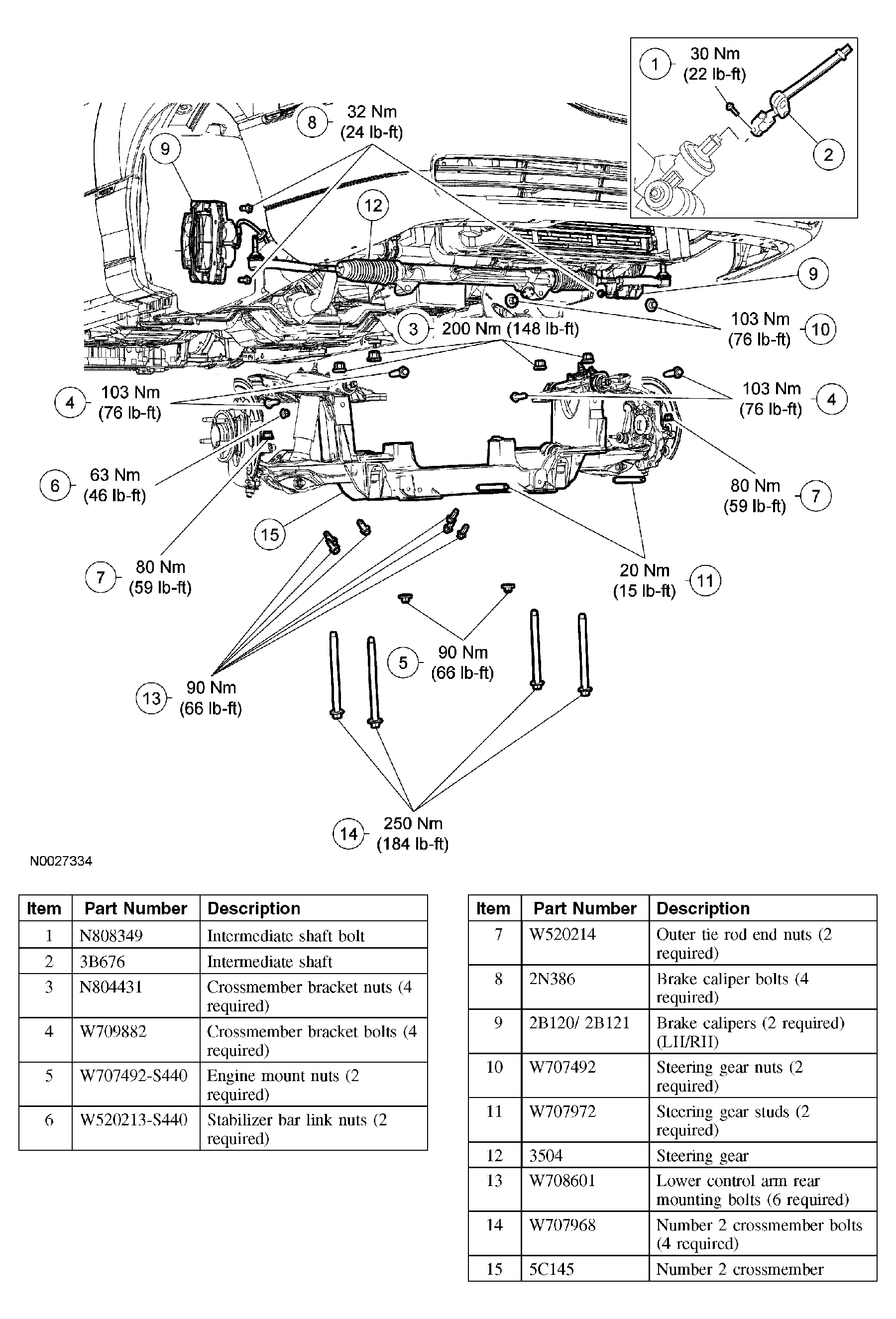

Fig 1: Identifying Crossmember - Number 2
G04586644Courtesy of FORD MOTOR CO.
