Supplemental Restraint System (SRS) Deactivation and Reactivation: Deactivation

WARNING: This page is about a different car, the 2006 Mercury Grand Marquis and 2006 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Always wear safety glasses when repairing an air bag supplemental restraint system (SRS) vehicle and when handling an air bag module. This will reduce the risk of injury in the event of an accidental deployment.
WARNING: Carry a live air bag module with the air bag and trim cover pointed away from your body. This will reduce the risk of injury in the event of an accidental deployment.
WARNING: Do not set a live air bag module down with the trim cover face down. This will reduce the risk of injury in the event of an accidental deployment.
WARNING: After deployment, the air bag surface can contain deposits of sodium hydroxide, a product of the gas generant combustion that is irritating to the skin. Wash your hands with soap and water afterwards.
WARNING: Never probe the connectors on the air bag module. Doing so can result in air bag deployment, which can result in personal injury.
WARNING: To reduce the risk of personal injury, do not use any memory saver devices.
NOTE: If a seat equipped with a supplemental restraint system (SRS) component is being serviced, the SRS must be depowered.
NOTE: The air bag warning lamp illuminates when the RCM fuse is removed and the ignition switch is ON. This is normal operation and does not indicate a supplemental restraint system (SRS) fault.
NOTE: The SRS must be fully operational and free of faults before releasing the vehicle to the customer.

    All vehicles

  1. Turn all vehicle accessories OFF.
  2. Turn the ignition switch to OFF.
  3. At the central junction box (CJB), located below the LH side of the instrument panel, remove the cover and the restraints control module (RCM) fuse 22 (10A) from the CJB. For additional information, refer to the SYSTEM WIRING DIAGRAMS - CROWN VICTORIA or SYSTEM WIRING DIAGRAMS - GRAND MARQUIS .
  4. Turn the ignition ON and visually monitor the air bag indicator for at least 30 seconds. The air bag indicator will remain lit continuously (no flashing) if the correct RCM fuse has been removed. If the air bag indicator does not remain lit continuously, remove the correct RCM fuse before proceeding.
  5. Turn the ignition OFF.
    6. WARNING: To avoid accidental deployment and possible personal injury, the backup power supply must be depleted before repairing or replacing any front or side air bag supplemental restraint system (SRS) components and before servicing, replacing, adjusting or striking components near the front or side air bag sensors, such as doors, instrument panel, console, door latches, strikers, seats and hood latches.
    The front impact severity sensors are located at the top and in front of each side of the radiator core support.
    The side impact sensors (if equipped) are located at or near the base of the B-pillars.
    To deplete the backup power supply energy, disconnect the battery ground cable and wait at least one minute. Be sure to disconnect auxiliary batteries and power supplies (if equipped).
  6. Disconnect the battery ground cable and wait at least one minute. For additional information, refer to BATTERY, MOUNTING AND CABLES .
    7. NOTE: A tool that has a blunt end, such as a 4.0 mm (0.15 in) Allen wrench, is better able to disengage the steering wheel spring clip from the driver air bag module locking pins.
    Fig 1: Identifying Allen Wrench
    G04586462Courtesy of FORD MOTOR CO.
  7. Using a 4 mm (0.15 in) Allen wrench or suitable tool, place 2 marks on the tool as an aid to remove the driver air bag module. One mark should be approximately 35 mm (1.37 in) from the end of the tool with the second mark approximately 45 mm (1.77 in) from the end of the tool.
    8. NOTE: The steering wheel rear cover has internal guides that assist in directing the tool to the correct location. Allow the steering wheel rear cover to guide the tool, minimal force is needed.
  8. Gently  insert the tool into a steering wheel rear cover upper access hole until the end of the tool comes into contact with an obstruction. The 45 mm (1.77 in) mark on the tool should be even or close to even with the steering wheel rear cover. If the 45 mm (1.77 in) mark on the tool is not even or close to even with the steering wheel rear cover, remove the tool from the steering wheel and carry out the step once again to correctly position the tool.
    • If the 45 mm (1.77 in) mark on the tool goes into the steering wheel rear cover, the tool was directed past the steering wheel spring clip. Use a tool of a slightly larger diameter or, using the internal guides of the steering wheel rear cover, insert the tool to the 45 mm (1.77 in) mark and proceed to the next step.

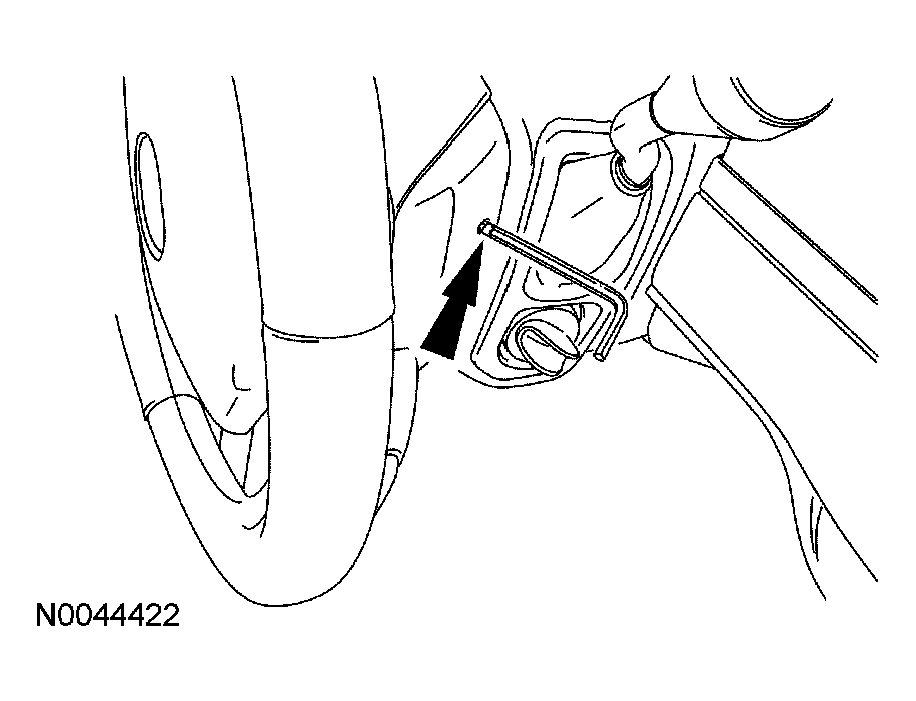

      Fig 2: Inserting Allen Wrench
      G04586463Courtesy of FORD MOTOR CO.
    9. NOTE: The steering wheel is removed for clarity. The upper corner of the steering wheel rear cover is cutaway to show the internal guides and the steering wheel spring clip.

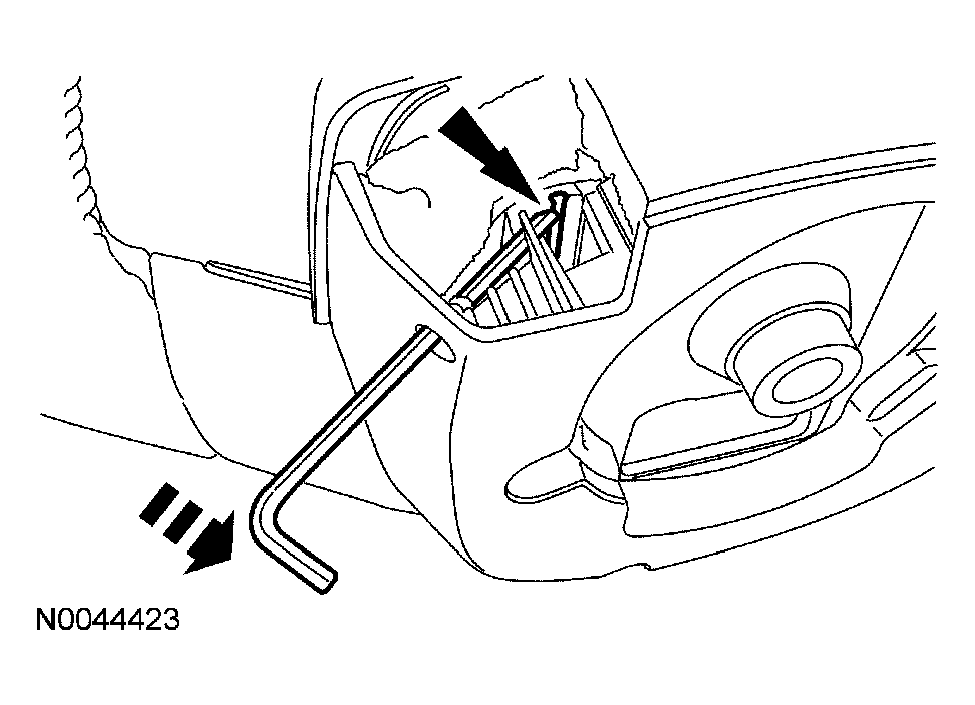

    Fig 3: Disengaging Steering Wheel Spring Clip From Driver Air Bag Module Locking Pin
    G04586464Courtesy of FORD MOTOR CO.
  9. With the tool correctly positioned, remove the tool approximately 2-3 mm (0.07-0.11 in) from the access hole then gently push the tool forward (toward front of vehicle). This puts the tool in the best position to disengage the steering wheel spring clip from the driver air bag module locking pin.
    10. NOTE: Make sure to disengage the steering wheel spring clip from the driver air bag module locking pin before gently pulling the corresponding corner of the driver air bag module. No or very little force is needed to separate the corresponding corner of the driver air bag module from the steering wheel once the spring clip is disengaged from the locking pin.
    NOTE: When the steering wheel spring clip is disengaged from the first locking pin, the corresponding corner of the driver air bag module will only separate 2-4 mm (0.07-0.15 in) from the steering wheel. The driver air bag module will separate more noticeably as subsequent locking pins are disengaged.
  10. Push the tool deeper into the access hole (approximately 4-8 mm [0.15-0.31 in]) with enough force to disengage the steering wheel spring clip from the driver air bag module locking pin. The corresponding corner of the driver air bag module should pop up once the spring clip is disengaged from the locking pin. Gently  pull the corresponding corner of the driver air bag module to make sure the locking pin does not reengage the spring clip. Remove the tool from the access hole. Discontinue pulling on the corresponding corner of the driver air bag module.
    • If the corresponding corner of the driver air bag module does not easily separate from the steering wheel, the spring clip is not disengaged from the locking pin. Repeat the necessary steps to correctly position the tool and disengage the spring clip from the locking pin.

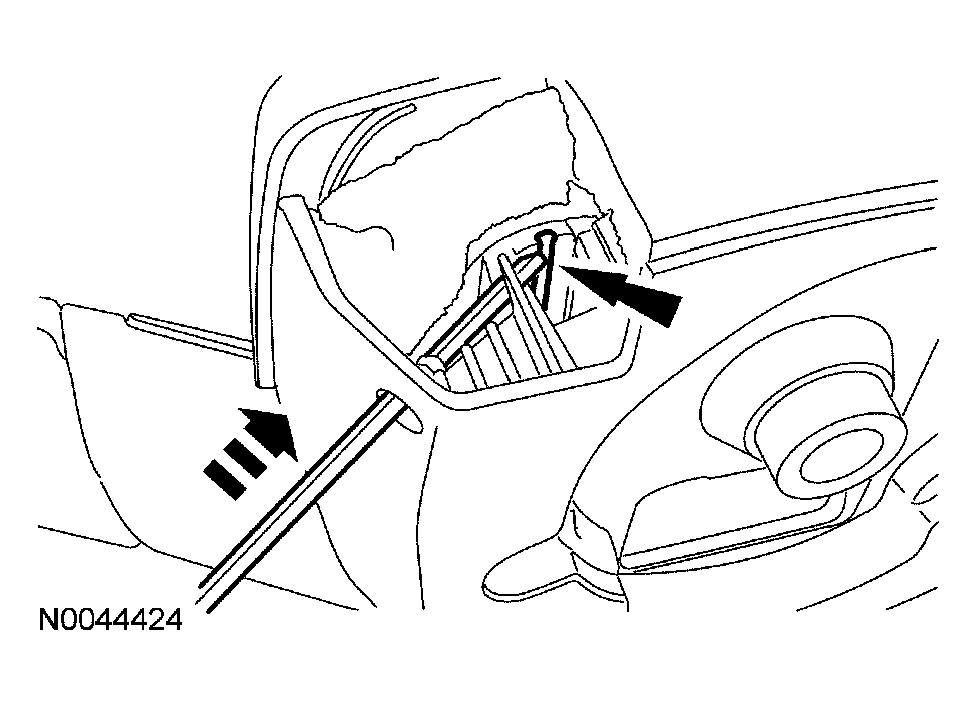

      Fig 4: Disengaging Spring Clip From Locking Pin
      G04586465Courtesy of FORD MOTOR CO.

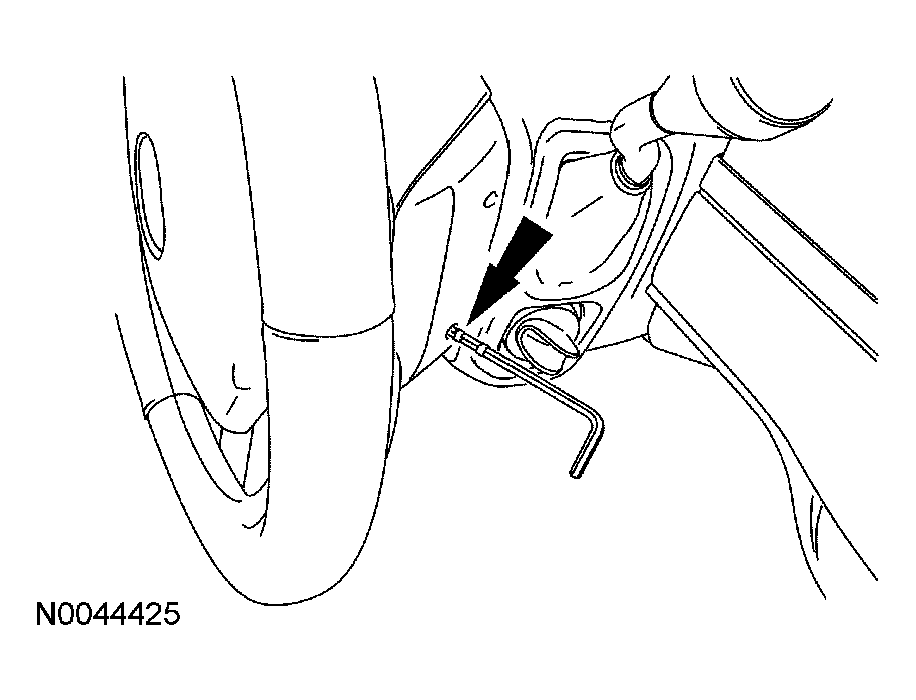

    11. NOTE: The steering wheel rear cover has internal guides that assist in directing the tool to the correct location. Allow the steering wheel rear cover to guide the tool, minimal force is needed.
  11. Working on the same side of the steering wheel, gently  insert the tool into a steering wheel rear cover lower access hole until the end of the tool comes into contact with an obstruction. The 35 mm (1.37 in) mark on the tool should be even or close to even with the steering wheel cover. If the 35 mm (1.37 in) mark on the tool is not even or close to even with the steering wheel cover, remove the tool from the access hole and carry out the step once again to correctly position the tool.
    • If the 35 mm (1.37 in) mark on the tool goes into the steering wheel rear cover, the tool was directed past the steering wheel spring clip. Use a tool of a slightly larger diameter or, using the internal guides of the steering wheel rear cover, insert the tool to the 35 mm (1.37 in) mark and proceed to the next step.
      Fig 5: Inserting Allen Wrench
      G04586466Courtesy of FORD MOTOR CO.

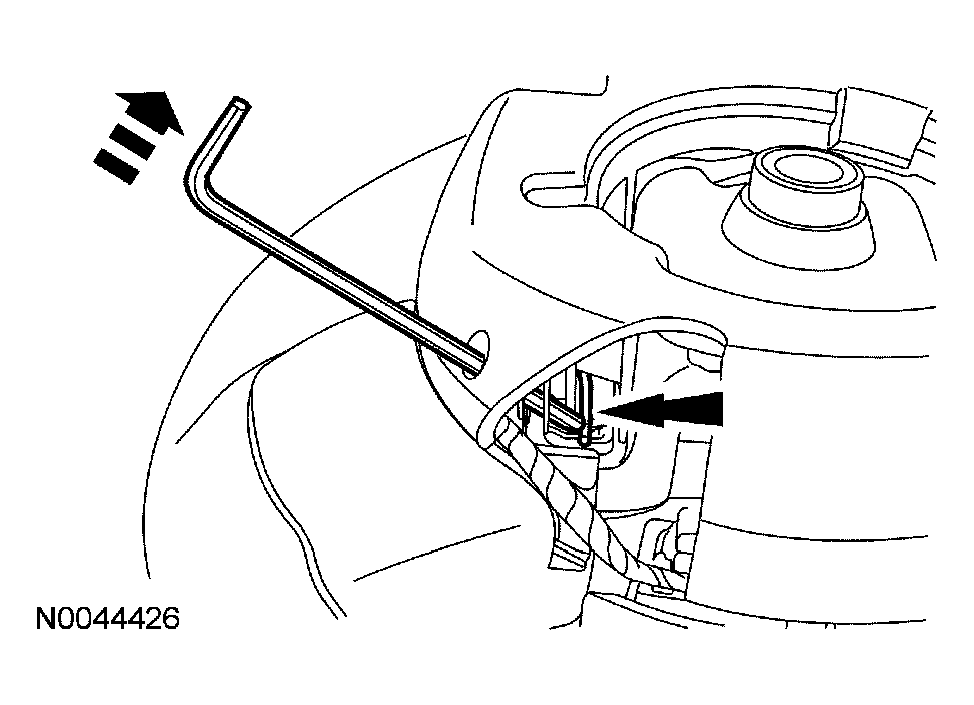

    12. NOTE: The steering wheel is removed for clarity. The lower corner of the steering wheel rear cover is cutaway to show the internal guides and the steering wheel spring clip.
    Fig 6: Disengaging Steering Wheel Spring Clip From Driver Air Bag Module Locking Pin
    G04586467Courtesy of FORD MOTOR CO.
  12. With the tool correctly positioned, remove the tool approximately 2-3 mm (0.07-0.11 in) from the access hole then gently push the tool forward (toward front of vehicle). This puts the tool in the best position to disengage the steering wheel spring clip from the driver air bag module locking pin.
    13. NOTE: Make sure to disengage the steering wheel spring clip from the driver air bag module locking pin before gently pulling the corresponding corner of the driver air bag module. No or very little force is needed to separate the corresponding corner of the driver air bag module from the steering wheel once the spring clip is disengaged from the locking pin.
  13. Push the tool deeper into the access hole (approximately 3-6 mm [0.11-0.23 in]) with enough force to disengage the steering wheel spring clip from the driver air bag module locking pin. The corresponding corner of the driver air bag module should pop up once the spring clip is disengaged from the locking pin. Gently  pull the corresponding corner of the driver air bag module to make sure the locking pin does not reengage the spring clip. Remove the tool from the access hole. Discontinue pulling on the corresponding corner of the driver air bag module.
    • If the corresponding corner of the driver air bag module does not easily separate from the steering wheel the spring clip is not disengaged from the locking pin. Repeat the necessary steps to correctly position the tool and disengage the spring clip from the locking pin.

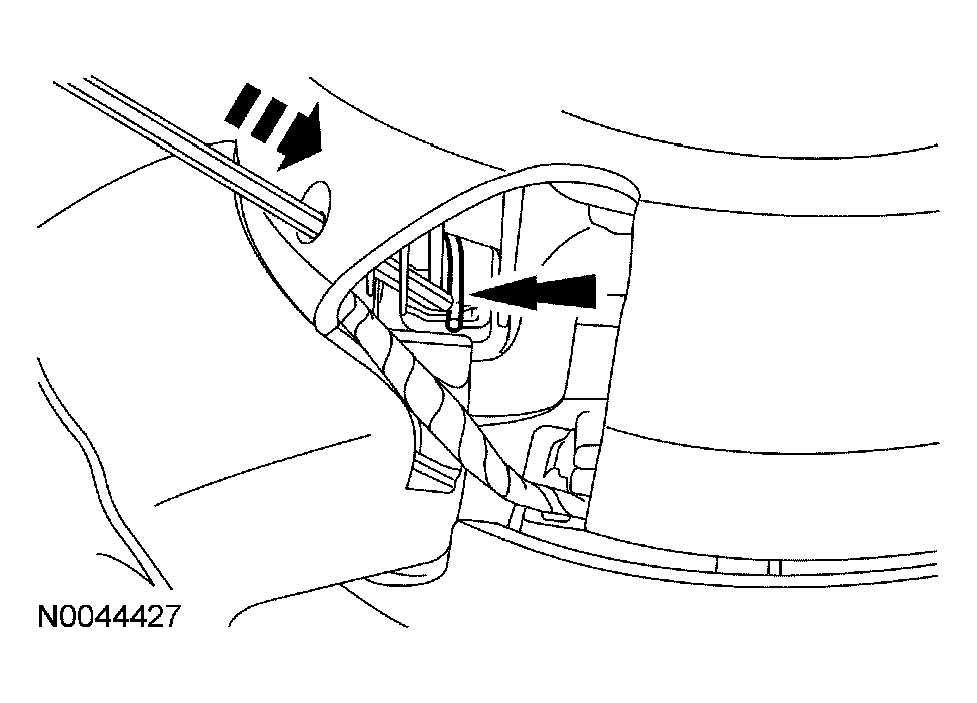

      Fig 7: Disengaging Spring Clip From Locking Pin
      G04586468Courtesy of FORD MOTOR CO.
    14. NOTE: Disengage the steering wheel spring clips from the 2 locking pins on one side of the driver air bag module before proceeding to the other side.
  14. Repeat the above steps to disengage the 2 remaining driver air bag module locking pins.
    15. NOTE: The driver air bag electrical connectors cannot be reversed at installation. Note the electrical connectors position for installation.
  15. Disconnect and remove the driver air bag module.
    1. Release the driver air bag module electrical wiring from the driver air bag wiring clip.
    2. Squeeze the tabs and disconnect the driver air bag module electrical connector.
    3. Squeeze the tabs and disconnect the driver air bag module electrical connector.
    4. Disconnect the horn electrical connector.
    5. Remove the driver air bag module.

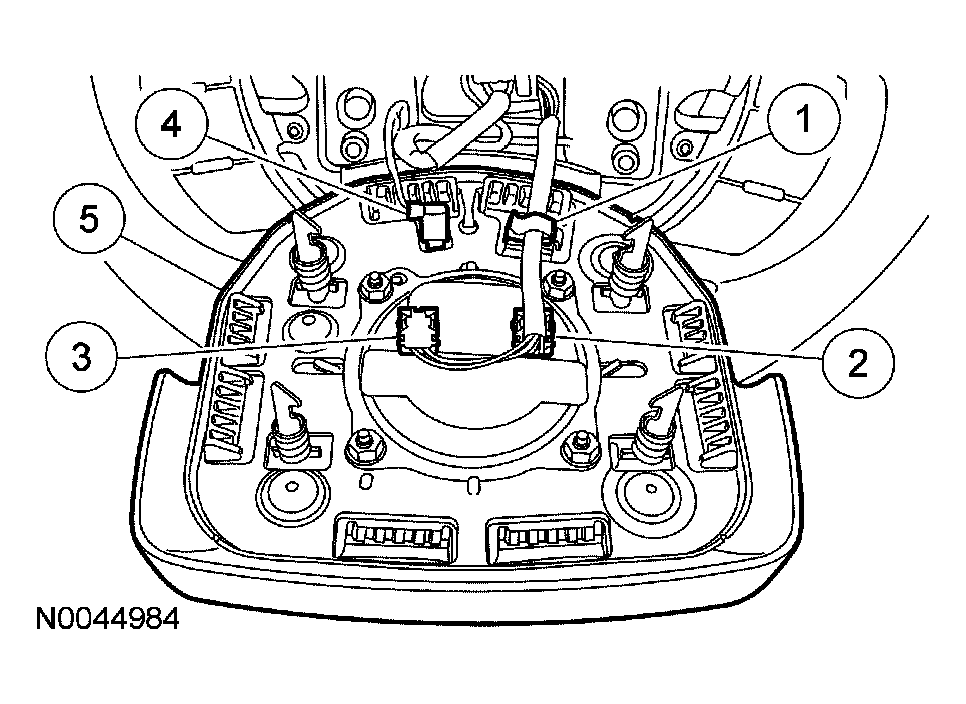

      Fig 8: Removing Driver Air Bag Module
      G04586469Courtesy of FORD MOTOR CO.

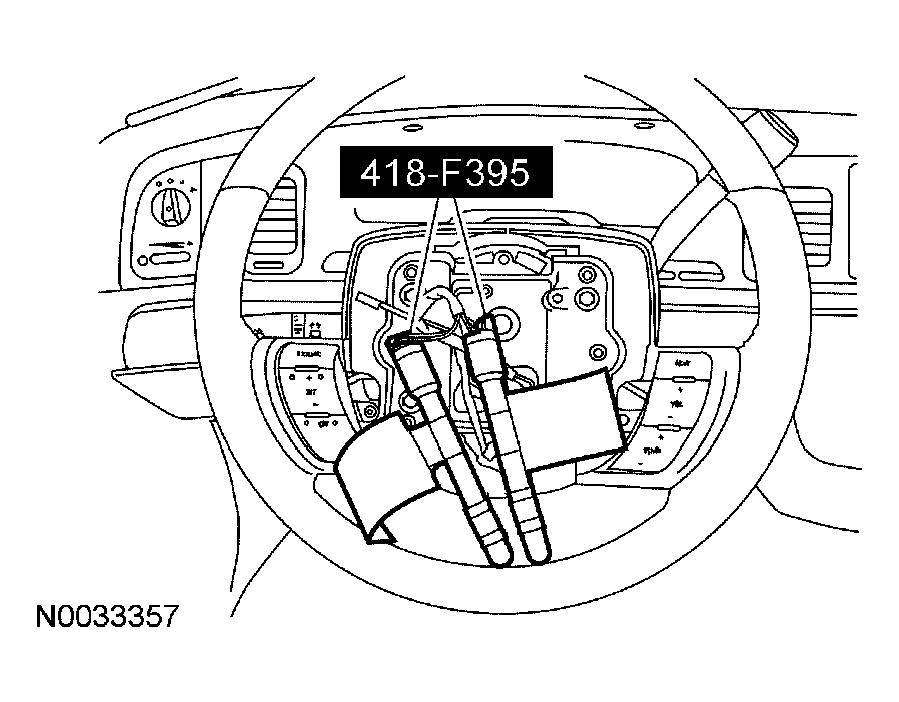

  16. Attach the 2 restraint system diagnostic tools to the 2 clockspring electrical connectors at the top of the steering column.
    Fig 9: Attaching Restraint System Diagnostic Tools To 2 Clockspring Electrical Connectors
    G04586470Courtesy of FORD MOTOR CO.
  17. Separate the trim panel.
    • Pull out to release the retaining clips.
    • Slide the trim panel slightly to the right, aligning the keyway.
    • Pull out, separating the trim panel from the instrument panel.

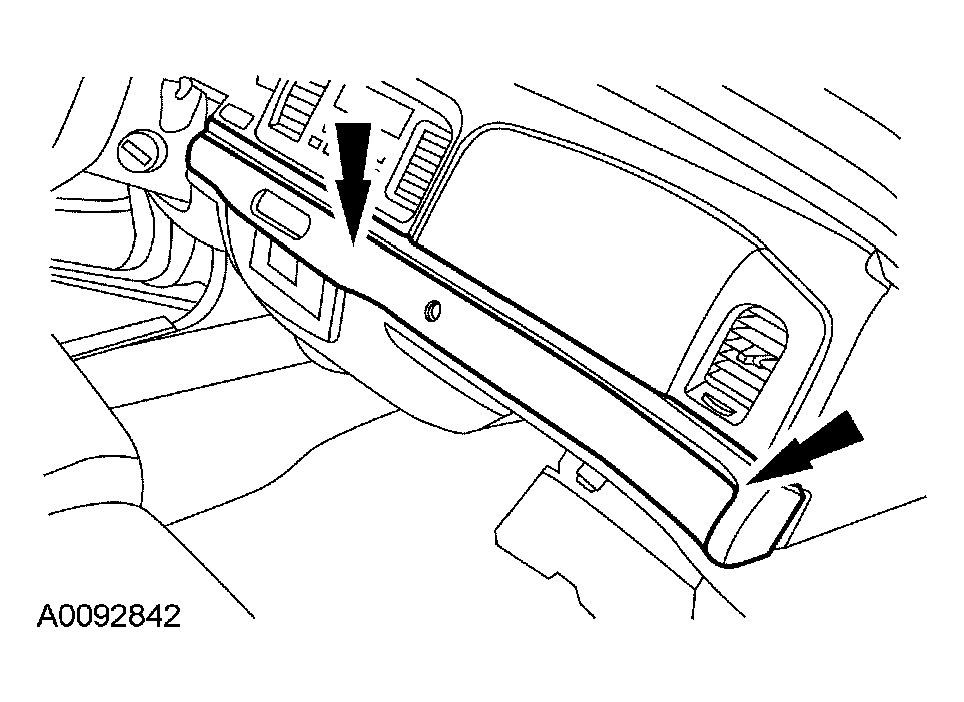

      Fig 10: Separating Trim Panel
      G04586471Courtesy of FORD MOTOR CO.
  18. Remove the trim panel.
    1. Disconnect the rear window defrost switch electrical connector.
    2. If equipped, disconnect the clock electrical connector.
    3. Disconnect the passenger air bag deactivation (PAD) indicator.
    4. Remove the trim panel.

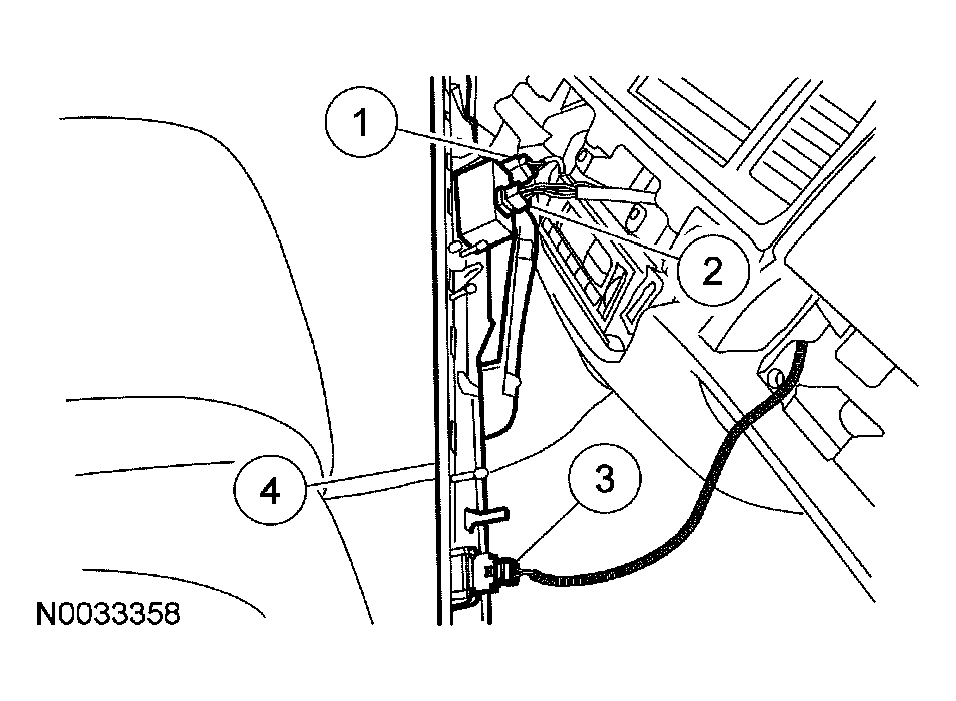

      Fig 11: Disconnecting Passenger Air Bag Deactivation (PAD) Indicator
      G04586472Courtesy of FORD MOTOR CO.
  19. Open the glove compartment. Disconnect the glove compartment isolator.
  20. While pushing in on the 2 glove compartment door tabs, position the glove compartment downward.
    Fig 12: Pushing Glove Compartment Door Tabs
    G04586473Courtesy of FORD MOTOR CO.
  21. Looking up into the front center of the glove compartment opening, separate the passenger air bag module electrical connector and pin-type retainer from the bracket. Disconnect the passenger air bag module electrical connector.

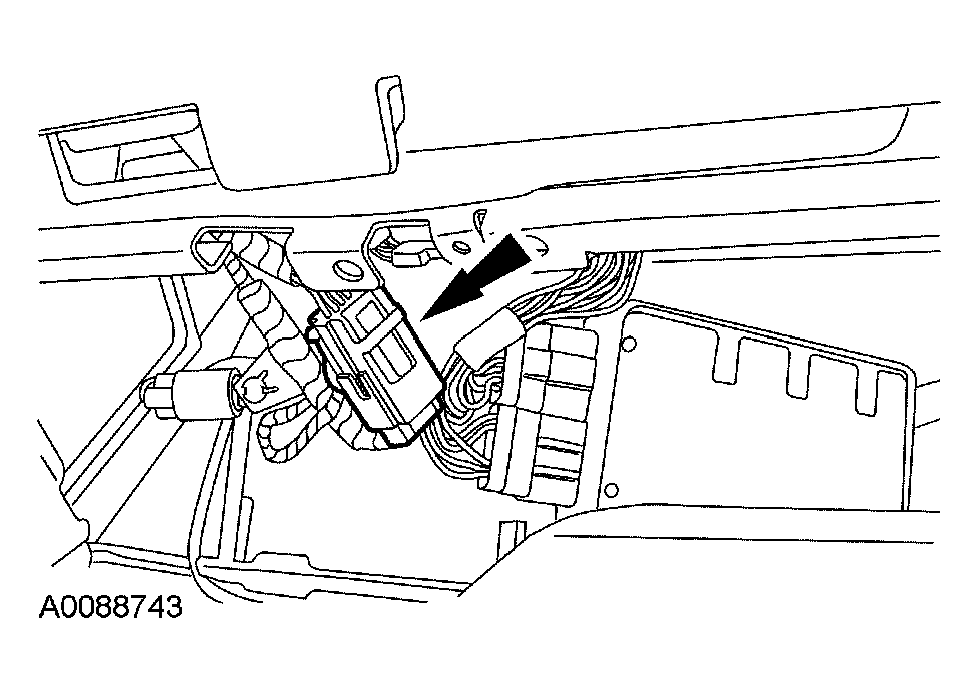

    Fig 13: Disconnecting Passenger Air Bag Module Electrical Connector
    G04586474Courtesy of FORD MOTOR CO.

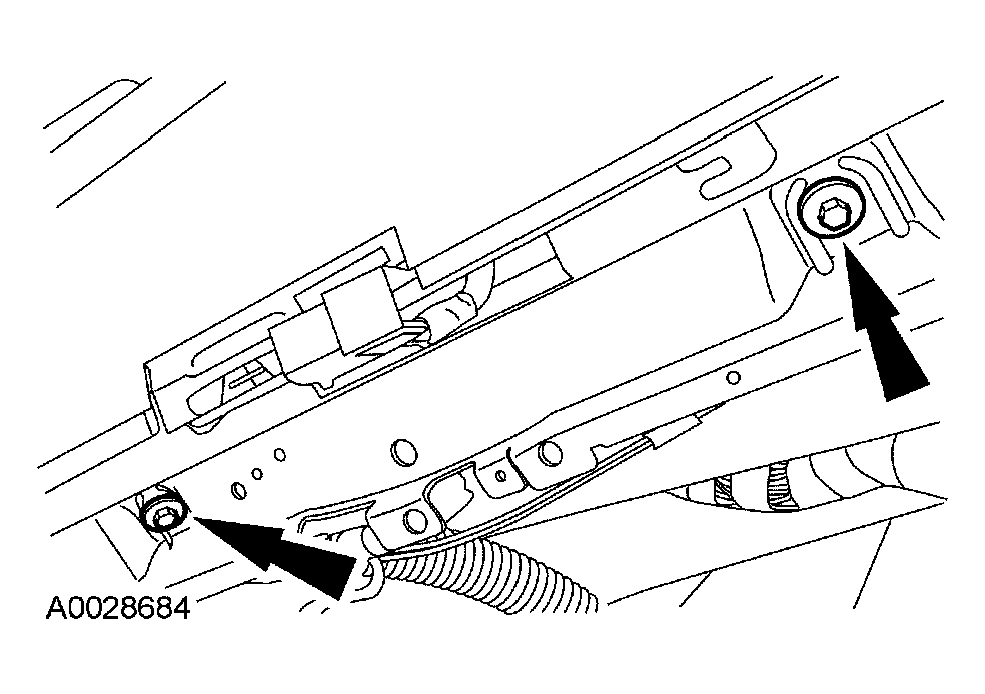

  22. Through the glove compartment opening, remove the 2 passenger air bag module bolts.
    Fig 14: Removing Passenger Air Bag Module Bolts
    G04586475Courtesy of FORD MOTOR CO.
    23. CAUTION: Do not handle the passenger air bag module by grabbing the edges of the deployment doors.
  23. Remove the passenger air bag module.
    1. Remove the 2 passenger air bag module bolts.
    2. Placing one hand in the glove compartment opening, push the passenger air bag module out and remove it.
      Fig 15: Removing Passenger Air Bag Module Bolts
      G04586476Courtesy of FORD MOTOR CO.
    24. CAUTION: Care must be taken to prevent damage to the passenger air bag module electrical connectors and locking inserts.
  24. Gently pry each side of the passenger air bag module jumper harness electrical connector locking insert, working alternately side to side, until the locking insert separates from the electrical connector.
    • Repeat to separate the locking insert from the remaining passenger air bag module jumper harness electrical connector.

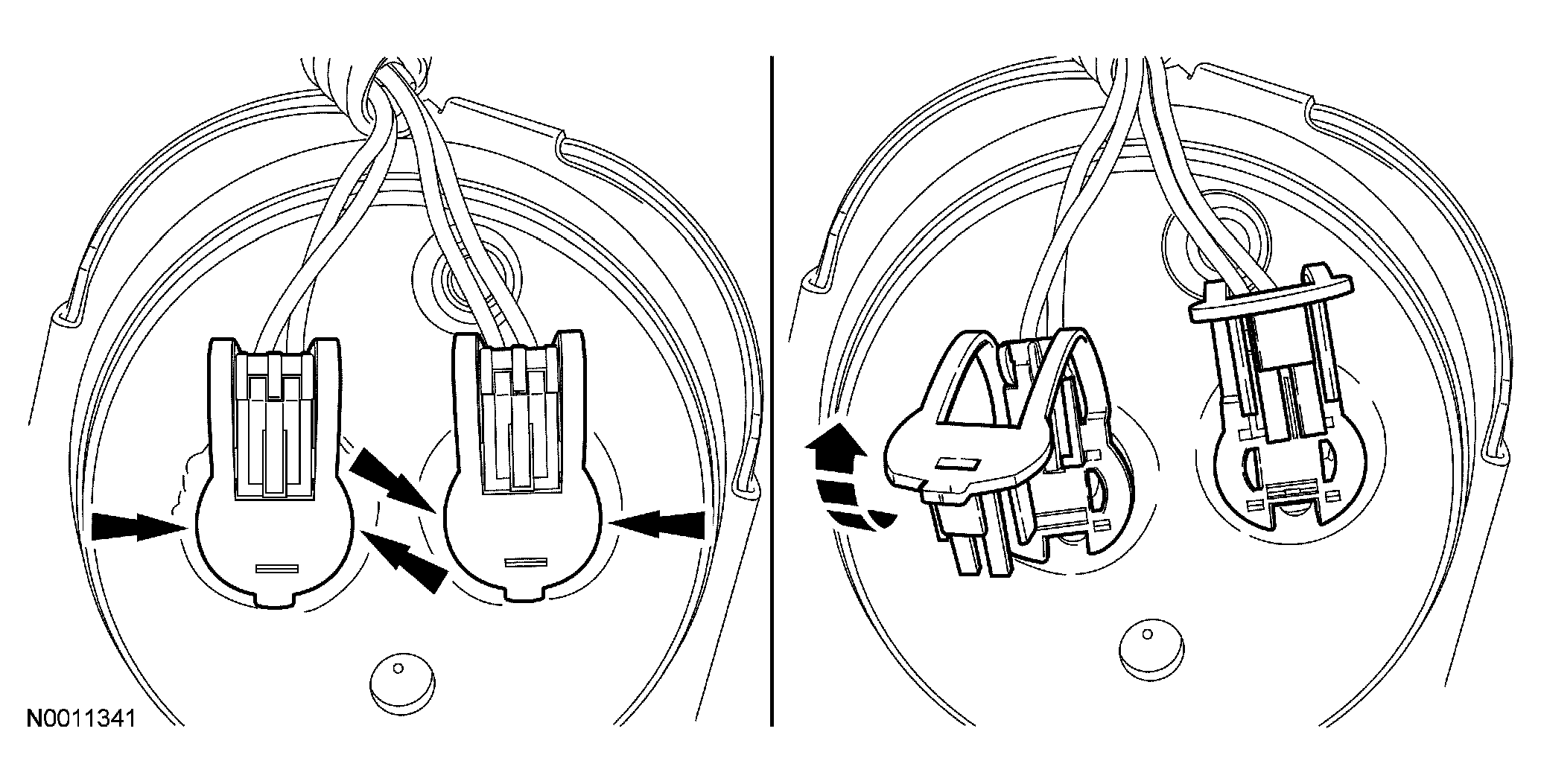

      Fig 16: Separating Locking Insert From Passenger Air Bag Module Jumper Harness Electrical Connector
      G04586477Courtesy of FORD MOTOR CO.
    25. CAUTION: Care must be taken to prevent damage to the passenger air bag module electrical connectors.

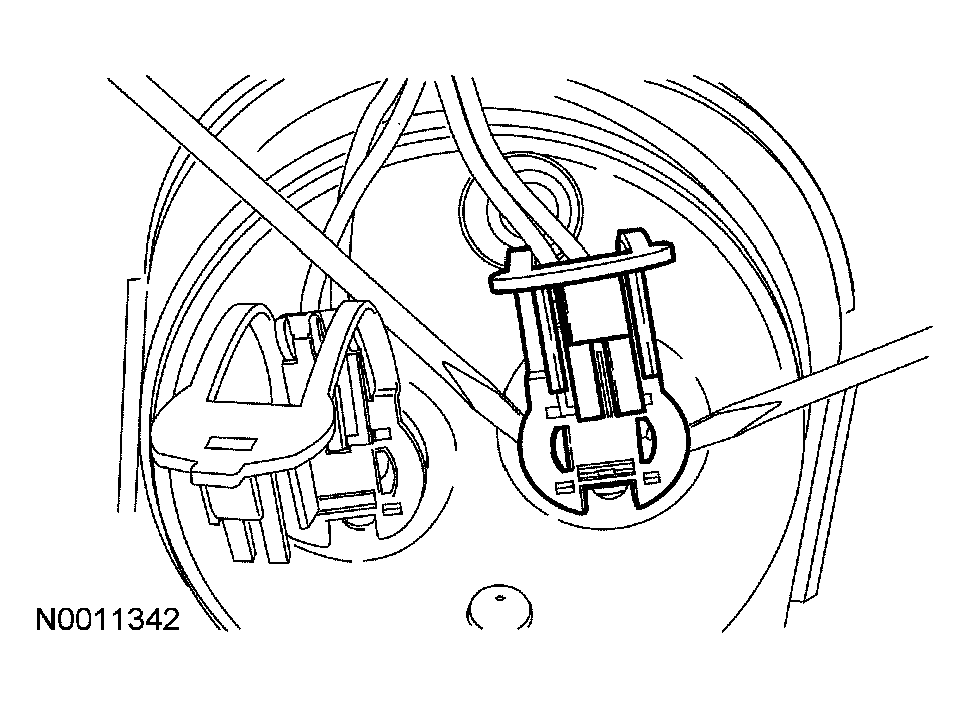

  25. Using suitable tools (such as small screwdrivers), carefully depress the 2 locking tabs on the side of the passenger air bag module jumper harness electrical connector and disconnect the electrical connector.
    • Repeat to disconnect the remaining passenger air bag module jumper harness electrical connector and remove the passenger air bag module jumper harness from the passenger air bag module.
      Fig 17: Disconnecting Electrical Connector
      G04586478Courtesy of FORD MOTOR CO.
    26. CAUTION: Carefully align the locking inserts to the electrical connectors or damage may result.

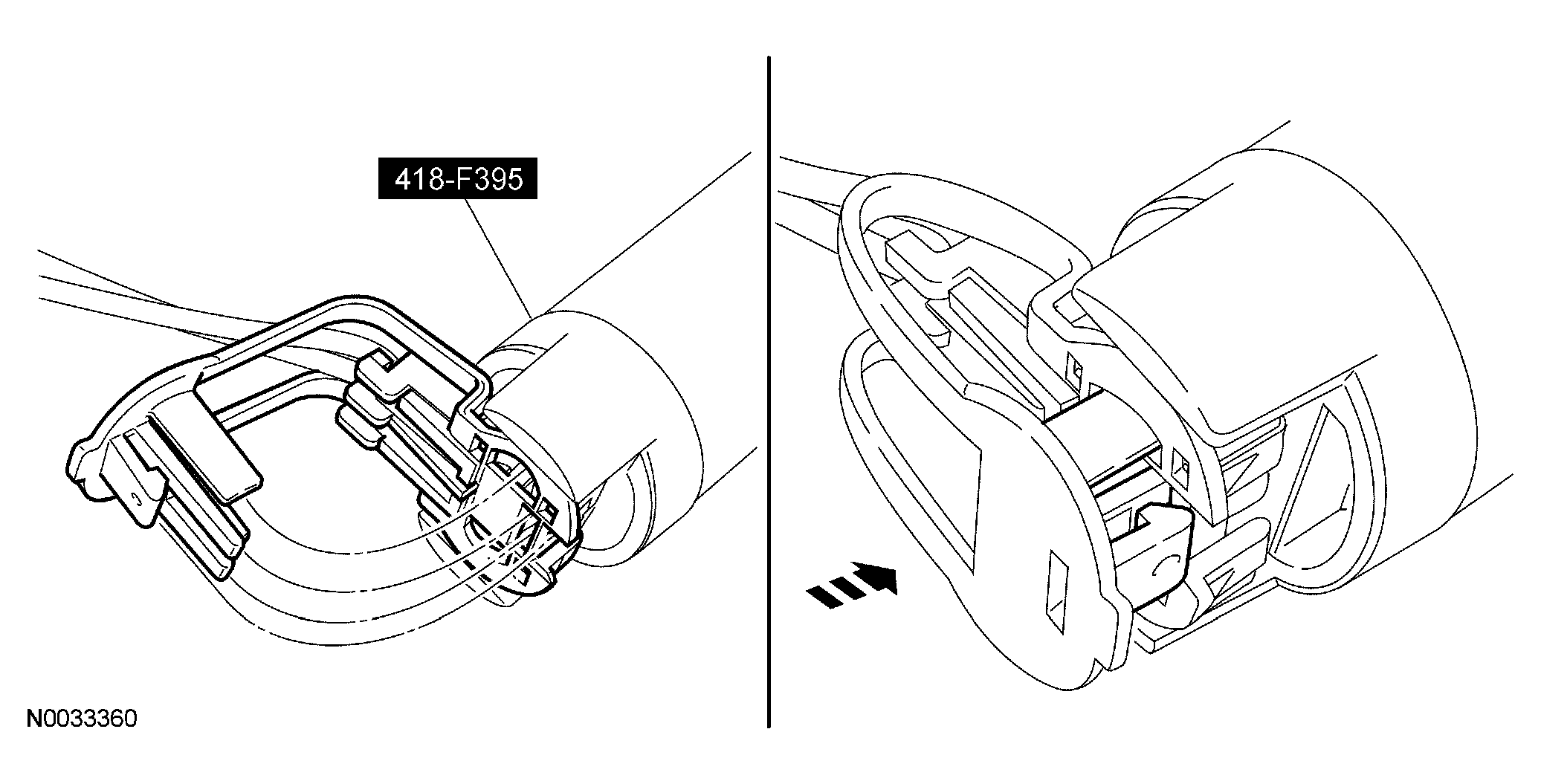

    Fig 18: Installing Restraint System Diagnostic Tools
    G04586479Courtesy of FORD MOTOR CO.
  26. Attach the 2 restraint system diagnostic tools (1 shown) to the 2 passenger air bag module jumper harness electrical connectors and align and install the locking inserts to the electrical connectors.

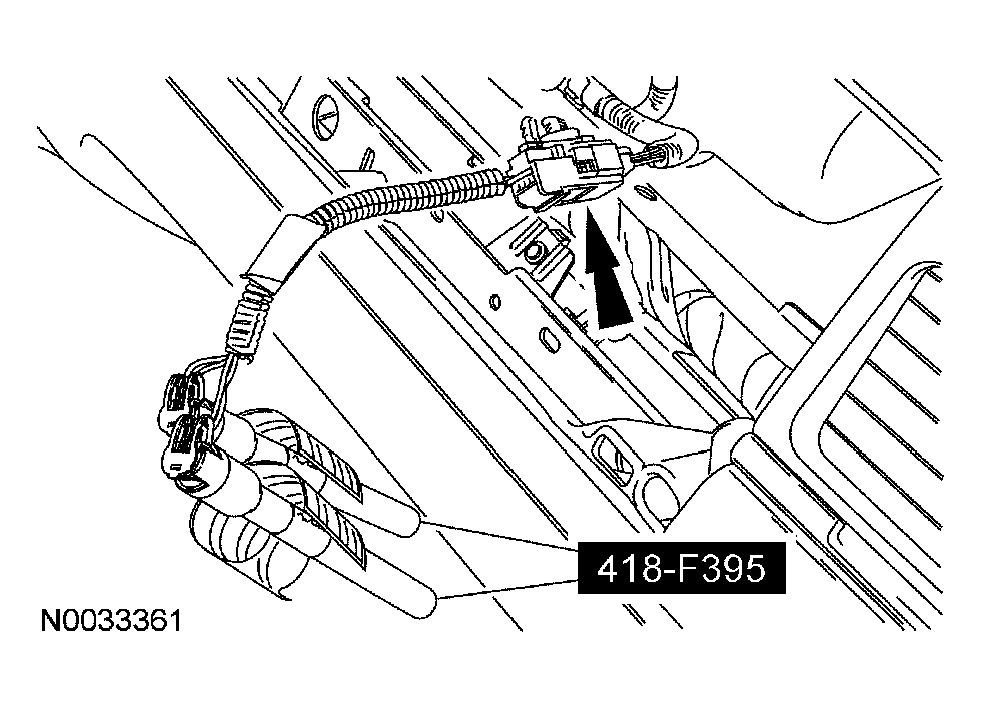

  27. Connect the passenger air bag module jumper harness to the passenger air bag module electrical connector on the vehicle wiring harness.
    Fig 19: Connecting Passenger Air Bag Module Jumper Harness To Passenger Air Bag Module Electrical Connector
    G04586480Courtesy of FORD MOTOR CO.

    28. Vehicles without side air bags

    CAUTION: Do not deactivate the side air bag module circuit by removing the side air bag bridge resistor from the side air bag electrical connector.
  28. If the side air bag bridge resistor is removed, an open circuit fault will be generated by the restraints control module (RCM).

    If a restraint system diagnostic tool is installed, a low resistance fault will be generated by the RCM .

    29. Vehicles with side air bags

    NOTE: If the front seat outboard side bolsters have the word "AIRBAG" embossed on them, the vehicle is equipped with side air bag modules.

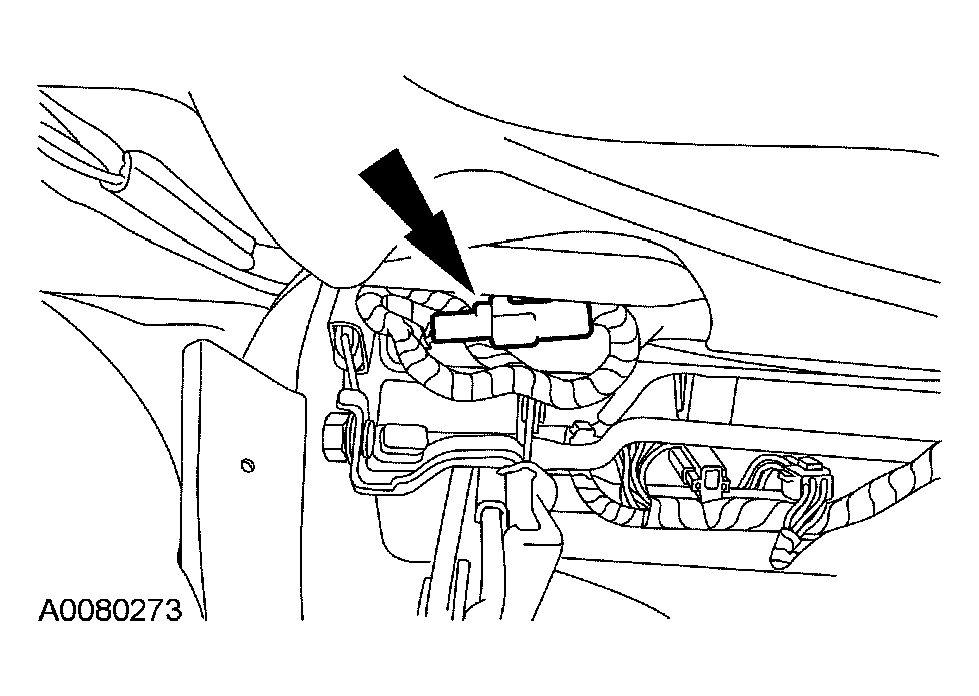

    Fig 20: Disconnecting Passenger Seat Side Air Bag Module Electrical Connector
    G04586481Courtesy of FORD MOTOR CO.
  29. Disconnect the passenger seat side air bag module electrical connector, located at the lower rear of the seat cushion pan.

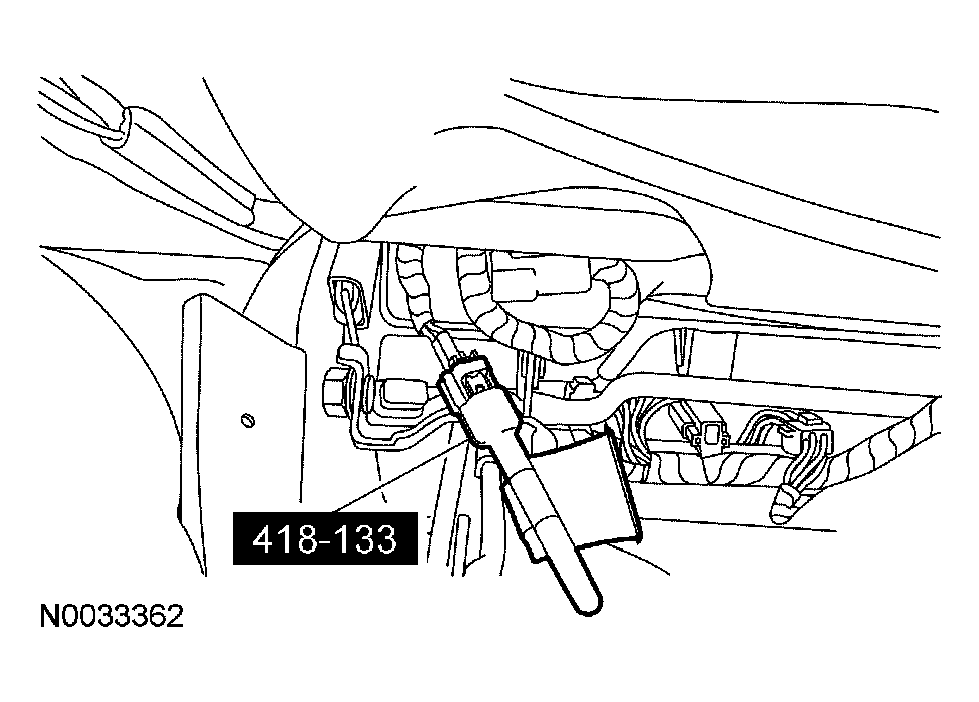

  30. Attach the restraint system diagnostic tool to the seat harness side of the passenger seat side air bag module electrical connector.
    Fig 21: Attaching Restraint System Diagnostic Tool To Seat Harness Side Of Passenger Seat Side Air Bag Module Electrical Connector
    G04586482Courtesy of FORD MOTOR CO.
  31. Disconnect the driver seat side air bag module electrical connector, located at the lower rear of the seat cushion pan.

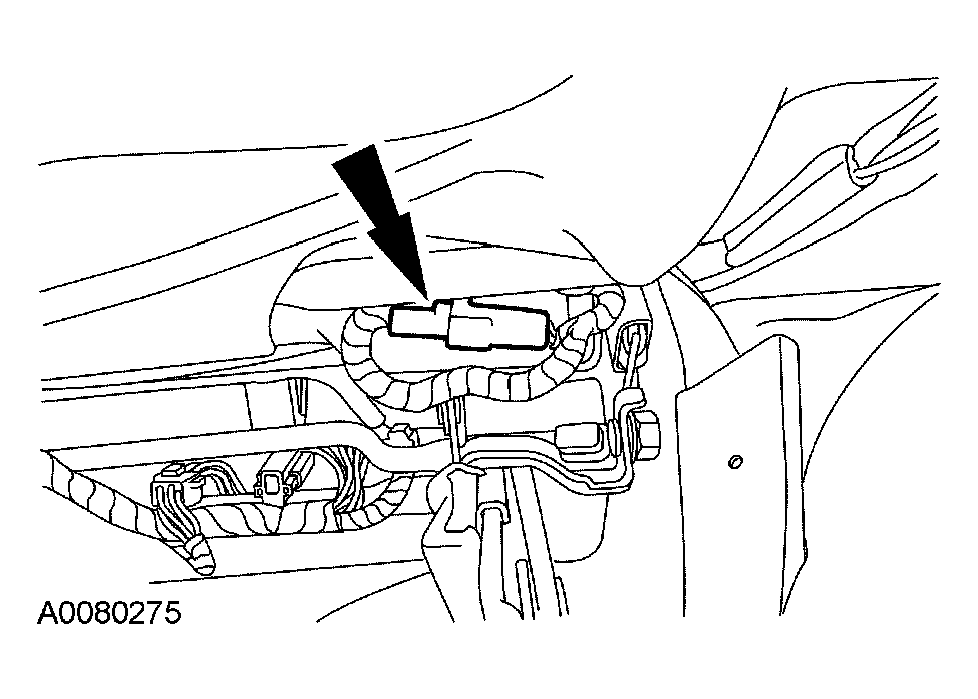

    Fig 22: Disconnecting Driver Seat Side Air Bag Module Electrical Connector
    G04586483Courtesy of FORD MOTOR CO.
  32. Attach restraint system diagnostic tool to the seat harness side of the driver seat side air bag module electrical connector.

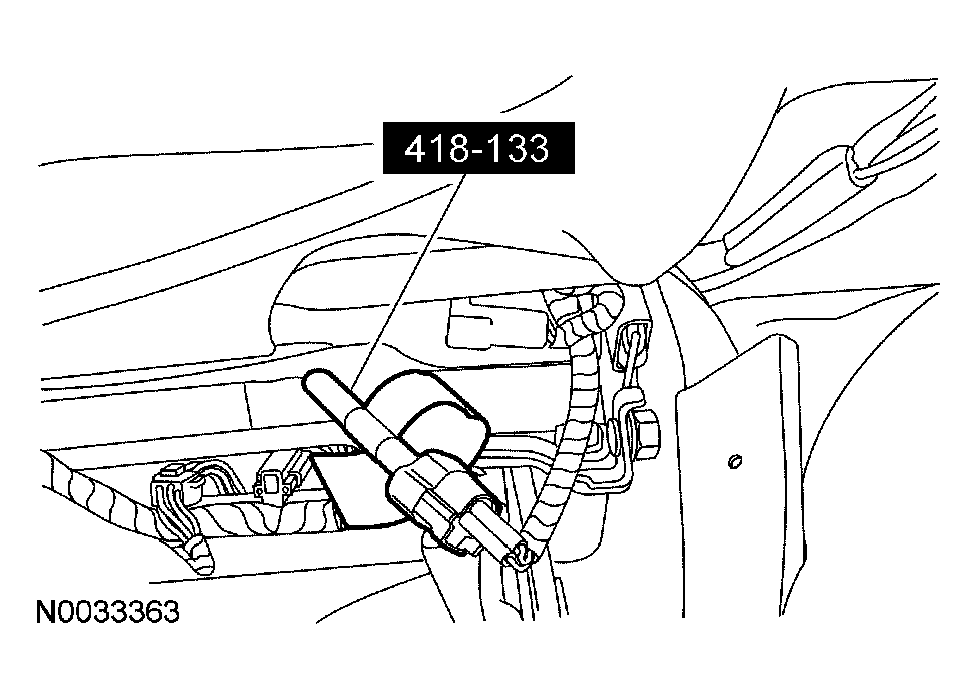

    Fig 23: Attaching Restraint System Diagnostic Tool To Seat Harness Side Of Driver Seat Side Air Bag Module Electrical Connector
    G04586484Courtesy of FORD MOTOR CO.

    33. All vehicles

  33. Install the RCM fuse 22 (10A) to the CJB.
  34. Connect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
