Removal and Installation

WARNING: This page is about a different car, the 2006 Mercury Grand Marquis and 2006 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

Remove the wiper mounting arm and pivot shaft assembly. For additional information, refer to WIPER MOUNTING ARM AND PIVOT SHAFT .
Remove the windshield wiper motor cover.
Remove the drive link bolt and position aside the wiper motor linkage.
- To install, tighten to 20 Nm (15 lb-ft).

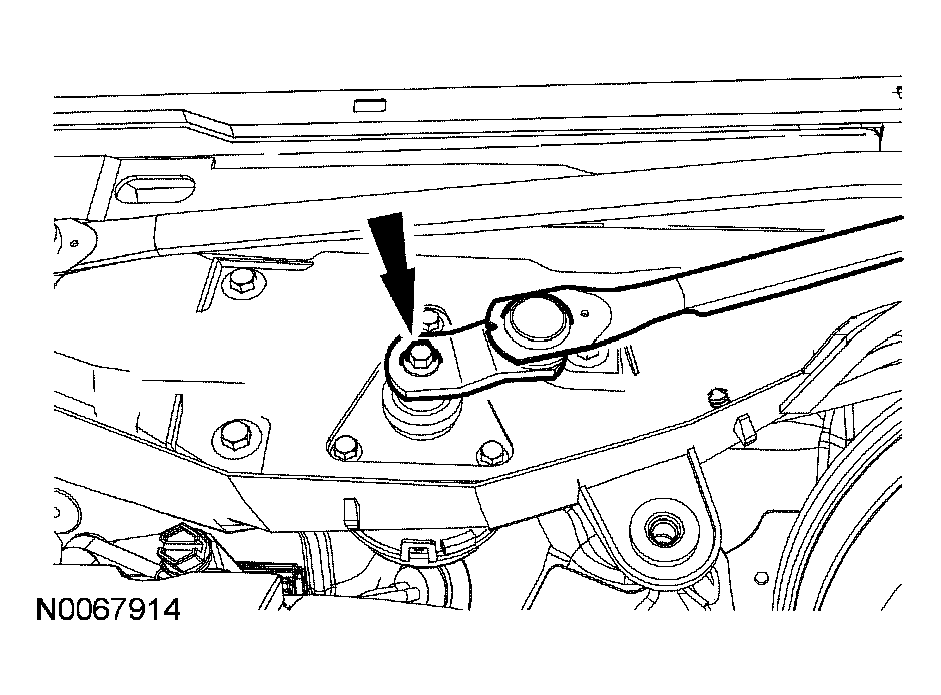

  Fig 1: Removing Drive Link Bolt
  Courtesy of FORD MOTOR CO.
Remove the 3 bolts and remove the windshield wiper motor.
- To install, tighten to 10 Nm (89 lb-in).

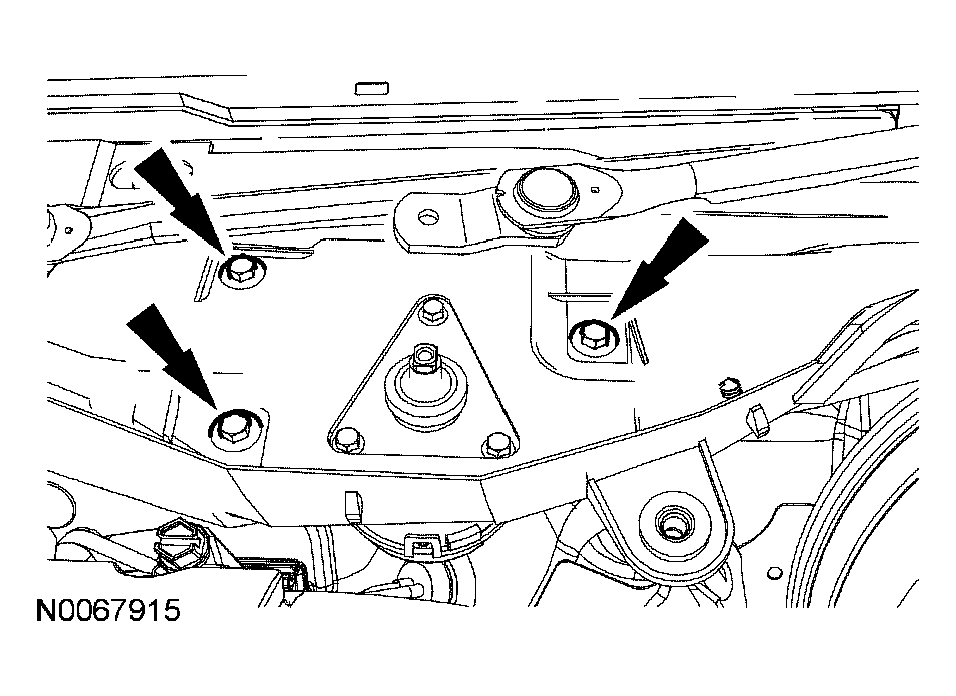

  Fig 2: Removing Windshield Wiper Motor Bolts
  Courtesy of FORD MOTOR CO.
Remove the wiper motor shaft dust bushing and the 3 wiper motor-to-bracket bolts.
- To install, tighten to 10 Nm (89 lb-in).

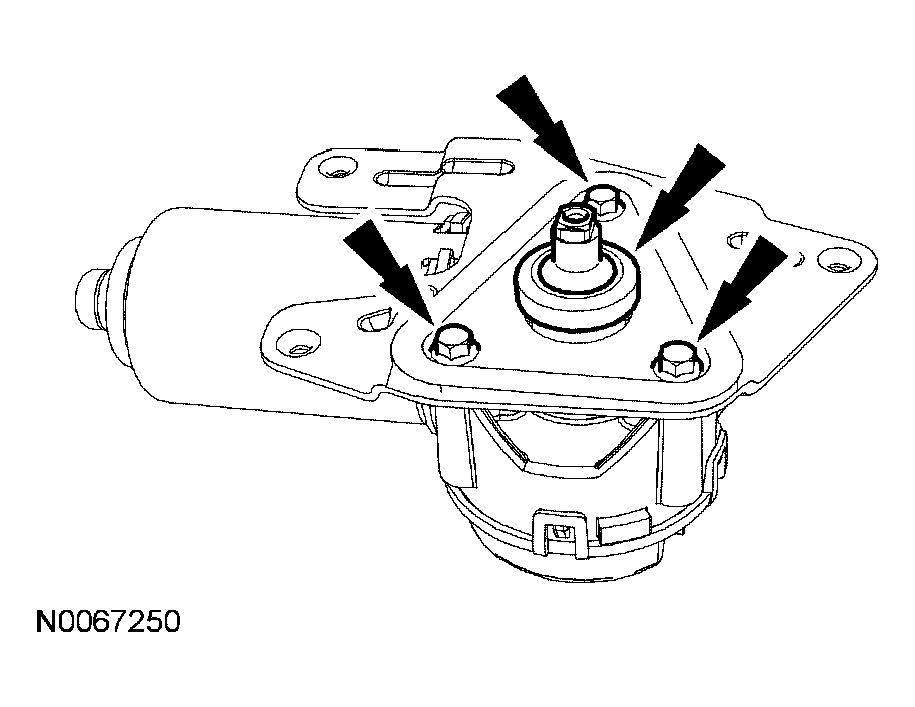

  Fig 3: Removing Wiper Motor Shaft Dust Bushing And Wiper Motor-To-Bracket Bolts
  Courtesy of FORD MOTOR CO.
Remove the wiper motor bracket.
To install, reverse the removal procedure.
