Removal and Installation

WARNING: This page is about a different car, the 2006 Mercury Grand Marquis and 2006 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery. For additional information, refer to BATTERY, MOUNTING AND CABLES .
Remove the steering wheel. For additional information, refer to STEERING COLUMN .
Remove the tilt wheel handle and shank.
Remove the 3 screws and the lower steering column shroud.

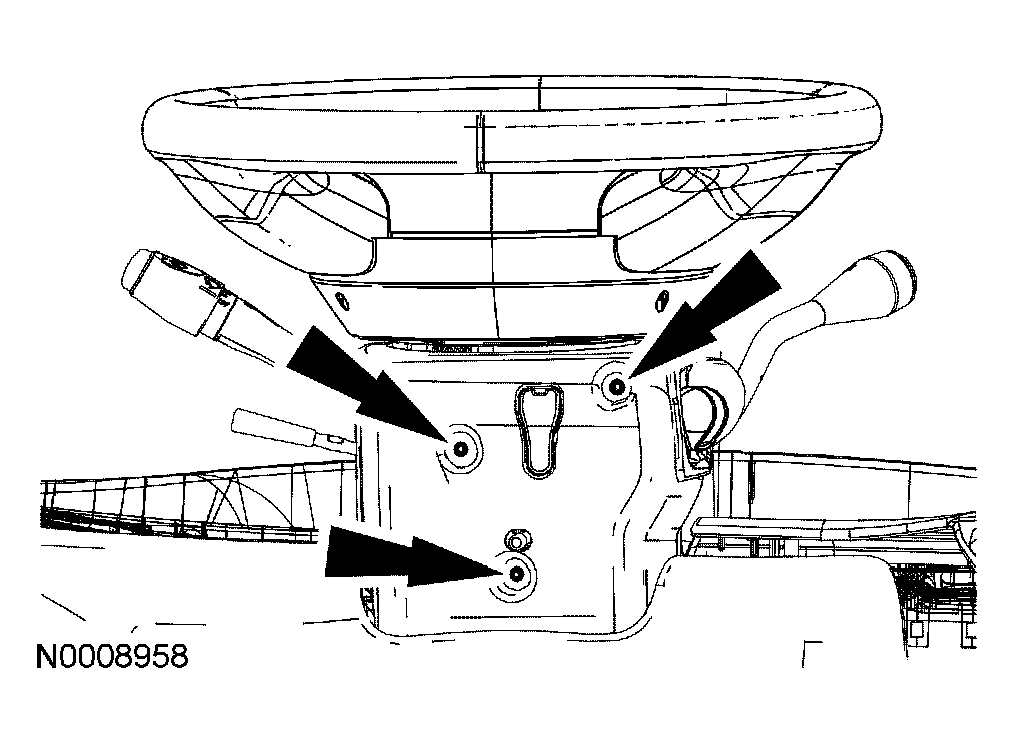

Fig 1: Removing Screws And Lower Steering Column Shroud
Courtesy of FORD MOTOR CO.
If equipped, position the shift selector boot aside.
Twist off the cap from the ignition lock cylinder.

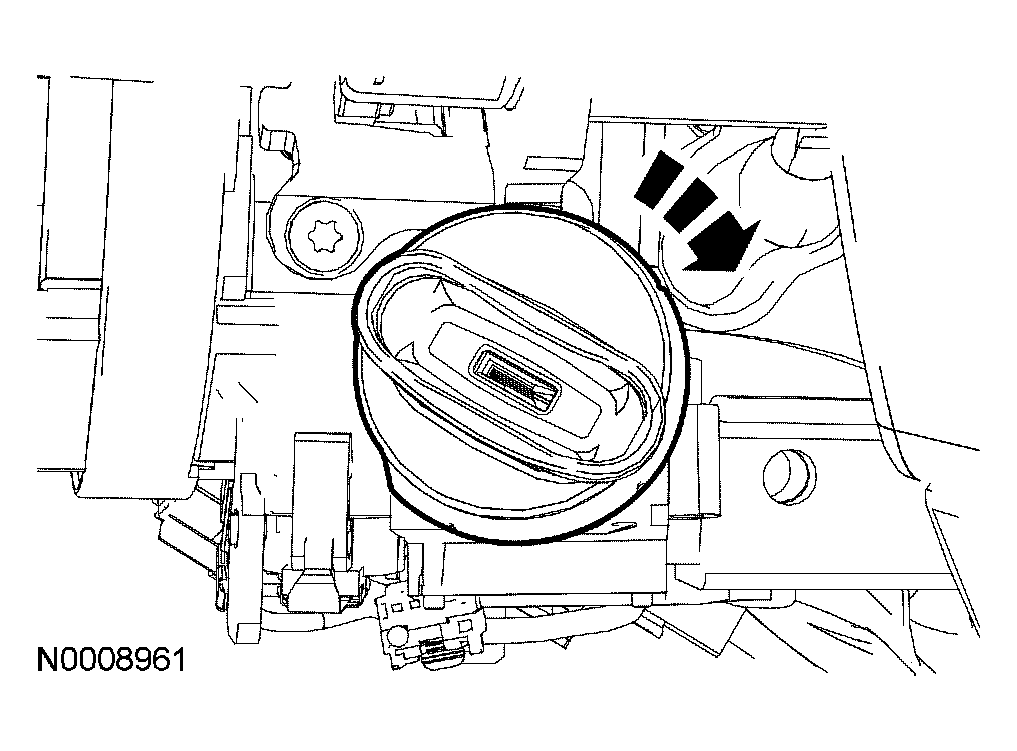

Fig 2: Twisting Off Cap From Ignition Switch Lock Cylinder
Courtesy of FORD MOTOR CO.
Release the tabs and slide the passive anti-theft system (PATS) transceiver off the steering column.
Disconnect the electrical connector and remove the PATS transceiver.
Use a 1/8-inch diameter drill bit to drill out the lock cylinder retaining pin.

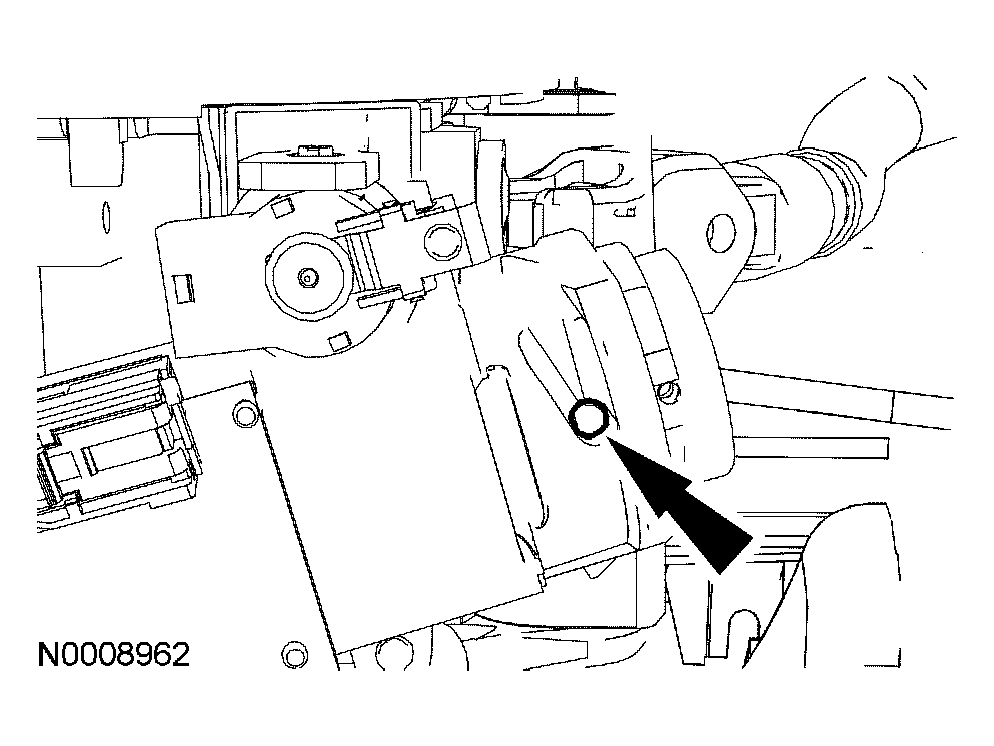

Fig 3: Drilling Out Lock Cylinder Retaining Pin
Courtesy of FORD MOTOR CO.
Use a 3/8-inch diameter drill to drill down the middle of the ignition lock cylinder key slot until the ignition lock cylinder breaks loose.

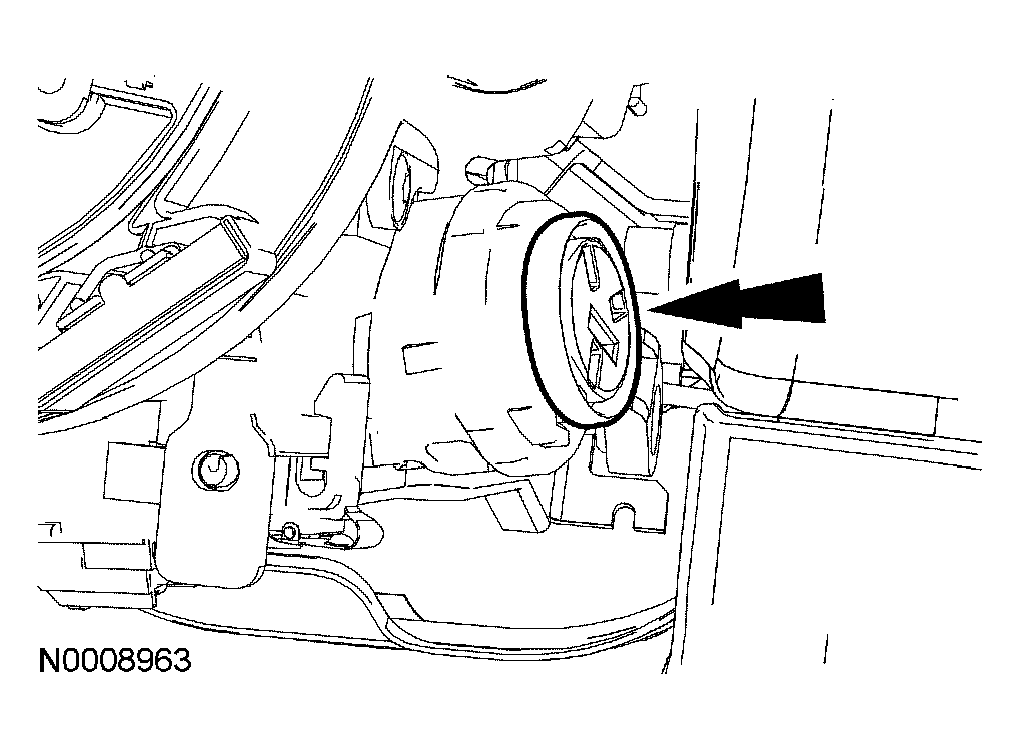

Fig 4: Drilling Down Middle Of Ignition Lock Key Slot
Courtesy of FORD MOTOR CO.
Remove and discard the ignition lock cylinder and drill shavings from the steering column.
- Thoroughly clean all drill shavings from the steering column and inspect it for damage.
To install, reverse the removal procedure.
