Window Glass - Rear Quarter: Removal

WARNING: This page is about a different car, the 2006 Mercury Grand Marquis and 2006 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear door window glass. For additional information, refer to WINDOW GLASS - REAR DOOR .
    2. CAUTION: If the rear door window garnish moulding becomes kinked, it is no longer usable and a new moulding must be installed.
  2. Remove the rear door window interior garnish moulding.
    3. NOTE: Pull the quarter glass forward to loosen the rear door top glass run assembly.

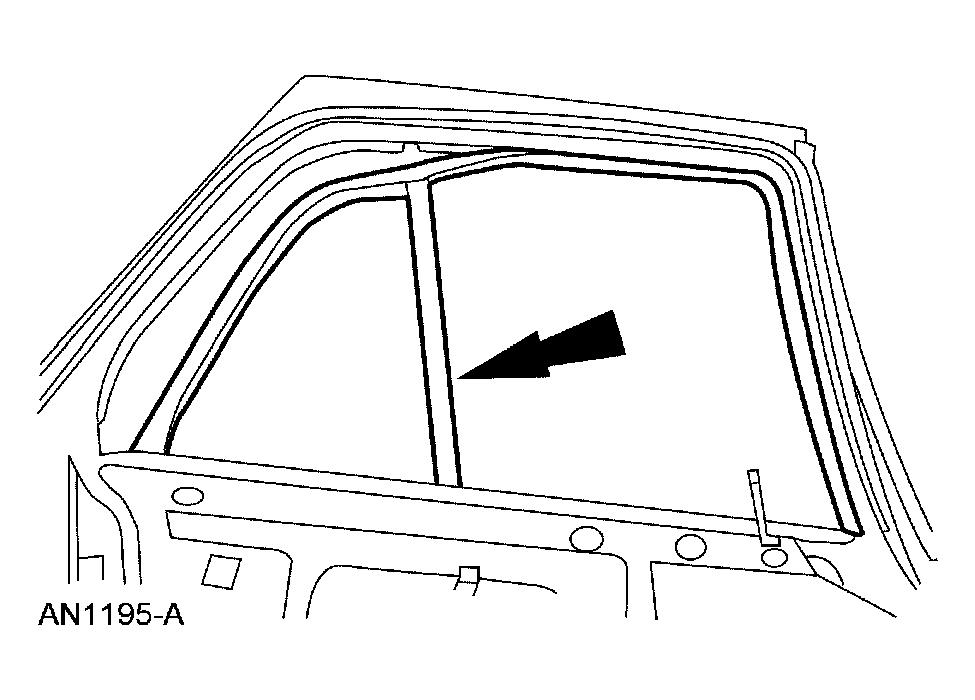

    Fig 1: Removing Rear Door Top Glass Run And Quarter Window Glass
    G04586118Courtesy of FORD MOTOR CO.
  3. Remove the rear door top glass run and quarter window glass as an assembly.
