Window Glass - Rear Quarter: Installation

WARNING: This page is about a different car, the 2006 Mercury Grand Marquis and 2006 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Make sure to install the quarter window glass into the glass channel.

Fig 1: Positioning Quarter Glass Into Door Frame

Courtesy of FORD MOTOR CO.

Position the quarter glass into the door frame.

NOTE: For correct rear door glass fit and function, the glass run division bar locator must be fully forward in the rear door header notch.

Install the window division bar.
Push the run firmly into the C-pillar flange.

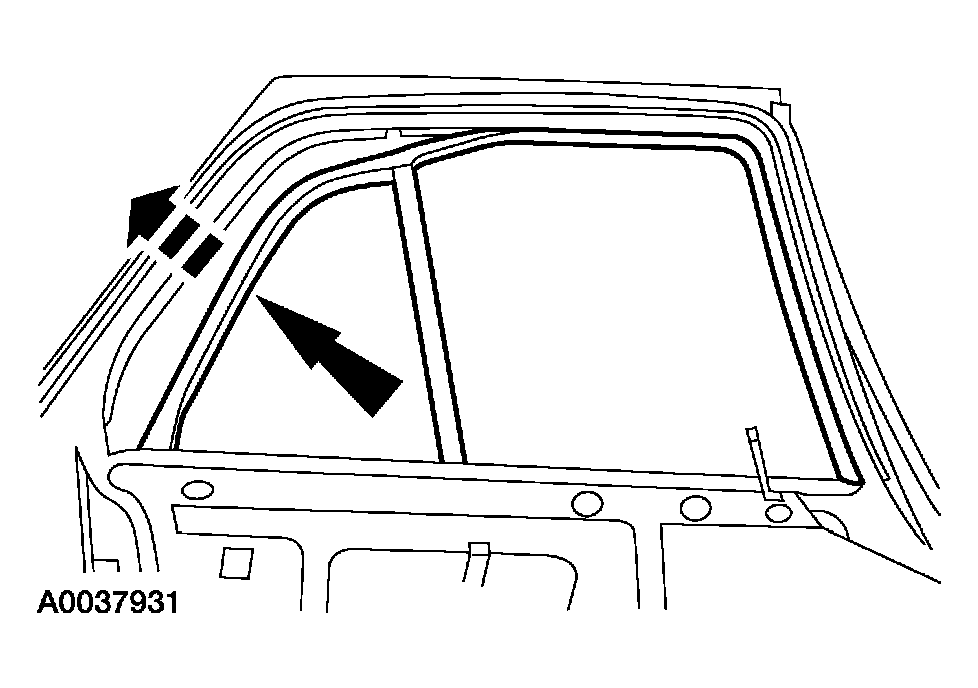

Fig 2: Pushing Run Firmly Into C-Pillar Flange
Courtesy of FORD MOTOR CO.
Install the run at the B-pillar upper corner.

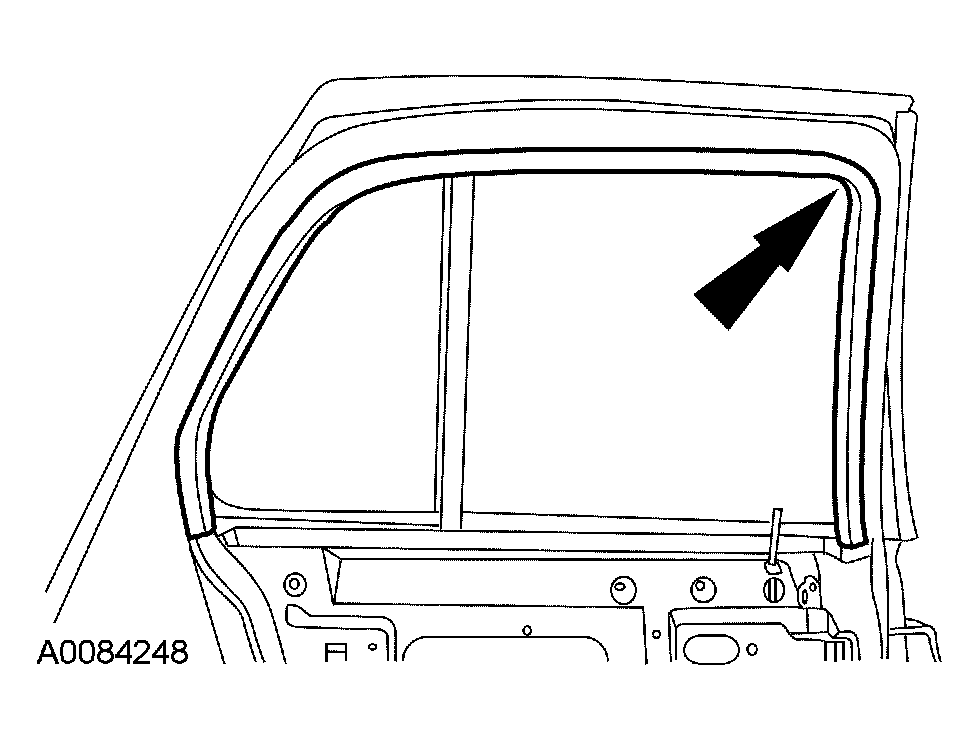

Fig 3: Installing Run At B-Pillar Upper Corner
Courtesy of FORD MOTOR CO.
Push the run into the B-pillar flange.

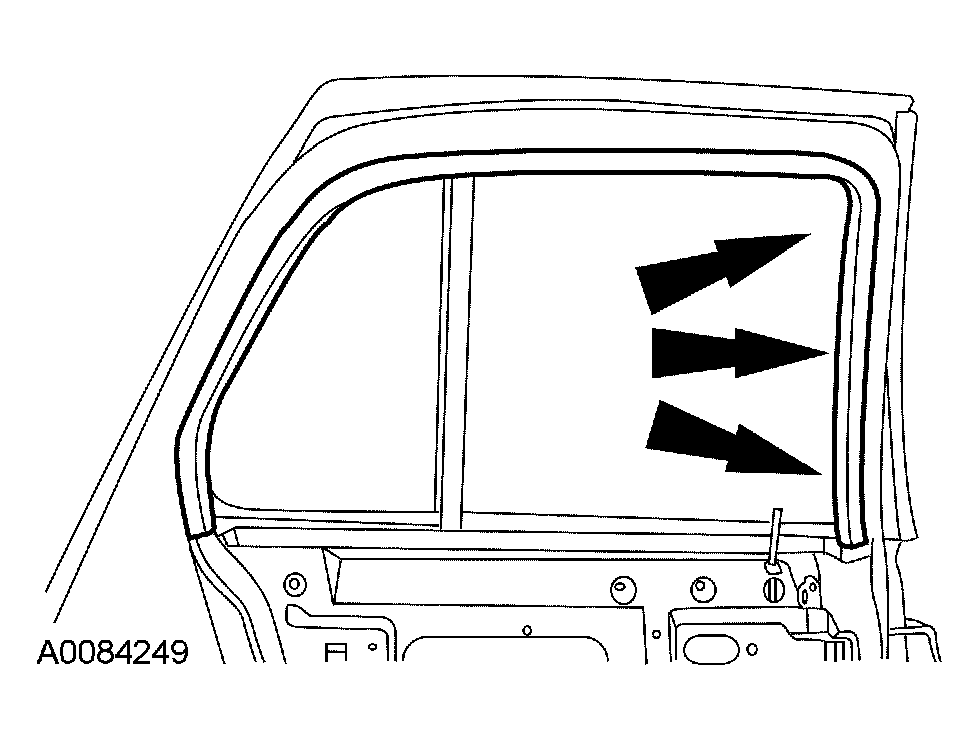

Fig 4: Pushing Run Into B-Pillar Flange
Courtesy of FORD MOTOR CO.
Push the run into the header of the door.

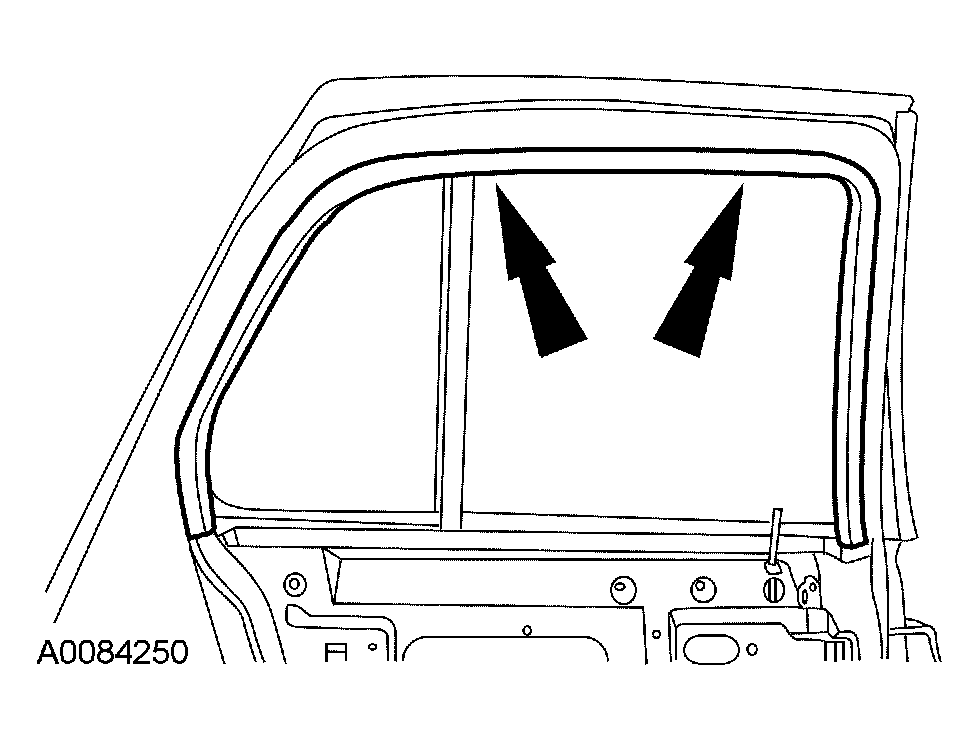

Fig 5: Pushing Run Into Header Of Door
Courtesy of FORD MOTOR CO.
Install the side glass into the glass run. For additional information, refer to WINDOW GLASS - REAR DOOR .
