Glass, Frames and Mechanisms - Exploded View, Front Door
WARNING: This page is about a different car, the 2006 Mercury Grand Marquis and 2006 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
RH front door shown, LH front door similar.

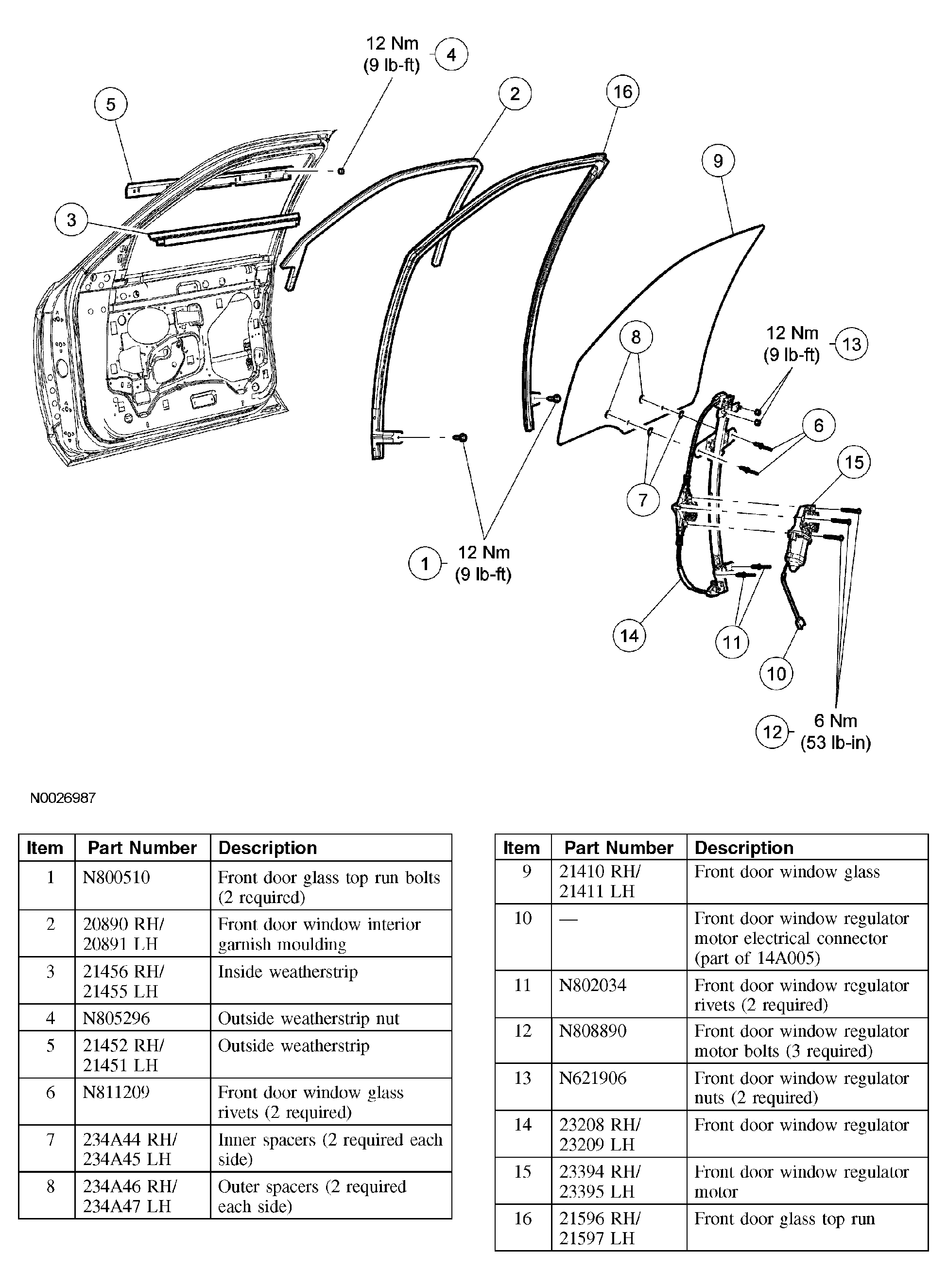

Fig 1: Exploded View Of Glass, Frames And Mechanisms - Front Door
Courtesy of FORD MOTOR CO.
For additional information, refer to the procedures in this article.
