Removal and Installation

WARNING: This page is about a different car, the 2006 Mercury Grand Marquis and 2006 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Always wear safety glasses when repairing an air bag supplemental restraint system (SRS) vehicle and when handling an air bag module. This will reduce the risk of injury in the event of an accidental deployment.
WARNING: Never probe the connectors on the air bag module. Doing so can result in air bag deployment, which can result in personal injury.
WARNING: To reduce the risk of personal injury, do not use any memory saver devices.
CAUTION: Use care when handling the seat and track assembly. Dropping the assembly or sitting on a seat not secured in the vehicle may result in damaged components.
NOTE: If a seat equipped with a supplemental restraint system (SRS) component is being serviced, the SRS must be depowered.
NOTE: The air bag warning lamp illuminates when the RCM fuse is removed and the ignition switch is ON. This is normal operation and does not indicate a supplemental restraint system (SRS) fault.
NOTE: The SRS must be fully operational and free of faults before releasing the vehicle to the customer.
NOTE: Driver side shown, passenger side similar (except where indicated).

    All seat tracks

  1. Position the seat to access the fasteners.
  2. Depower the SRS. For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING in the General Procedures.
  3. Remove the affected seat. For additional information, refer to SEAT - FRONT .

    4. Driver seat track only

  4. Disconnect the safety belt buckle electrical connector.
    5. NOTE: At installation, make sure the safety belt buckle is accessible to the occupant.
  5. Remove the nut and the safety belt buckle.
    • To install, tighten to 40 Nm (30 lb-ft).

    6. Passenger seat track only

    NOTE: At installation, make sure the safety belt buckle is accessible to the occupant.
  6. Remove the safety belt buckle with belt tension sensor.
    1. Disconnect the electrical connector.
    2. Remove the nut.
      • To install, tighten to 40 Nm (30 lb-ft).
    3. Remove the safety belt buckle with belt tension sensor.

    7. All seat tracks

  7. Release the cushion trim cover rear J-clip.

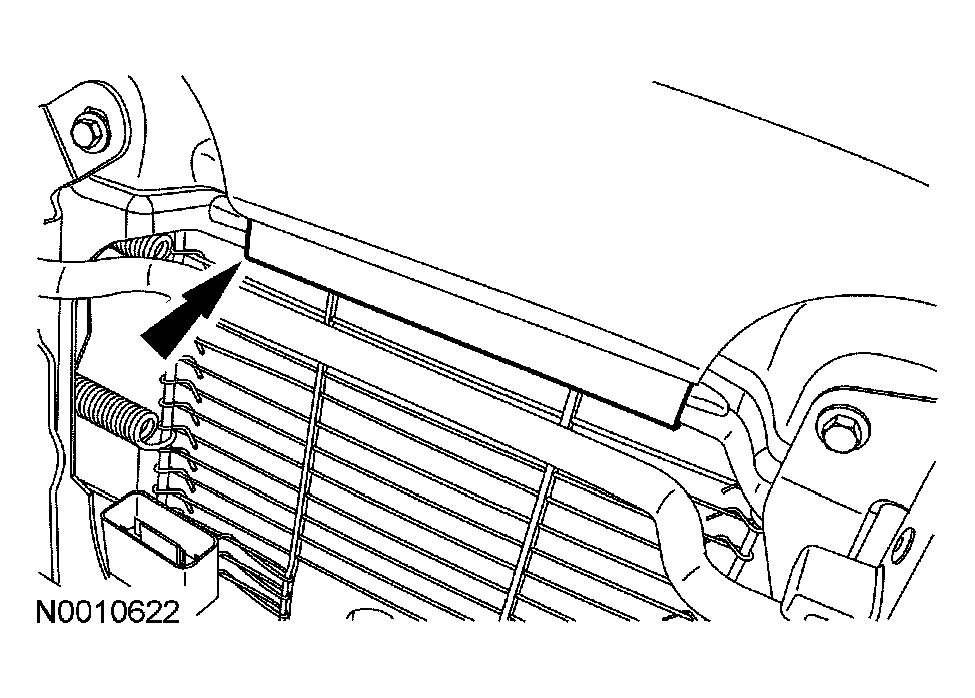

    Fig 1: Releasing Cushion Trim Cover Rear J-Clip
    G04585983Courtesy of FORD MOTOR CO.
  8. Release the cushion trim cover rear hook and loop strip.

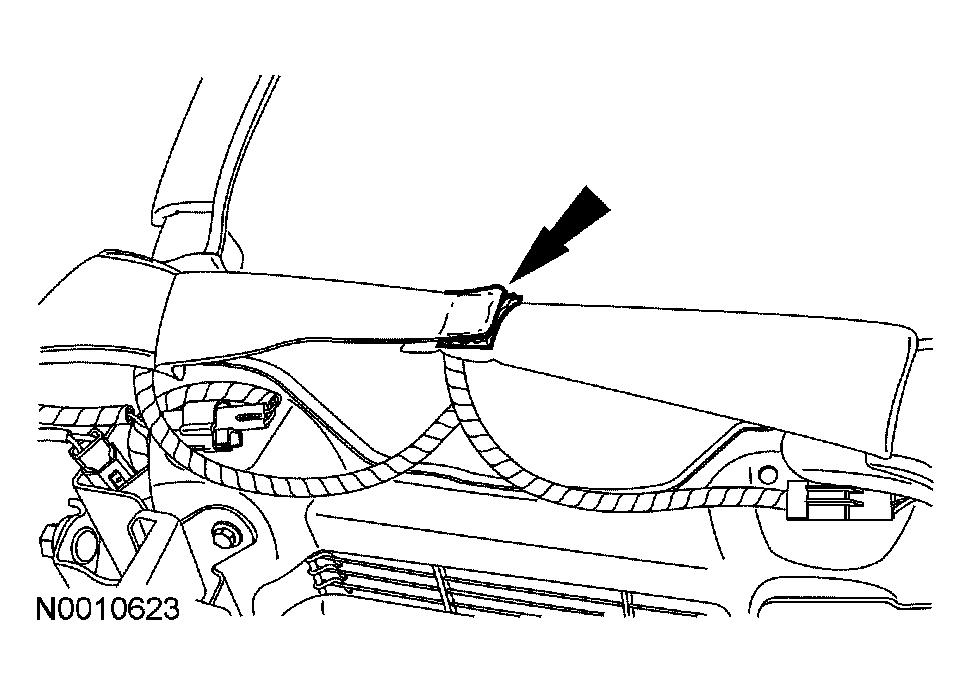

    Fig 2: Releasing Cushion Trim Cover Rear Hook And Loop Strip
    G04585984Courtesy of FORD MOTOR CO.
  9. Release the J-clip.

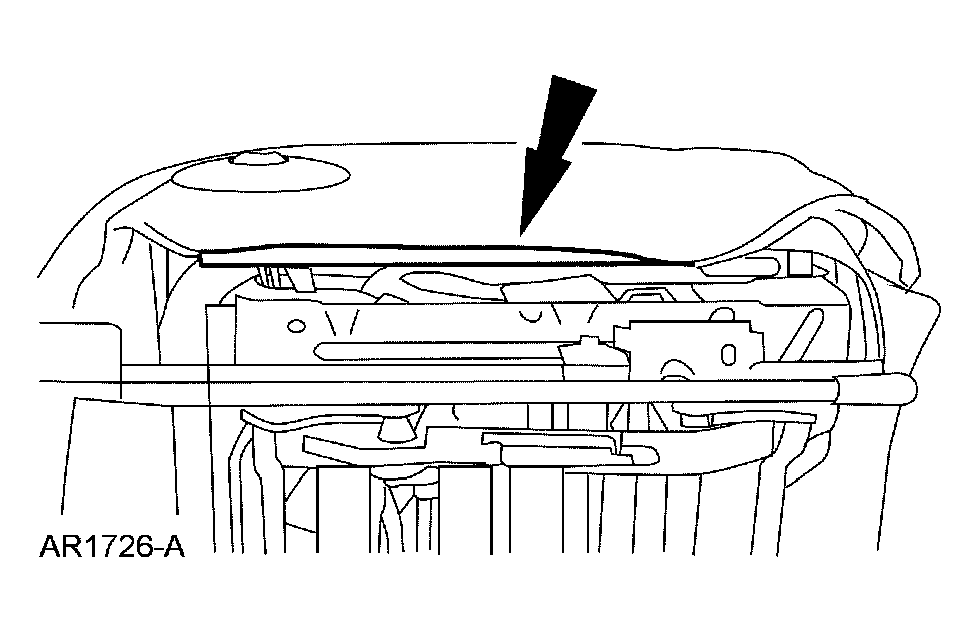

    Fig 3: Releasing J-Clip
    G04585985Courtesy of FORD MOTOR CO.
  10. Detach the electrical connector.

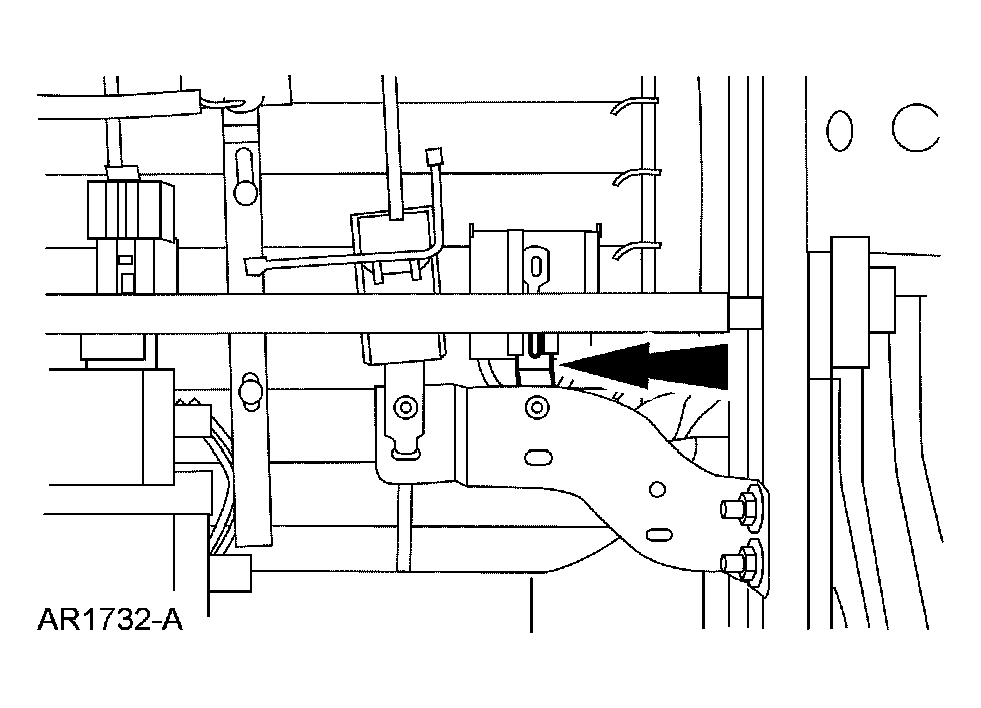

    Fig 4: Detaching Electrical Connector
    G04585986Courtesy of FORD MOTOR CO.

    11. Driver seat track

  11. Disconnect the seat position sensor electrical connector.

    12. Power seat tracks

  12. Remove the 2 recliner-to-seat track bolts.
    • To install, tighten to 52 Nm (38 lb-ft).

    13. Manual seat tracks

  13. Remove the 2 recliner-to-seat track bolts.
    • To install, tighten to 55 Nm (41 lb-ft).

    14. All seat tracks

  14. Remove the pivot bolt.
    • To install, tighten to 45 Nm (33 lb-ft).
  15. Remove the seat track.
    • Disconnect any electrical connectors still attached.
    • Remove the 4 seat track-to-cushion frame bolts and seat track.
      • To install, tighten to 20 Nm (15 lb-ft).
  16. To install, reverse the removal procedure.
  17. Install the affected seat. For additional information, refer to SEAT - FRONT .
  18. Repower the SRS. For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING in the General Procedures.
