Seat - Front: Removal

WARNING: This page is about a different car, the 2006 Mercury Grand Marquis and 2006 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Always wear safety glasses when repairing an air bag supplemental restraint system (SRS) vehicle and when handling an air bag module. This will reduce the risk of injury in the event of an accidental deployment.
WARNING: After deployment, the air bag surface can contain deposits of sodium hydroxide, a product of the gas generant combustion that is irritating to the skin. Wash your hands with soap and water afterwards.
WARNING: Never probe the connectors on the air bag module. Doing so can result in air bag deployment, which can result in personal injury.
WARNING: To reduce the risk of personal injury, do not use any memory saver devices.
NOTE: If a seat equipped with a supplemental restraint system (SRS) component is being serviced, the SRS must be depowered.
NOTE: The air bag warning lamp illuminates when the RCM fuse is removed and the ignition switch is ON. This is normal operation and does not indicate a supplemental restraint system (SRS) fault.
NOTE: The SRS must be fully operational and free of faults before releasing the vehicle to the customer.
NOTE: Driver side shown, passenger side similar.
  1. Position the seat to allow access to the front and rear retainers.
  2. Depower the SRS. For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING in the General Procedures.
  3. Remove the 2 rear front seat track covers.
  4. Remove the 2 seat-to-floor nuts.
  5. Remove the 2 seat track front covers.
  6. Remove the 2 seat-to-floor bolts.
    7. NOTE: Some component connectors may have been previously disconnected or may not exist due to vehicle options.

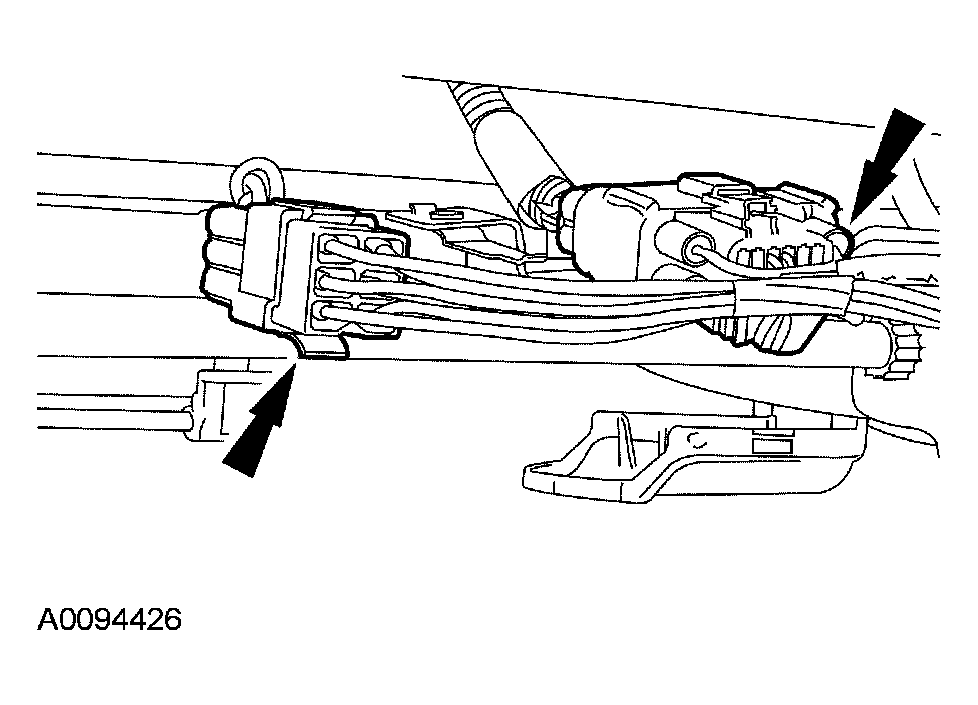

    Fig 1: Disconnecting Electrical Connectors
    G04585925Courtesy of FORD MOTOR CO.
  7. Disconnect the electrical connectors and detach the harness relief connector.
    8. CAUTION: Use care when handling the seat and track assembly. Dropping the assembly or sitting on a seat not secured in the vehicle may result in damaged components.
  8. Remove the seat from the vehicle.
