Removal and Installation

WARNING: This page is about a different car, the 2006 Mercury Grand Marquis and 2006 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  2. Remove the front door trim panel. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
  3. Remove the heated seat switch.
    1. Release the locking tabs.
    2. Disconnect the electrical connector.
    3. Remove the heated seat switch.

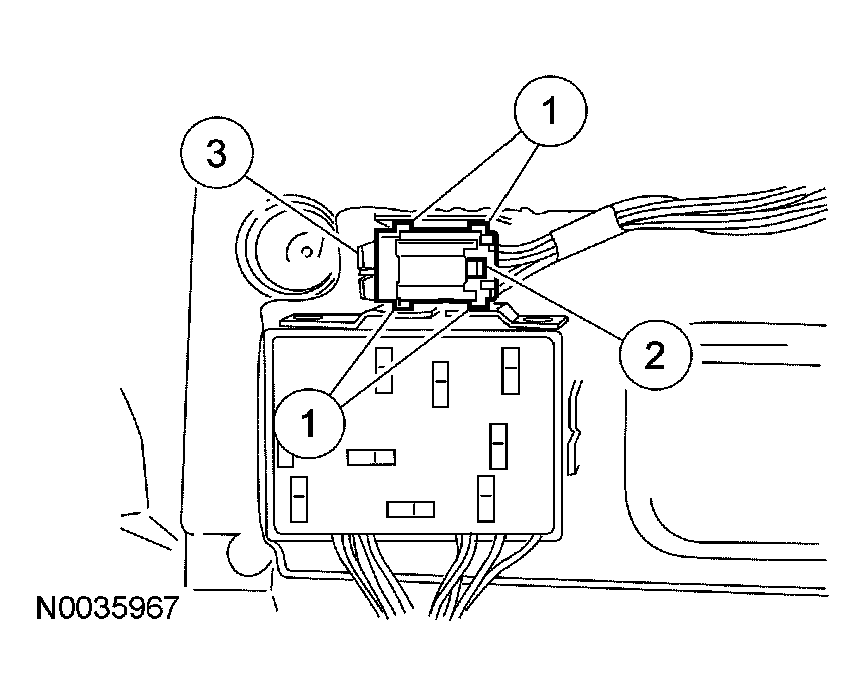

      Fig 1: Removing Heated Seat Switch
      G04585978Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
