Removal And Installation: Fender: Removal

WARNING: This page is about a different car, the 2006 Mercury Grand Marquis and 2006 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: The LH fender is shown, the RH fender is similar.
  1. The pin-type retainers are a one-time use item, and new pin-type retainers must be installed after removal.

    If equipped with an engine compartment lamp, remove the pin-type retainers and position the hood insulation aside.

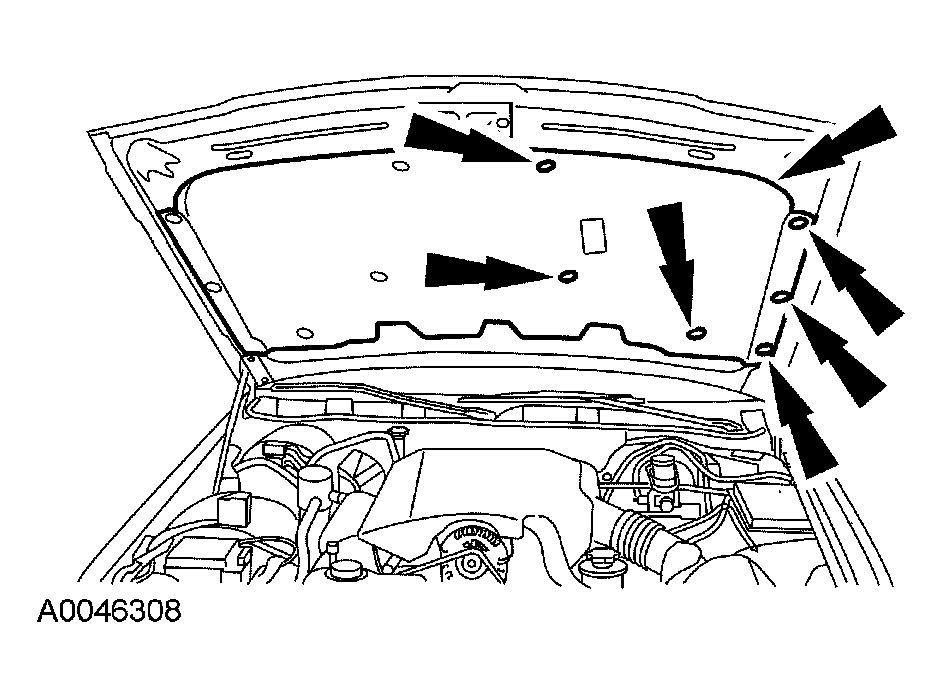

    Fig 1: Removing Pin-Type Retainers
    G04585761Courtesy of FORD MOTOR CO.
  2. If equipped, release the wiring harness locators and disconnect the engine compartment lamp electrical connector.
    3. NOTE: Two technicians needed to carry out this step.
    NOTE: Support the hood with a suitable hood support.
  3. Remove the hood.
    • Mark the hinge locations.
    • Remove the 4 hood hinge-to-hood bolts.
    4. WARNING: If equipped with fire suppression system, depower the system. For important safety warnings and procedures, refer to FIRE SUPPRESSION SYSTEM .
    WARNING: The electrical power to the air suspension system must be turned off prior to hoisting, jacking or towing an air suspension vehicle. Failure to do so can result in unexpected inflation or deflation of the air springs, which can result in shifting of the vehicle during these operations.
  4. Remove the front bumper cover. For additional information, refer to BUMPERS .
  5. Remove the fender splash shield. For additional information, refer to FENDER SPLASH SHIELD - LH  or FENDER SPLASH SHIELD - RH .
    6. NOTE: Slide the wiring trough forward to release the trough locator from the fender.
  6. Remove the 2 screws and position the wiring trough and the hood release cable aside.
  7. Remove the 2 ground wire bolts as required.
  8. Remove the pin-type retainer and loosen the rocker panel moulding.
  9. Remove the 2 rocker panel fender bolt.
  10. Remove the rear fender bolt.
  11. Remove the rear fender brace bolt.
  12. Remove the 2 upper rear fender bolts.
  13. Remove the 2 lower front fender bolts.
  14. Remove the fender lower brace bolt.
  15. Remove the 2 fender-to-radiator support bolts.
  16. Remove the radiator grille opening panel bolt.
  17. Remove the fender front bolt.
  18. Remove the fender radiator grille opening panel front bolt.
    19. NOTE: On the RH fender, an assistant is needed to support the fender when removing this bolt.
  19. Remove the fender rear inner bolt and the fender.
