Removal & Installation: G20: Inspection
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2000 Infiniti QX4, 2000 Infiniti Q45, 2000 Infiniti I30, 2000 Infiniti G20, and 1999 Infiniti QX4. However, it is still accessible from the selected car via links, so may be relevant.

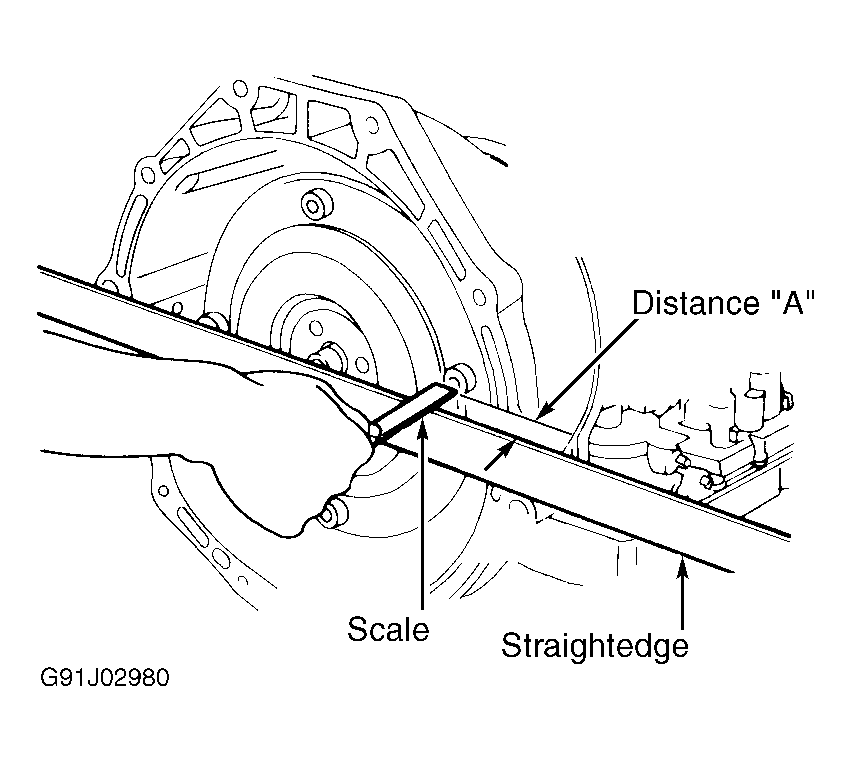

Check drive plate runout using dial indicator. If drive plate runout is greater than .008" (.20 mm), replace drive plate. To ensure correct assembly when connecting torque converter to transaxle, measure distance "A". See Figure . Distance "A" should be .63" (15.9 mm), minimum.
