Removal and Installation

WARNING: This page is about a different car, the 2006 Mercury Grand Marquis and 2006 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Cover the end of the tool with tape to prevent damage to the trim panel.

NOTE: Use a thin-bladed tool to remove the headlamp switch.

Remove the headlamp switch.
- Disconnect the electrical connectors.

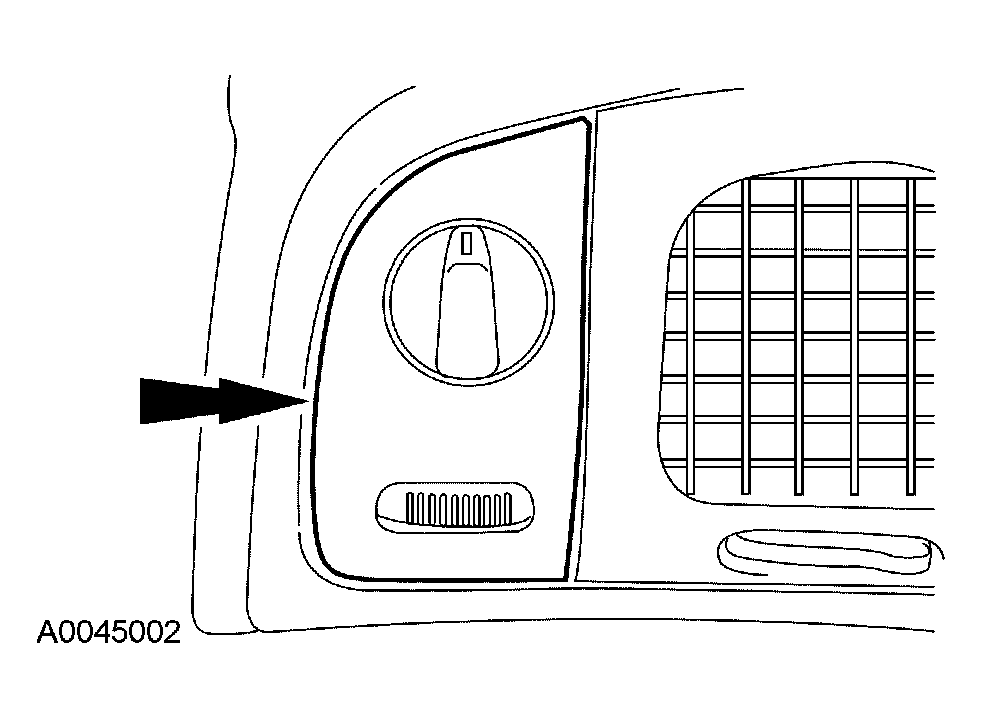

  Fig 1: Identifying Headlamp Switch And Bezel Assembly
  Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
