Removal and Installation

WARNING: This page is about a different car, the 2006 Mercury Grand Marquis and 2006 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: It is not necessary to remove the audio unit to retrieve the part number. For additional information, refer to AUDIO UNIT PART NUMBER RETRIEVAL .

Using the special tool, remove the audio unit.
- Disconnect the connectors and the antenna lead-in cable.

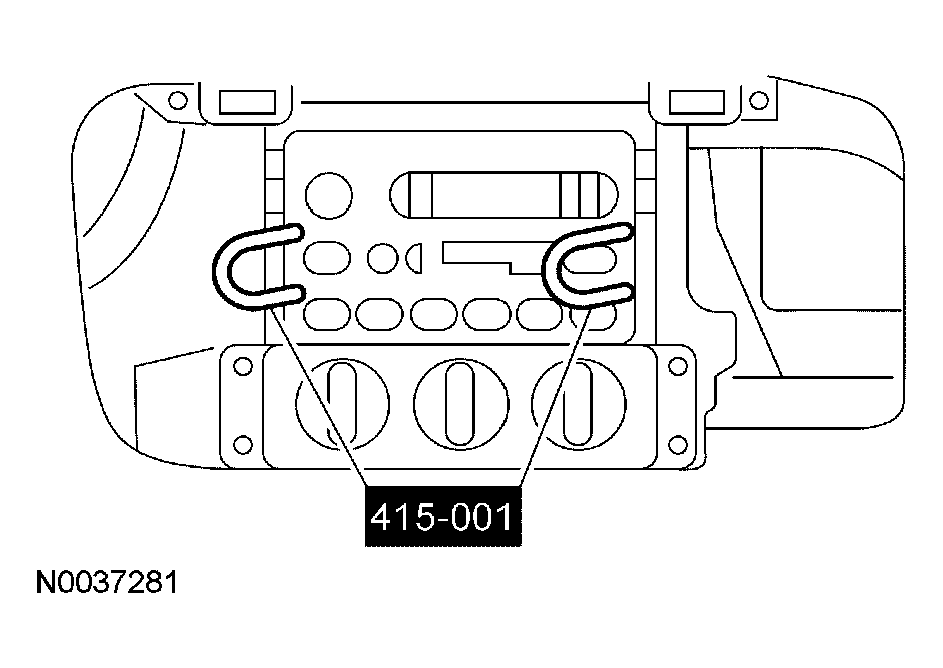

  Fig 1: Identifying Special Tools
  Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
