Bearing Clearance Check

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2003 Ford RV Cutaway, 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, and 2003 Ford Excursion. However, it is still accessible from the selected car via links, so may be relevant.

When bearing damage is suspected, verify using the following procedure.

Check Axial End Play

NOTE: Radial shaft movement cannot readily be measured on this turbocharger. Remove the exhaust back pressure valve from the turbocharger.

Position the dial indicator on the turbine end of the radial shaft and zero the indicator. See Fig 1.
Move the radial shaft back and forth by hand and record the reading.
If readings exceed specifications, replace the turbocharger.

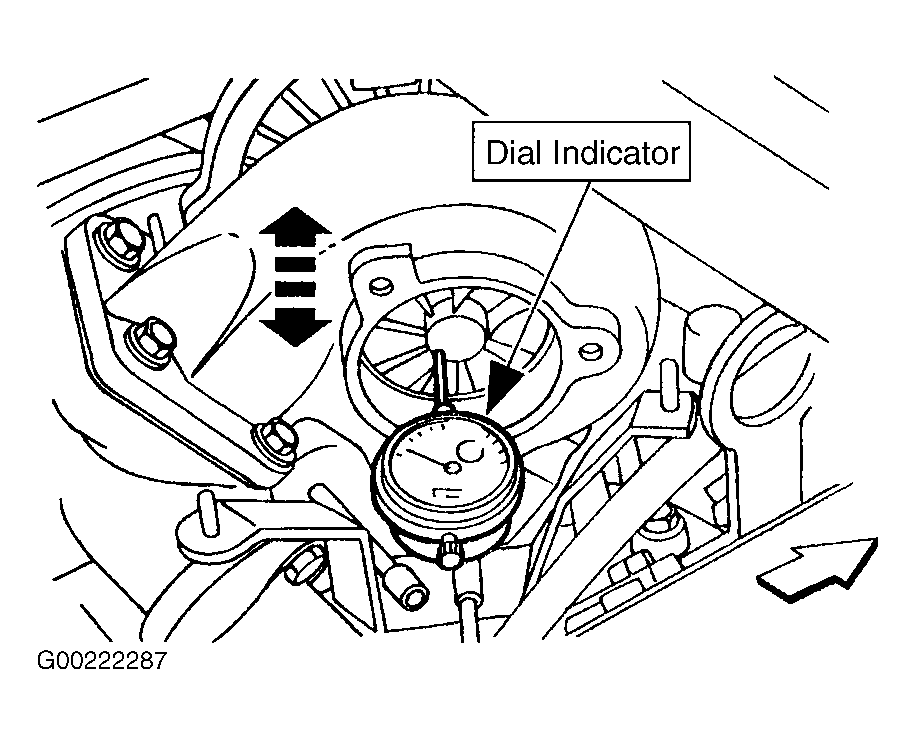

Fig 1: Measuring Turbocharger Axial End Play

Courtesy of FORD MOTOR CO.
