Removal and Installation

WARNING: This page is about a different car, the 2006 Mercury Grand Marquis and 2006 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: The instrument cluster lens and the mask are removed and installed as an assembly.
  1. Remove the instrument cluster. For additional information, refer to INSTRUMENT CLUSTER .
  2. Release the 6 black clips and remove the instrument cluster lens/mask assembly.

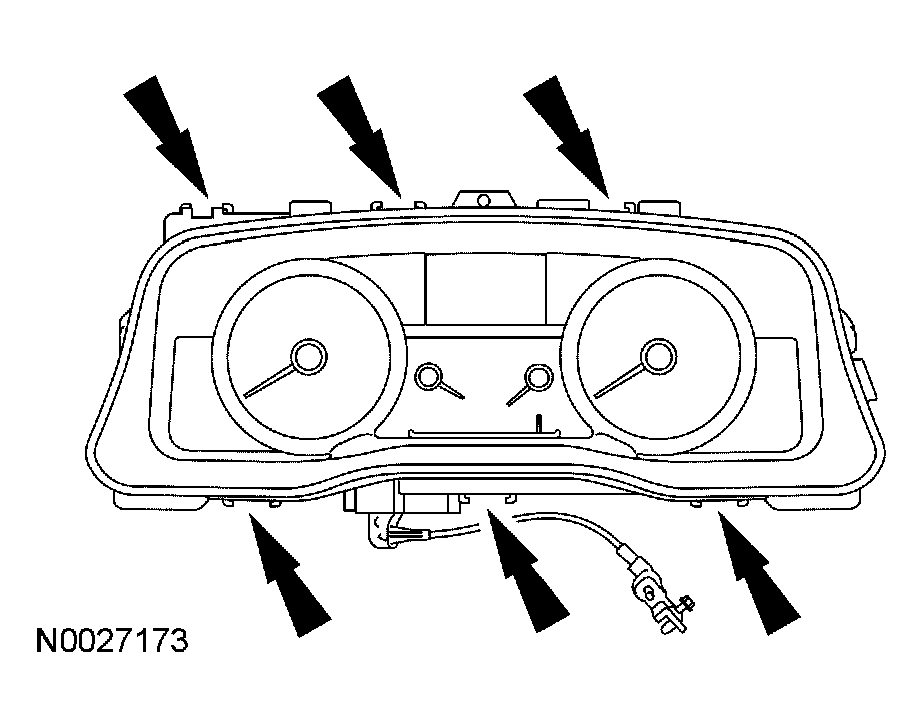

    Fig 1: Removing Instrument Cluster Lens/Mask Assembly
    G04585358Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
