Removal and Installation

WARNING: This page is about a different car, the 2006 Mercury Grand Marquis and 2006 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument cluster finish panel. For additional information, refer to INSTRUMENT PANEL AND CONSOLE .
  2. Disengage the tabs and remove the register.

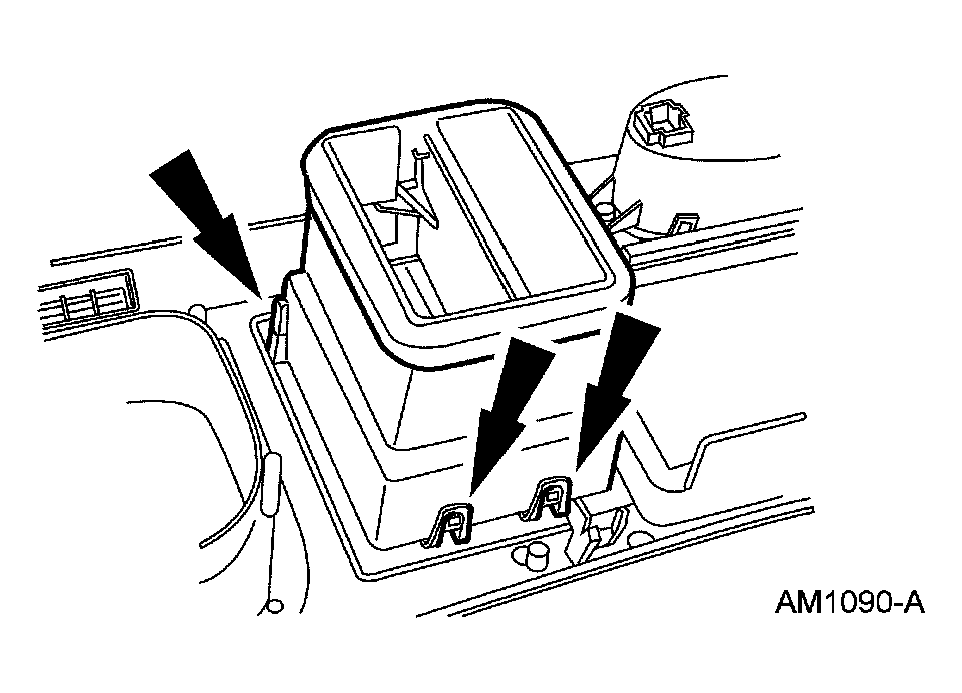

    Fig 1: Removing Driver Side Register
    G04585267Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
