Clutch and Clutch Field Coil: Removal

WARNING: This page is about a different car, the 2006 Mercury Grand Marquis and 2006 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the A/C compressor. For additional information, refer to AIR CONDITIONING (A/C) COMPRESSOR .
  2. Remove the A/C clutch disc and hub bolt.
    1. Hold the A/C clutch disc and hub with the special tool.
    2. Remove the A/C clutch disc and hub bolt.

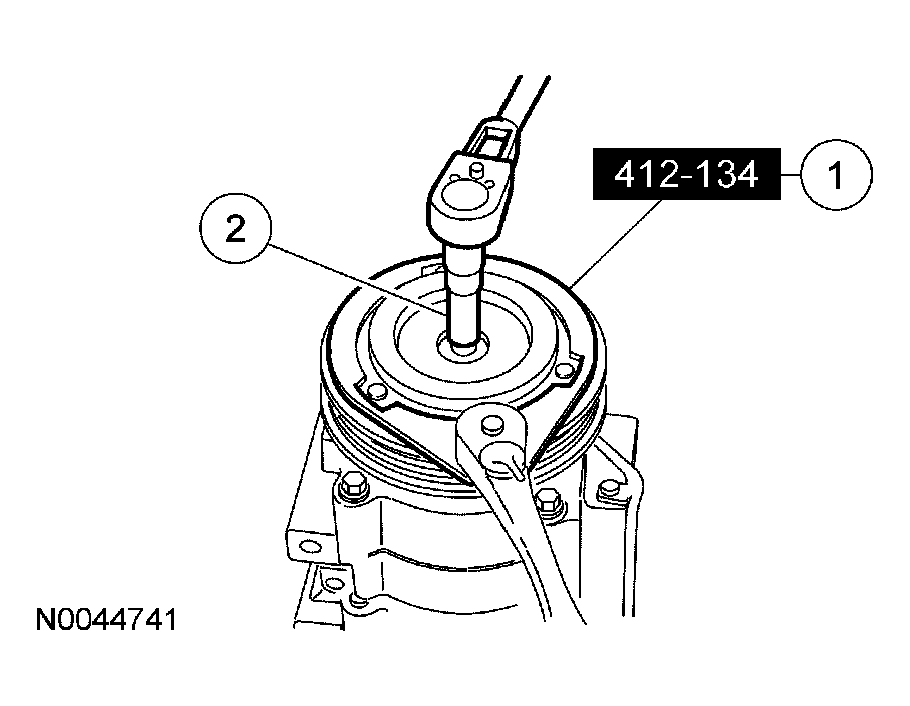

      Fig 1: Removing A/C Clutch Disc And Hub Bolt
      G04585235Courtesy of FORD MOTOR CO.
  3. Remove the A/C clutch disc and hub.
  4. Remove the A/C compressor pulley snap ring
  5. Remove the A/C compressor pulley.
    1. Install the special tool.
    2. Remove the A/C compressor pulley.

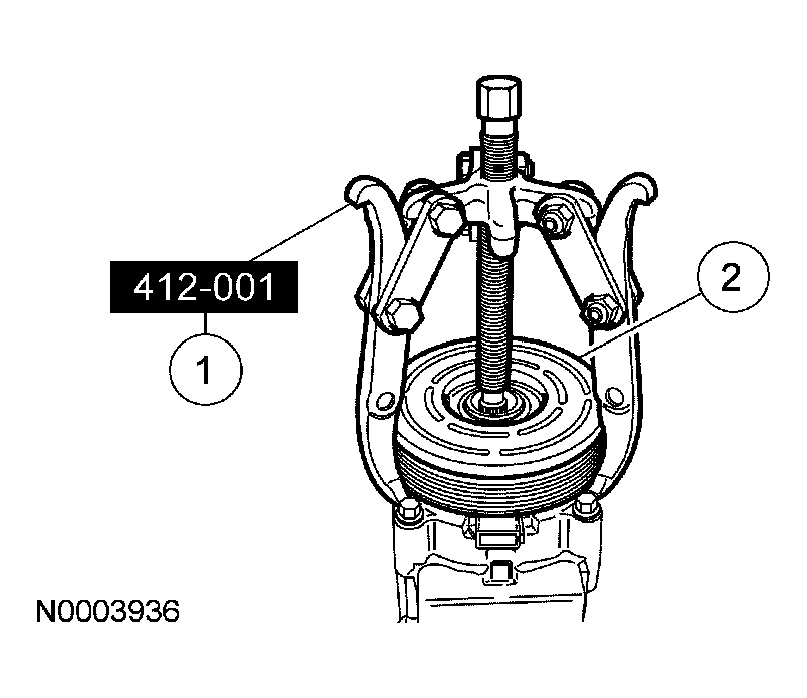

      Fig 2: Removing A/C Compressor Pulley
      G04585236Courtesy of FORD MOTOR CO.
    6. CAUTION: Do not use air tools. The A/C clutch field coil can be easily damaged.
  6. Remove the A/C clutch field coil.
    1. Install the special tool.
    2. Install the special tool.
    3. Remove the A/C clutch field coil.

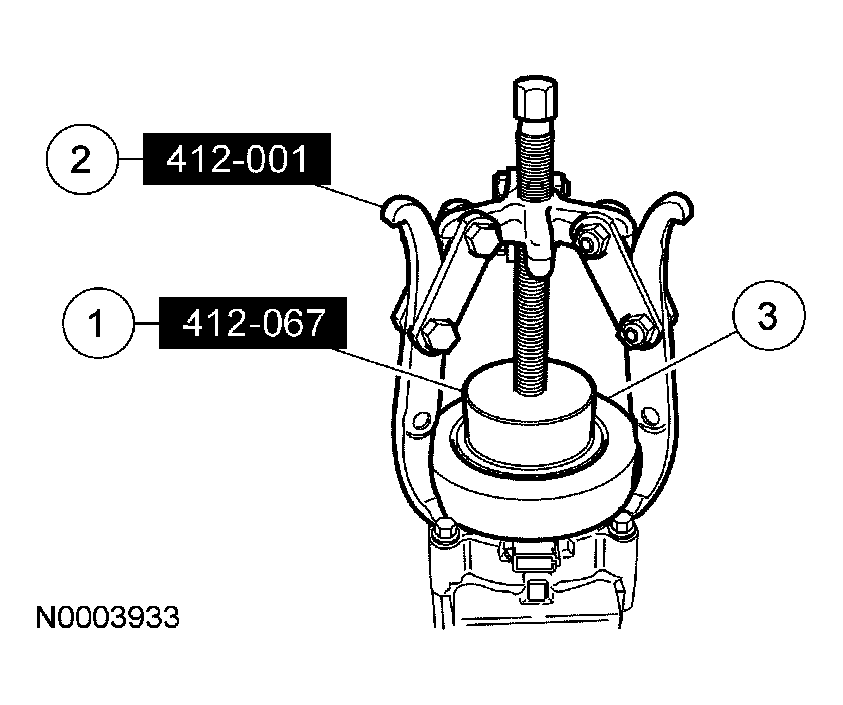

      Fig 3: Removing A/C Clutch Field Coil
      G04585237Courtesy of FORD MOTOR CO.
